描述

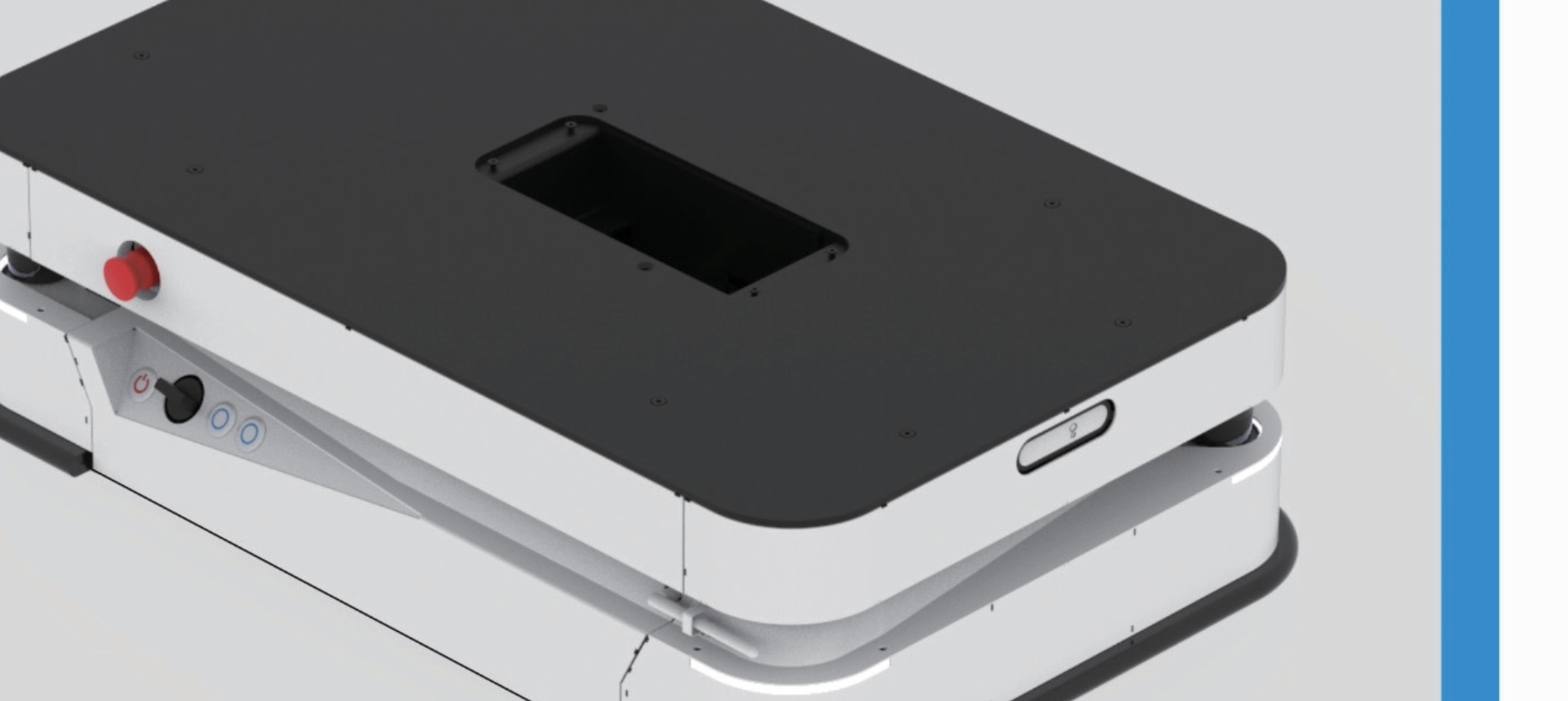

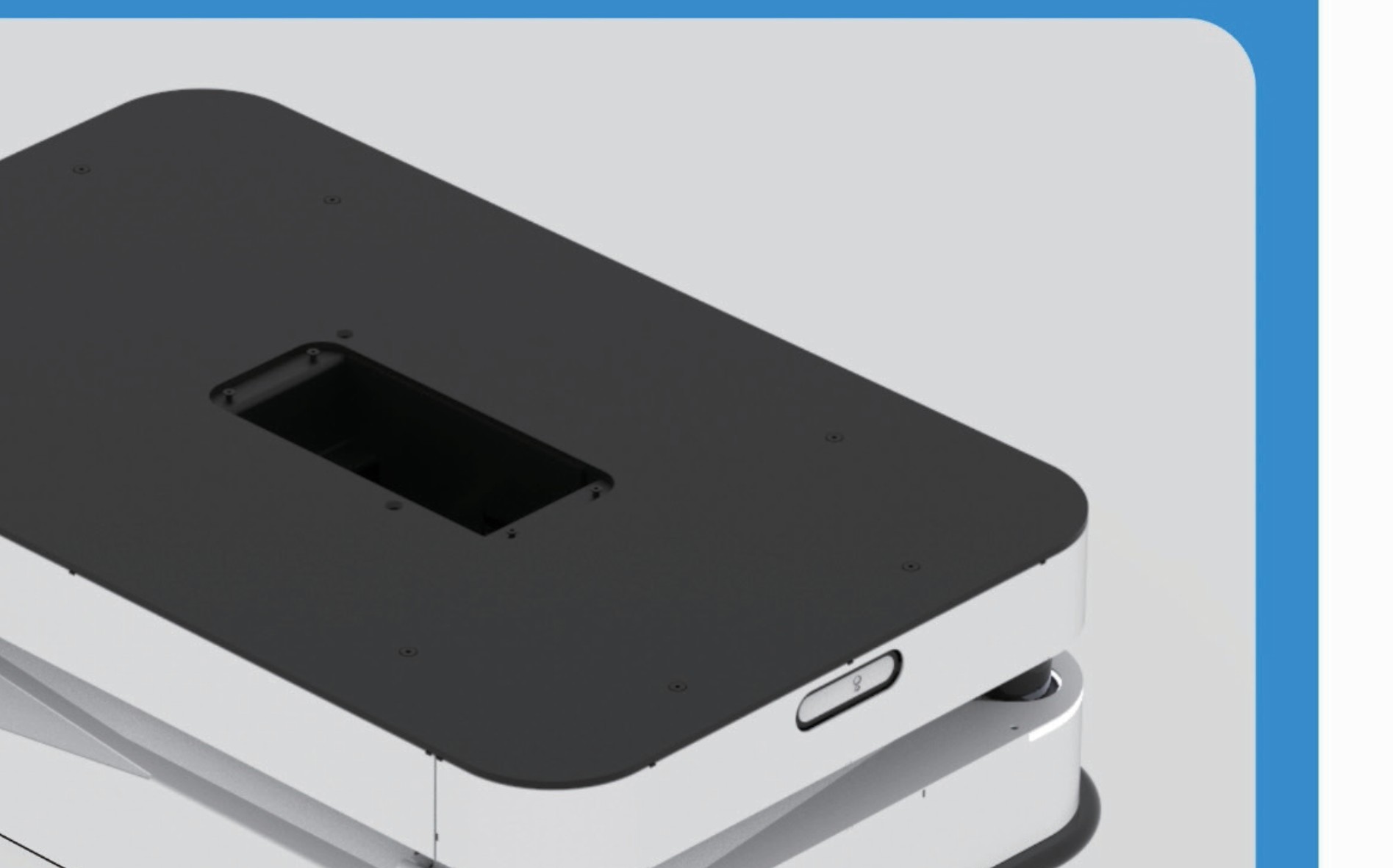

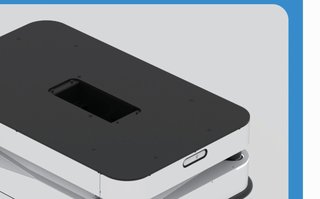

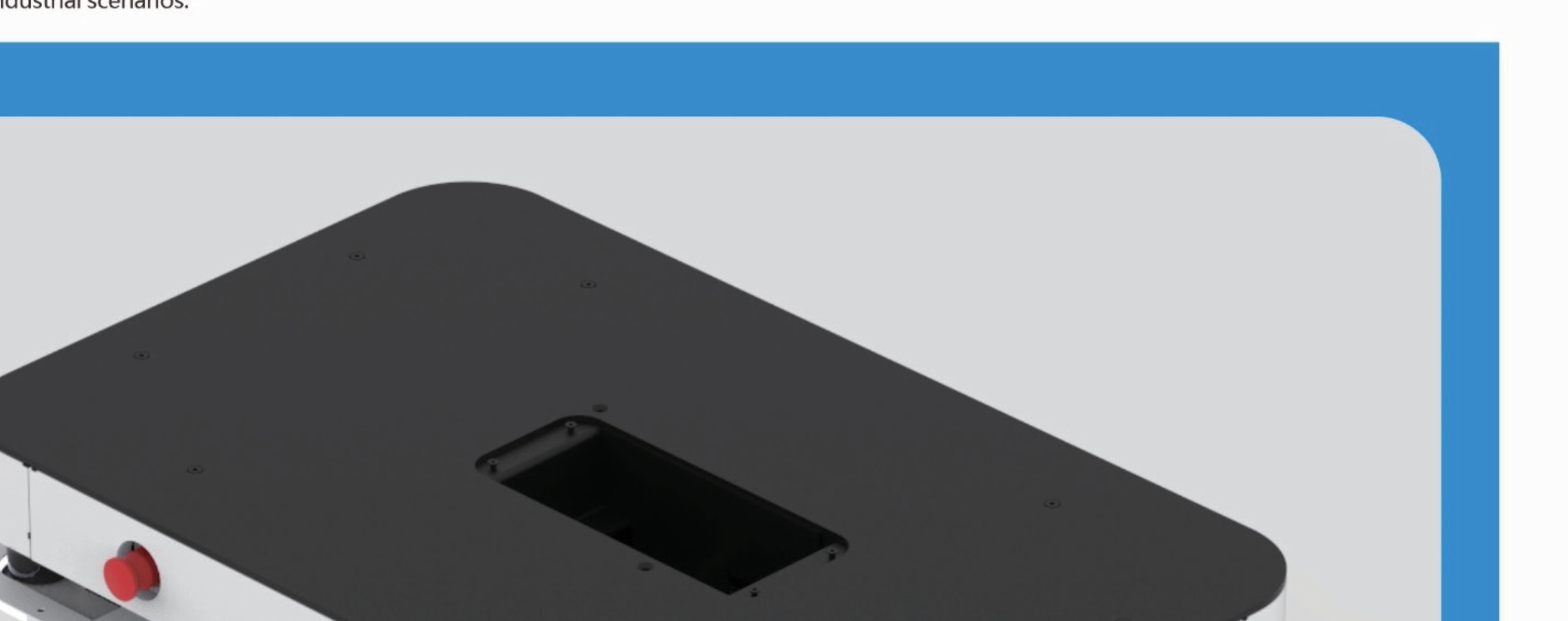

The heavy-load platform of the OSH range, rated at 200 kg against its own 90 kg net weight. An 800 mm-long but 500 mm-wide chassis needs only a 700 mm straight aisle, though 1,150 mm to turn around. Two-wheel differential drive with twin 360-degree LiDARs, which suits a long body whose tail sweeps wide. A 20 Ah pack still delivers about eight hours of full-payload continuous operation. Overall 800 x 500 x 250 mm.
功能特色
- Heavy-load platform rated at 200 kg, double any other OSH model and more than twice its own net weight
- longest chassis at 800 mm but the tightest straight navigation path at 700 mm
- the only two-wheel differential model fitted with twin 360-degree LiDARs
- overall dimensions 800 x 500 x 250 mm at 90 kg net weight with a 200 kg rated payload
- Two-wheel differential drive with swing arm suspension
- 700 mm straight and 1150 mm U-turn navigation path width
- 20 mm step climbing height and gap crossing, maximum climbing gradient under 5 percent
- 2 units, 360 degree field of view, mounted at approx. 180 mm
- 20 Ah battery giving approximately 8 hours of full-payload continuous operation at 25 A rated current
- LiDAR autonomous navigation with SLAM, depth perception and flexible obstacle avoidance
- global positioning accuracy of plus-minus 20 mm / 3 degrees, improving to plus-minus 5 mm / 1 degree over VL markers
- sensor suite of LiDAR, depth camera, ultrasonic, collision edge and IMU
- rated operating speed 1.5 m/s with a maximum navigation speed of 1.2 m/s and 120 degrees per second maximum angular velocity
- zero-radius turning
- DC 42-54.7 V system charging in about 2 hours, with at least 80 percent capacity retained after 1500 cycles
- manual and automatic docking charging
- Wi-Fi 802.11 a/b/g/n/ac with RJ45 Ethernet and USB-A, DC48V and E-Stop hardware interfaces
- ROS, ROS2, SDK and API software interfaces
- body buttons for mode switch, pause-resume, reset and emergency stop
- IP20 protection, 5 to 40 degrees Celsius, 10-95 percent RH non-condensing, requiring hard flat floors free of water, oil or dust
技術規格
| 物理參數 | |
| 重量 | 90 kg |
|---|---|
| 外形尺寸 | L 800 mm × W 500 mm × H 250 mm |
| 負載 | 200 kg |
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 速度 | 5.4 km/h |
| 作業環境 | Indoor, hard flat floors free of water, oil or dust; 5 to 40 degrees Celsius, IP20, 5°C to 40°C |
| 致動器 | Two-wheel differential drive with swing arm suspension and zero-radius turning |
| 電源與續航 | |
| 續航時間 | ~8 h |
| 感知與計算 | |
| 感測器 | LiDAR, depth camera, ultrasonic sensors, collision edge sensor, IMU |
| 連線方式 | Wi-Fi 802.11 a/b/g/n/ac; RJ45 Ethernet; USB-A |
| 軟體 / AI | LiDAR autonomous navigation with SLAM and multi-sensor fusion; ROS, ROS2, SDK and API interfaces |
技術規格
| 物理參數 | |
| 重量 | 90 kg |
|---|---|
| 外形尺寸 | L 800 mm × W 500 mm × H 250 mm |
| 負載 | 200 kg |
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 速度 | 5.4 km/h |
| 作業環境 | Indoor, hard flat floors free of water, oil or dust; 5 to 40 degrees Celsius, IP20, 5°C to 40°C |
| 致動器 | Two-wheel differential drive with swing arm suspension and zero-radius turning |
| 電源與續航 | |
| 續航時間 | ~8 h |
| 感知與計算 | |
| 感測器 | LiDAR, depth camera, ultrasonic sensors, collision edge sensor, IMU |
| 連線方式 | Wi-Fi 802.11 a/b/g/n/ac; RJ45 Ethernet; USB-A |
| 軟體 / AI | LiDAR autonomous navigation with SLAM and multi-sensor fusion; ROS, ROS2, SDK and API interfaces |
圖片
martti
martti
martti
martti圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the Woosh OSH200-DIFF-S?
The heavy-load platform of the OSH range, rated at 200 kg against its own 90 kg net weight. An 800 mm-long but 500 mm-wide chassis needs only a 700 mm straight aisle, though 1,150 mm to turn around. Two-wheel differential drive with twin 360-degree LiDARs, which suits a long body whose tail sweeps wide.
Who makes the Woosh OSH200-DIFF-S?
The Woosh OSH200-DIFF-S is made by Woosh Innovation, a robotics company based in China.
How much does the Woosh OSH200-DIFF-S cost?
Woosh Innovation has not publicly announced pricing for the Woosh OSH200-DIFF-S. You can enquire through RobotAIGeek for current pricing.
What is the Woosh OSH200-DIFF-S used for?
The Woosh OSH200-DIFF-S is designed for 研究, 運輸, indoor logistics and point-to-point material transfer, and production line and warehouse logistics. It is used in 研究, 物流, 製造業, and 零售 settings.
What is the payload capacity of the Woosh OSH200-DIFF-S?
The Woosh OSH200-DIFF-S has a payload capacity of 200 kg.
How much does the Woosh OSH200-DIFF-S weigh?
The Woosh OSH200-DIFF-S weighs 90 kg.
How fast is the Woosh OSH200-DIFF-S?
The Woosh OSH200-DIFF-S can move at speeds of up to 5.4 km/h.
What is the battery life of the Woosh OSH200-DIFF-S?
The Woosh OSH200-DIFF-S runs for ~8 h on a charge.
