描述

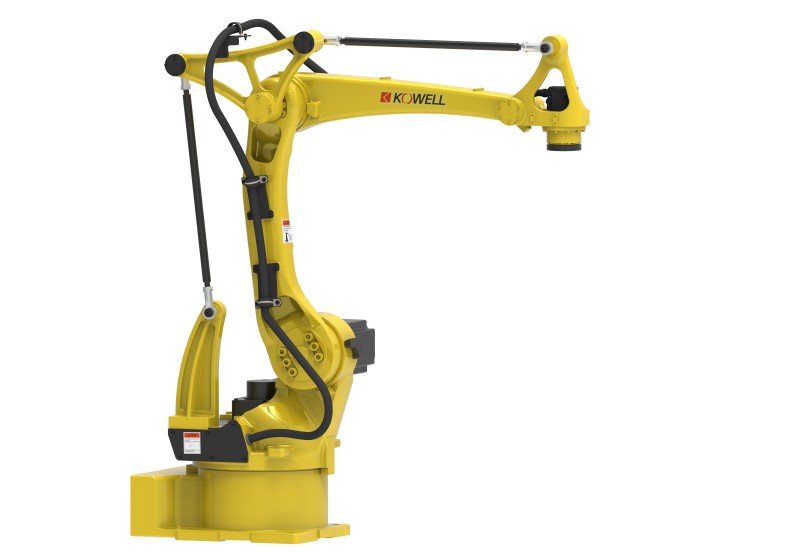

A four axis robot arm with a payload of 10KG and a working radius of up to 1500mm. Widely applicable to work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, it is used in various industries such as food, beverage, building materials, and logistics. Advantages and features: high precision, fast speed, simple and convenient operation; Fully automated operation saves labor costs; Equipped with a safe and reliable emergency stop button; Lightweight design, small footprint.
功能特色
- Vertically articulated four-axis arm rated 10 kg payload with a 1,500 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 165 kg.
- Power capacity 3.0 kVA
- protection rated equivalent to IP56/IP67.
- Mounts floor standing, bracket standing or inverted (hanging).
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- Robotic palletizer KW1010M-1500 a four axis robot arm with a payload of 10KG and a working radius of up to 1500mm. Widely applicable to work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, it is used in various industries such as food, beverage,...

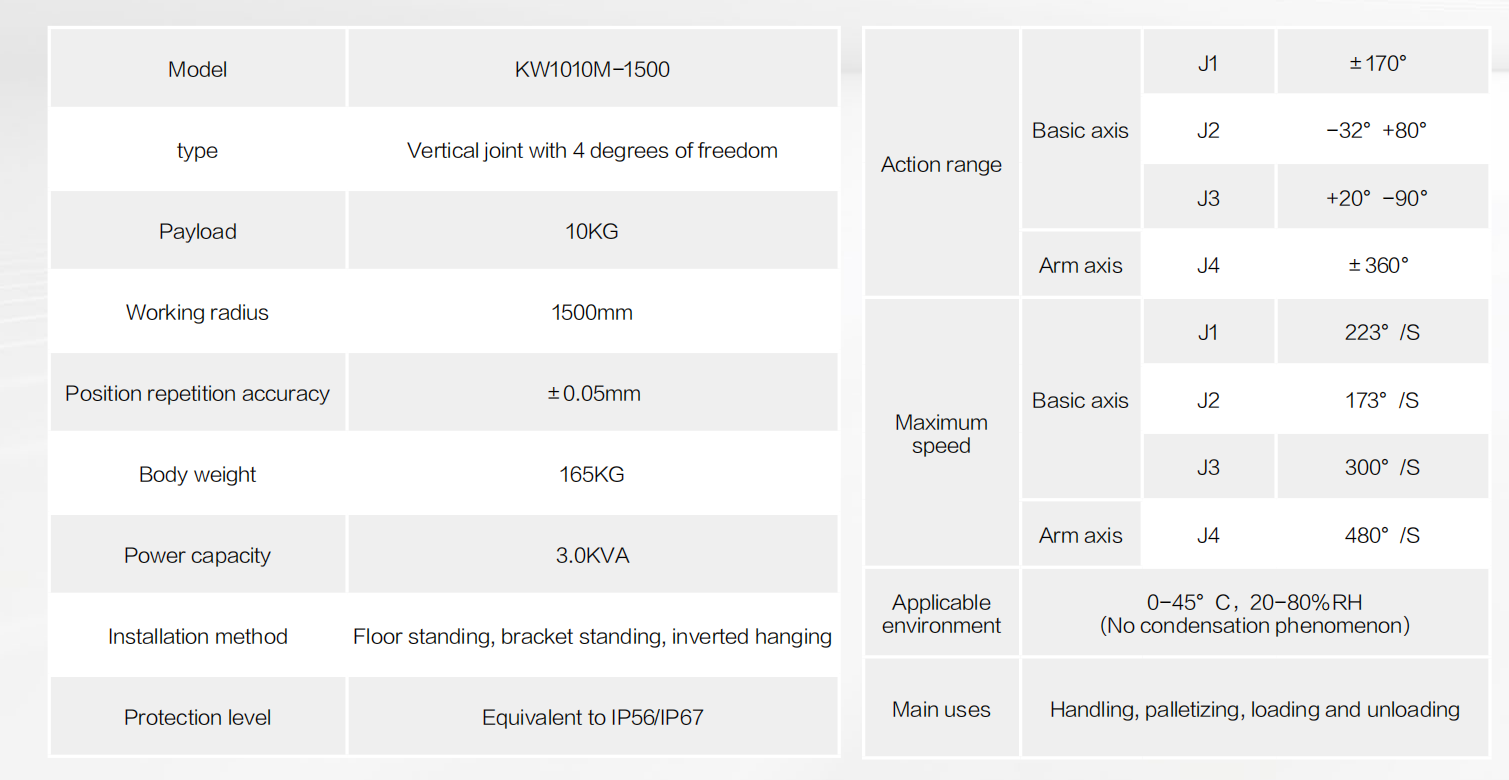

技術規格
已驗證| 物理參數 | |
| 重量 | 165 kg |
|---|---|
| 負載 | 10 kg |
| 臂展 | 1.5 m |
| 重複定位精度 | ±0.05 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 4 |
| 作業環境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
技術規格
已驗證| 物理參數 | |
| 重量 | 165 kg |
|---|---|
| 負載 | 10 kg |
| 臂展 | 1.5 m |
| 重複定位精度 | ±0.05 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 4 |
| 作業環境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
圖片
martti
martti
martti圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the Robotic palletizer KW1010M-1500?
A four axis robot arm with a payload of 10KG and a working radius of up to 1500mm. Widely applicable to work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, it is used in various industries such as food, beverage, building materials, and logistics.
Who makes the Robotic palletizer KW1010M-1500?
The Robotic palletizer KW1010M-1500 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Robotic palletizer KW1010M-1500 cost?
Shandong Kewei Robot has not publicly announced pricing for the Robotic palletizer KW1010M-1500. You can enquire through RobotAIGeek for current pricing.
What is the Robotic palletizer KW1010M-1500 used for?
The Robotic palletizer KW1010M-1500 is designed for 物料搬運 and 托盤化. It is used in 物流 and 製造業 settings.
What is the payload capacity of the Robotic palletizer KW1010M-1500?
The Robotic palletizer KW1010M-1500 has a payload capacity of 10 kg and a reach of 1.5 m.
How much does the Robotic palletizer KW1010M-1500 weigh?
The Robotic palletizer KW1010M-1500 weighs 165 kg.
How many degrees of freedom does the Robotic palletizer KW1010M-1500 have?
The Robotic palletizer KW1010M-1500 has 4 degrees of freedom.
