Peitian AIR280-2700

Peitian Robot
Industrial-RobotChinaChina已發布
Peitian AIR280-2700
比較
來源：
cdn.robotaigeek.com
行業：
研究製造業
用途：
組裝拾放Loading and unloadinghandlingpalletisinginjection mouldingweldinggrinding and polishingdispensingpacking
價格：
尚未公布

描述

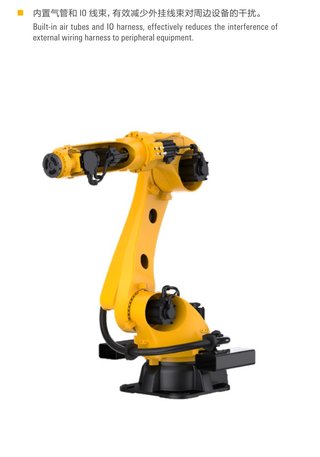

The AIR280-2700 is a large-payload six-axis articulated arm from Peitian's AIR range, carrying 280 kg to a reach of 2707 mm. Peitian quotes position repeatability of ±0.06mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 1225 kg. It is sealed to IP54(Wrist: IP65), and can be mounted Floor. It runs on Peitian's ARC5-280 controller cabinet.

功能特色

  • Large-payload six-axis industrial robot arm
  • Rated payload 280 kg
  • Maximum reach 2707 mm
  • Manipulator weight 1225 kg
  • Position repeatability ±0.06mm
  • Ingress protection IP54(Wrist: IP65)
  • Mounting: Floor
  • Compatible controller cabinets: ARC5-280
  • Working range Axis 1 rotation -180°/+180°
  • Axis 2 arm -60°/+85°
  • Axis 3 arm -110°/+170°
  • Axis 4 wrist -200°/+200°
  • Axis 5 bend -135°/+135°
  • Axis 6 turn -360°/+360°
  • Rotation rate Axis 1 rotation 120°/s
  • Axis 2 arm 100°/s
  • Axis 3 arm 100°/s
  • Axis 4 wrist 175°/s
  • Axis 5 bend 168°/s
  • Axis 6 turn 270°/s
  • Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
  • No corrosive, flammable or explosive gases permitted in the operating environment

技術規格

物理參數
重量1225 kg
負載280 kg
臂展2.71 m
移動能力
移動類型文具
自由度6
操作能力高
作業環境Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases
致動器6-axis large-payload six-axis manipulator, mounted Floor
感知與計算
軟體 / AIDriven by Peitian ARC5-280 controller cabinets
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。

常見問題

What is the Peitian AIR280-2700?

The AIR280-2700 is a large-payload six-axis articulated arm from Peitian's AIR range, carrying 280 kg to a reach of 2707 mm. Peitian quotes position repeatability of ±0.06mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.

Who makes the Peitian AIR280-2700?

The Peitian AIR280-2700 is made by Peitian Robot, a robotics company based in China.

How much does the Peitian AIR280-2700 cost?

Peitian Robot has not publicly announced pricing for the Peitian AIR280-2700. You can enquire through RobotAIGeek for current pricing.

What is the Peitian AIR280-2700 used for?

The Peitian AIR280-2700 is designed for 組裝, 拾放, loading and unloading, and handling. It is used in 研究 and 製造業 settings.

What is the payload capacity of the Peitian AIR280-2700?

The Peitian AIR280-2700 has a payload capacity of 280 kg and a reach of 2.71 m.

How much does the Peitian AIR280-2700 weigh?

The Peitian AIR280-2700 weighs 1,225 kg.

How many degrees of freedom does the Peitian AIR280-2700 have?

The Peitian AIR280-2700 has 6 degrees of freedom.
