Guoxing RXR-YM100000D

Shandong Guoxing Intelligent Technology
Mobile-RobotsChinaChina已發布
Guoxing RXR-YM100000D
比較
來源：
gxsuprobot.com
行業：
能源製造業安全
用途：
檢查監測Basement, tunnel and underground facility fires needing forced ventilationlarge-span factory firespetrochemical firesdust removal and cooling
價格：
尚未公布

描述

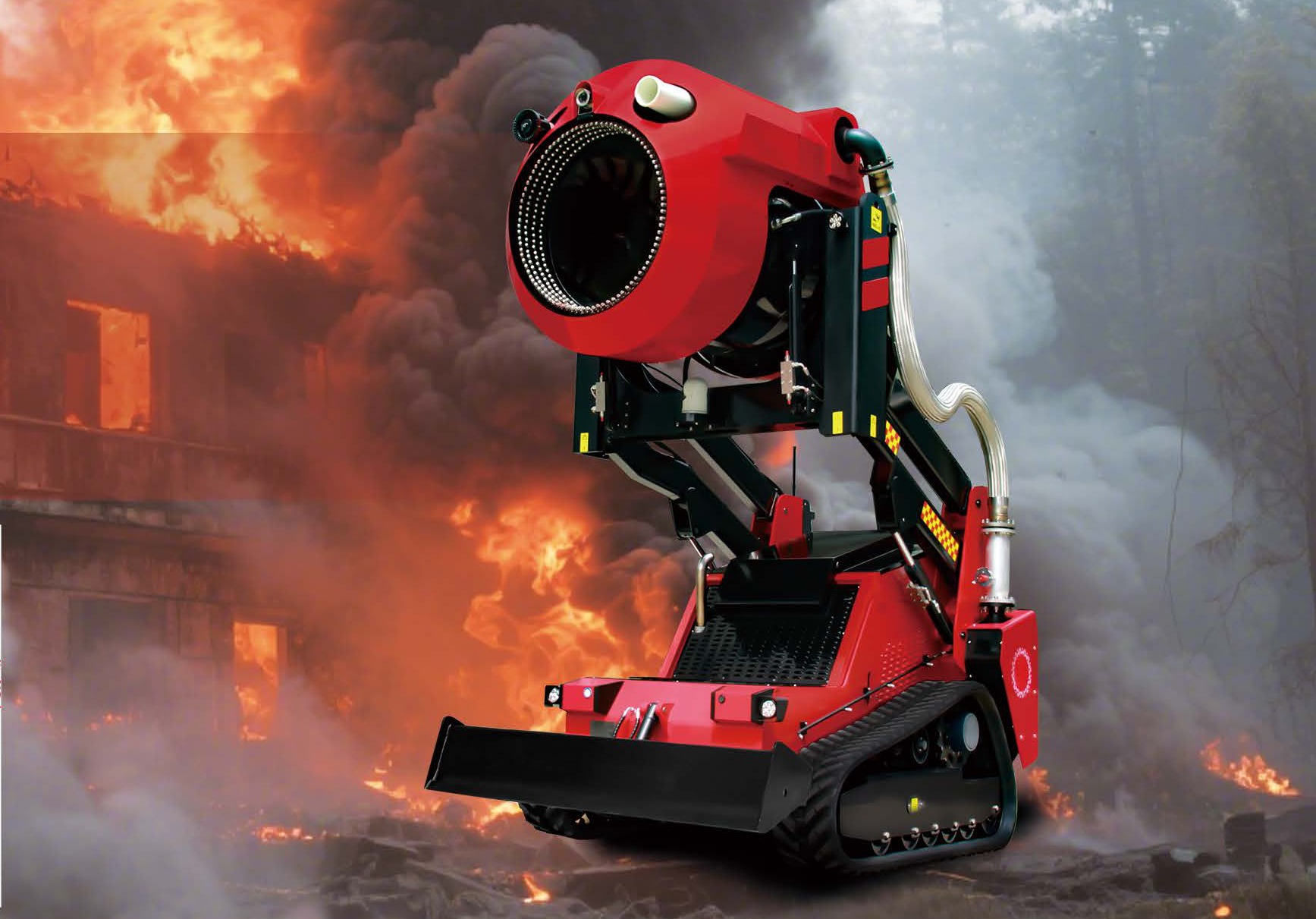

The RXR-YM100000D is the heavy ventilator of the range and the largest machine Guoxing lists at 4.5 tonnes. Its hydraulically driven lifting wind cannon exhausts more than 100,000 cubic metres of air an hour and raises 1.5 metres, so it can be aimed into a doorway, a stairwell or a basement vent rather than only along the ground — Guoxing calls this multidimensional firefighting and smoke exhaustion, with an independent water inlet so the cannon is unaffected by water pressure. The same machine sprays, waters or foams for cooling and dust removal at 80 L/s to 80 metres with a fine water mist at 8 L/s. Its chassis walking track is embedded with metal bones on a triangular track-type carrier for stability, it steers a full 360 degrees in place, and a push shovel on the front clears obstacles out of the way in complex fire scenes. Cooling is dual-form, air and water together, for the diesel engine and hydraulic oil.

功能特色

  • Liftable wind cannon with an exhaust volume of 100,000 m³/h or more, raising 1.5 metres or more
  • Up to 3100 x 1900 x 2600 mm and up to 4500 kg, the largest machine in the range
  • Hydraulically driven fan for high transmission efficiency, low heat generation and low noise
  • Fire water cannon at 80 L/s or more with a maximum range of 80 metres or more, water and foam dual-use
  • Fine water mist flow rate of 8 L/s or more
  • water supply pressure 1.0 MPa or more
  • Air cannon pitch from -10 to +60 degrees
  • Chassis walking track embedded with metal bones on a triangular track-type carrier mechanism for stability
  • Steering rotates 360 degrees in place
  • Front push shovel device for obstacle clearance in complex fire scenes
  • Climbing angle of 60% or more and side tilt stability angle of 30 degrees or more
  • Traction force and obstacle clearing ability of 25 kN or more
  • obstacle crossing height 250 mm or more
  • Driving speed of 1.5 m/s or more
  • braking distance 0.3 m or less
  • straight running deviation 3% or less
  • Dual-form cooling using both air and water for the diesel engine and hydraulic oil system
  • Multiple sets of self-spraying cooling devices for spraying, watering or foaming separately
  • Four LED high-power lighting lamps at the front
  • sound and light alarms
  • gas detector
  • Onboard panel and wireless remote control at a distance of 1 km

技術規格

物理參數
重量4500 kg
外形尺寸L 3.1 m × W 1.9 m × H 2.6 m
移動能力
移動類型其他
速度5.4 km/h
作業環境Smoke-logged basements, tunnels and large industrial buildings
致動器ATV hydraulic rubber track chassis with a triangular track-type carrier, a hydraulically driven liftable wind cannon and a front push shovel
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。

常見問題

What is the Guoxing RXR-YM100000D?

The RXR-YM100000D is the heavy ventilator of the range and the largest machine Guoxing lists at 4.5 tonnes. Its hydraulically driven lifting wind cannon exhausts more than 100,000 cubic metres of air an hour and raises 1.5 metres, so it can be aimed into a doorway, a stairwell or a basement vent rather than only along…

Who makes the Guoxing RXR-YM100000D?

The Guoxing RXR-YM100000D is made by Shandong Guoxing Intelligent Technology, a robotics company based in China.

How much does the Guoxing RXR-YM100000D cost?

Shandong Guoxing Intelligent Technology has not publicly announced pricing for the Guoxing RXR-YM100000D. You can enquire through RobotAIGeek for current pricing.

What is the Guoxing RXR-YM100000D used for?

The Guoxing RXR-YM100000D is designed for 檢查, 監測, basement, tunnel and underground facility fires needing forced ventilation, and large-span factory fires. It is used in 能源, 製造業, and 安全 settings.

How much does the Guoxing RXR-YM100000D weigh?

The Guoxing RXR-YM100000D weighs 4,500 kg.

How fast is the Guoxing RXR-YM100000D?

The Guoxing RXR-YM100000D can move at speeds of up to 5.4 km/h.
