描述
ECART 5是Oppent的Industrial-Robot。 面向內部物流、物料搬運、運輸設計。 關鍵數據：235 kg、續航 300 分鐘、負載 400 kg。

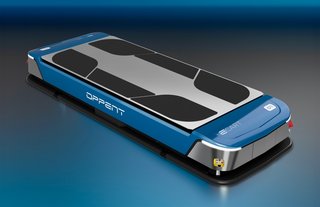

ECART 5 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. Only 230 mm tall and 560 mm wide, it is the lowest ECART, built to pass under low hospital trolleys and carry up to 400 kg.\nPer its datasheet it measures 1,600 x 560 x 230 mm, weighs 235 kg without batteries and carries 400 kg nominal (500 kg maximum) on lift platform 1,160 x 500 mm, 60 mm stroke. It uses diamond-layout, bidirectional drive (2 x 600 W), travels at up to 1.0 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 5 hours on a LiFePO4 24 V 50 Ah battery with 2 h recharge. Safety comes from 2 Sick S300 laser scanners, front/rear sensitive edges, 2 e-stops, Sick Flexi safety controller; 360 deg field for boxes, 180+180 deg for trolleys, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.
功能特色
- Nominal payload 400 kg
- maximum 500 kg
- Equipment: lift platform 1,160 x 500 mm, 60 mm stroke
- Size 1,600 x 560 x 230 mm
- 235 kg without batteries
- Drive: diamond-layout, bidirectional drive (2 x 600 W)
- max speed 1.0 m/s
- slopes up to 3%
- Battery: LiFePO4 24 V 50 Ah
- about 5 h autonomy, 2 h recharge
- Safety: 2 Sick S300 laser scanners, front/rear sensitive edges, 2 e-stops, Sick Flexi safety controller
- 360 deg field for boxes, 180+180 deg for trolleys
- E-glass shell
- Natural navigation by laser scanner (odometric closed loop)
- map acquired automatically by the robot
- Positioning accuracy +/-10 mm and +/-1 deg
- turns on its own axis
- Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
- Indoor use +5 to 35 C, 30-80% RH
- IP degree 13 (datasheet)
- Stainless steel (AISI 304) chassis
- complies with Machinery Directive and ISO 3691-4:2020
技術規格
已驗證| 物理參數 | |
| 重量 | 235 kg |
|---|---|
| 外形尺寸 | L 1.6 m × W 560 mm × H 230 mm |
| 負載 | 400 kg |
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 速度 | 3.6 km/h |
| 作業環境 | Indoor hospitals and factories (+5 to 35 C) |
| 電源與續航 | |
| 續航時間 | 300 min |
| 感知與計算 | |
| 感測器 | Sick laser scanners (navigation and safety), sensitive safety edges |
| 連線方式 | Wi-Fi 802.11a/b/g/n (2.4/5 GHz) |
機器人論壇
正在載入論壇...
技術規格
已驗證| 物理參數 | |
| 重量 | 235 kg |
|---|---|
| 外形尺寸 | L 1.6 m × W 560 mm × H 230 mm |
| 負載 | 400 kg |
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 速度 | 3.6 km/h |
| 作業環境 | Indoor hospitals and factories (+5 to 35 C) |
| 電源與續航 | |
| 續航時間 | 300 min |
| 感知與計算 | |
| 感測器 | Sick laser scanners (navigation and safety), sensitive safety edges |
| 連線方式 | Wi-Fi 802.11a/b/g/n (2.4/5 GHz) |
圖片
martti
圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the ECART 5?
ECART 5 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. Only 230 mm tall and 560 mm wide, it is the lowest ECART, built to pass under low hospital trolleys and carry up to 400 kg.\nPer its datasheet it measures 1,600 x 560 x 230 mm, weighs 235 kg without batteries and carries 400 kg nom…
Who makes the ECART 5?
The ECART 5 is made by Oppent, a robotics company based in Italy.
How much does the ECART 5 cost?
Oppent has not publicly announced pricing for the ECART 5. You can enquire through RobotAIGeek for current pricing.
What is the ECART 5 used for?
The ECART 5 is designed for 內部物流, 物料搬運, 運輸, and intralogistics. It is used in 醫療保健, 物流, and 製造業 settings.
What is the payload capacity of the ECART 5?
The ECART 5 has a payload capacity of 400 kg.
How much does the ECART 5 weigh?
The ECART 5 weighs 235 kg.
How fast is the ECART 5?
The ECART 5 can move at speeds of up to 3.6 km/h.
What is the battery life of the ECART 5?
The ECART 5 runs for about 300 minutes on a charge.
