描述

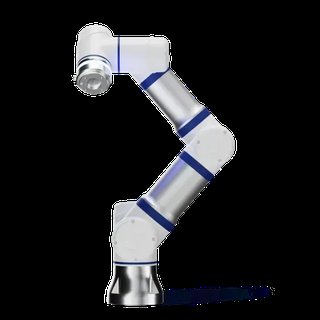

Compact 3 kg payload cobot with a 624 mm reach and ±0.02 mm repeatability for light assembly, machine tending, and pick-and-place.
功能特色
- 3 kg payload with a 624 mm working radius, ±0.02 mm repeatability and 2.0 m/s TCP speed. 31 safety functions (PL d Cat. 3 for SF01-SF30, PL b Cat. 1 for SF31)
- certified to UL, CE and KCs with ISO 13849, ISO 10218 and ISO/TS 15066
- ISO 14644 cleanroom class 5, RoHS and SEMI-S2 rated
- graphical programming with an expandable UI supporting custom plugins and application wizards
- multi-protocol compatibility with PNP/NPN switch mode
- high ingress protection.
技術規格
已驗證| 物理參數 | |
| 負載 | 3 kg |
|---|---|
| 臂展 | 624 mm |
| 重複定位精度 | ±0.02 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 操作能力 | 中 |
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。
技術規格
已驗證| 物理參數 | |
| 負載 | 3 kg |
|---|---|
| 臂展 | 624 mm |
| 重複定位精度 | ±0.02 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 操作能力 | 中 |
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。
圖片
martti
Jul 13
marttiJul 13
marttiJul 13
marttiJul 13
marttiJul 13
marttiJul 13
圖片貢獻
martti6 張圖片
機器人論壇
正在載入論壇...
評分
暫無評分。
常見問題
What is the CS63?
Compact 3 kg payload cobot with a 624 mm reach and ±0.02 mm repeatability for light assembly, machine tending, and pick-and-place.
Who makes the CS63?
The CS63 is made by Elite Robots, a robotics company based in China.
How much does the CS63 cost?
Elite Robots has not publicly announced pricing for the CS63. You can enquire through RobotAIGeek for current pricing.
What is the CS63 used for?
The CS63 is designed for 組裝, 配發, 機台操作, and 物料搬運. It is used in 汽車, 電子產品, 能源, and 物流 settings.
What is the payload capacity of the CS63?
The CS63 has a payload capacity of 3 kg and a reach of 624 mm.
When was the CS63 released?
The CS63 was released in 2022.
