描述

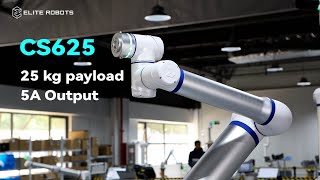

Heavy-duty 25 kg cobot arm with a 1500 mm reach and ±0.08 mm repeatability for palletizing and machine tending.
功能特色
- 25 kg payload with a 1500 mm working radius, ±0.08 mm repeatability and 3.3 m/s TCP speed. 31 safety functions (PL d Cat. 3 for SF01-SF30, PL b Cat. 1 for SF31)
- certified to UL, CE and KCs with ISO 13849, ISO 10218 and ISO/TS 15066
- ISO 14644 cleanroom class 5, RoHS and SEMI-S2 rated
- graphical programming with an expandable UI supporting custom plugins and application wizards
- multi-protocol compatibility with PNP/NPN switch mode
- high ingress protection.
技術規格
已驗證| 物理參數 | |
| 負載 | 25 kg |
|---|---|
| 臂展 | 1.5 m |
| 重複定位精度 | ±0.08 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 操作能力 | 高 |
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。
技術規格
已驗證| 物理參數 | |
| 負載 | 25 kg |
|---|---|
| 臂展 | 1.5 m |
| 重複定位精度 | ±0.08 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 操作能力 | 高 |
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。
圖片
martti
Jul 15
圖片貢獻
martti1 張圖片
機器人論壇
正在載入論壇...
評分
暫無評分。
常見問題
What is the CS625?
Heavy-duty 25 kg cobot arm with a 1500 mm reach and ±0.08 mm repeatability for palletizing and machine tending.
Who makes the CS625?
The CS625 is made by Elite Robots, a robotics company based in China.
How much does the CS625 cost?
Elite Robots has not publicly announced pricing for the CS625. You can enquire through RobotAIGeek for current pricing.
What is the CS625 used for?
The CS625 is designed for 組裝, 配發, 機台操作, and 物料搬運. It is used in 汽車, 電子產品, 能源, and 物流 settings.
What is the payload capacity of the CS625?
The CS625 has a payload capacity of 25 kg and a reach of 1.5 m.
When was the CS625 released?
The CS625 was released in 2023.
