描述

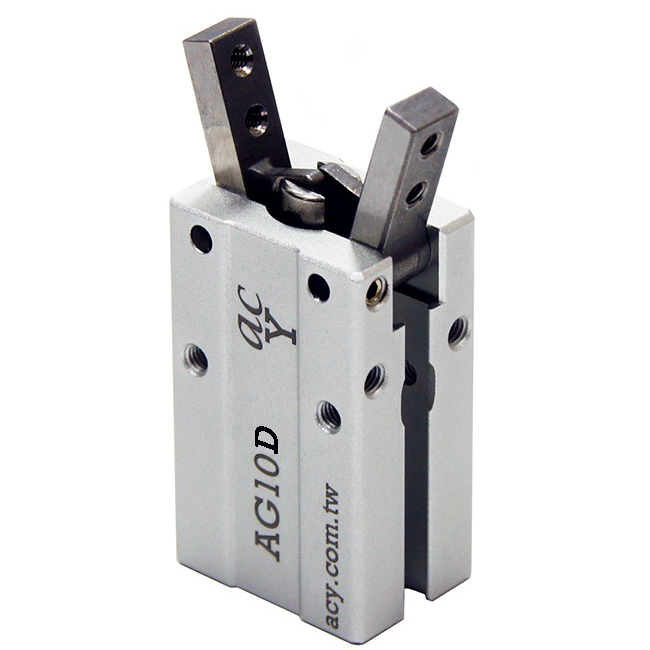

The ACY AG10D is a parallel & angular grippers component by ACY Automation Inc. (Taiwan). 10mm bore double-acting angular gripper with 40° stroke for EOAT applications.
功能特色
- 10mm bore
- 40° stroke
- double-acting
- 2x M3 air ports
- M3 mounting options
技術規格
| 物理參數 | |
| 重量 | 0.06 kg |
|---|---|
| 外形尺寸 | L 30 mm × W 20 mm × H 25 mm |
| 材料 | Anodized aluminium, hardened steel jaws |
| 移動能力 | |
| 移動類型 | 文具 |
| 操作能力 | 低 |
| 作業環境 | Indoor industrial |
| 致動器 | Double-acting pneumatic, 40° stroke |
| 感知與計算 | |
| 感測器 | Optional C-slot sensor (NPN/PNP) |
| 連線方式 | 2x M3 air ports, discrete I/O |
| 軟體 / AI | Compatible with all robot controllers via discrete I/O |
技術規格
| 物理參數 | |
| 重量 | 0.06 kg |
|---|---|
| 外形尺寸 | L 30 mm × W 20 mm × H 25 mm |
| 材料 | Anodized aluminium, hardened steel jaws |
| 移動能力 | |
| 移動類型 | 文具 |
| 操作能力 | 低 |
| 作業環境 | Indoor industrial |
| 致動器 | Double-acting pneumatic, 40° stroke |
| 感知與計算 | |
| 感測器 | Optional C-slot sensor (NPN/PNP) |
| 連線方式 | 2x M3 air ports, discrete I/O |
| 軟體 / AI | Compatible with all robot controllers via discrete I/O |
圖片
圖片貢獻
機器人論壇
正在載入論壇...
評分
常見問題
What is the Angular Gripper 10mm Bore Double Acting?
The ACY AG10D is a parallel & angular grippers component by ACY Automation Inc. (Taiwan). 10mm bore double-acting angular gripper with 40° stroke for EOAT applications.
Who makes the Angular Gripper 10mm Bore Double Acting?
The Angular Gripper 10mm Bore Double Acting is made by ACY Automation Inc., a robotics company based in Taiwan.
How much does the Angular Gripper 10mm Bore Double Acting cost?
ACY Automation Inc. has not publicly announced pricing for the Angular Gripper 10mm Bore Double Acting. You can enquire through RobotAIGeek for current pricing.
What is the Angular Gripper 10mm Bore Double Acting used for?
The Angular Gripper 10mm Bore Double Acting is designed for 機台操作, 物料搬運, and 拾放. It is used in 物流 and 製造業 settings.
How much does the Angular Gripper 10mm Bore Double Acting weigh?
The Angular Gripper 10mm Bore Double Acting weighs 0.06 kg.
When was the Angular Gripper 10mm Bore Double Acting released?
The Angular Gripper 10mm Bore Double Acting was released in 2019.
