Tengda Single-Head Solar Panel Cleaning Robot
描述

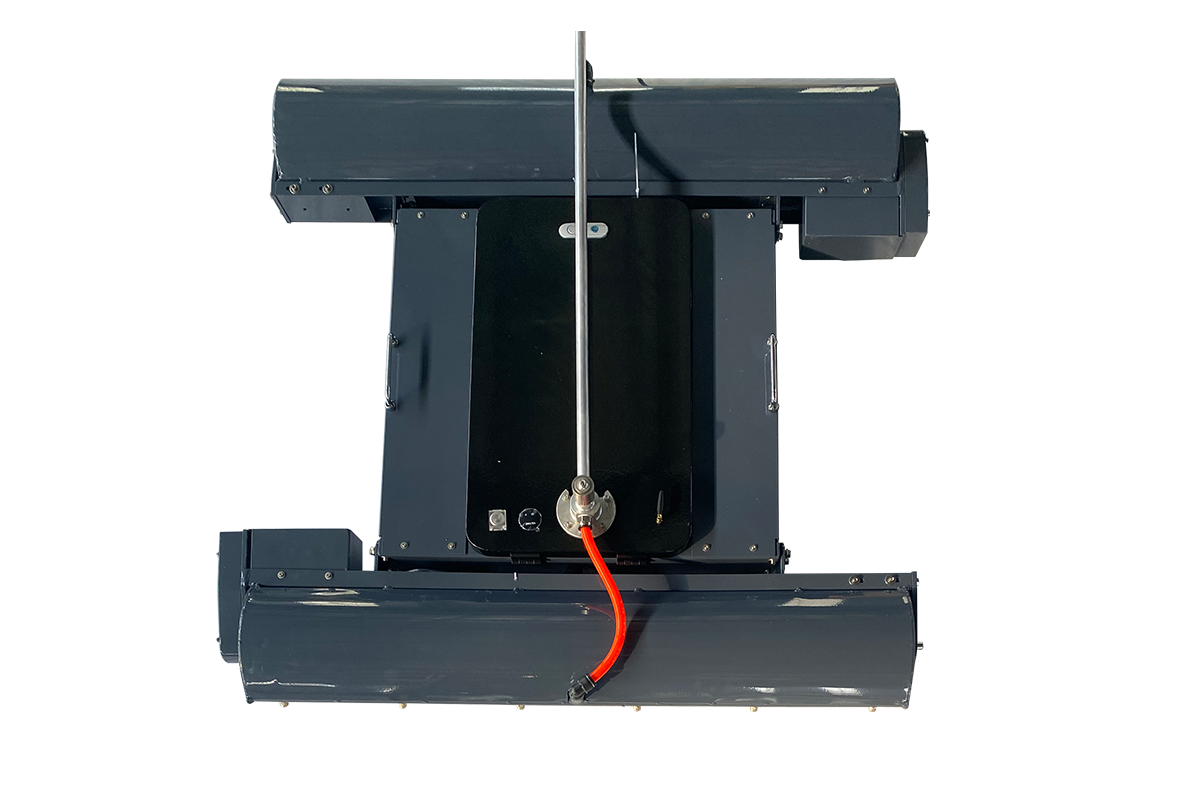

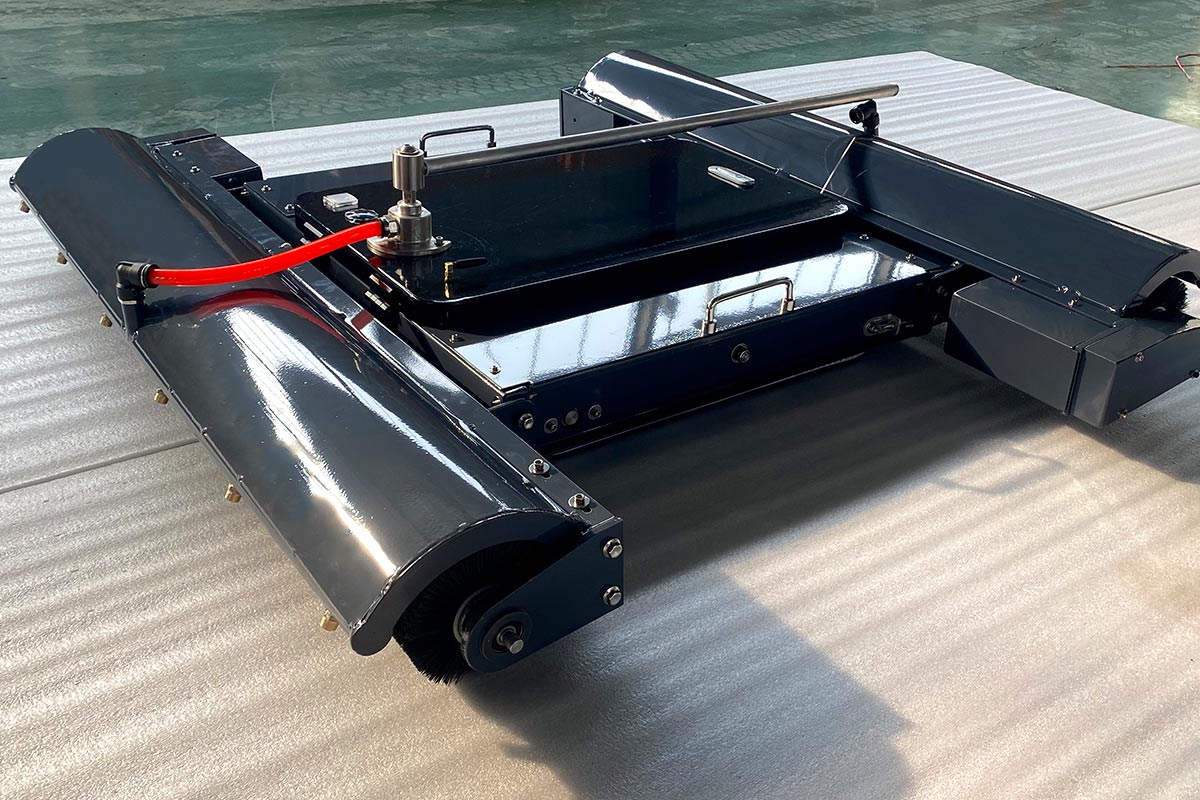

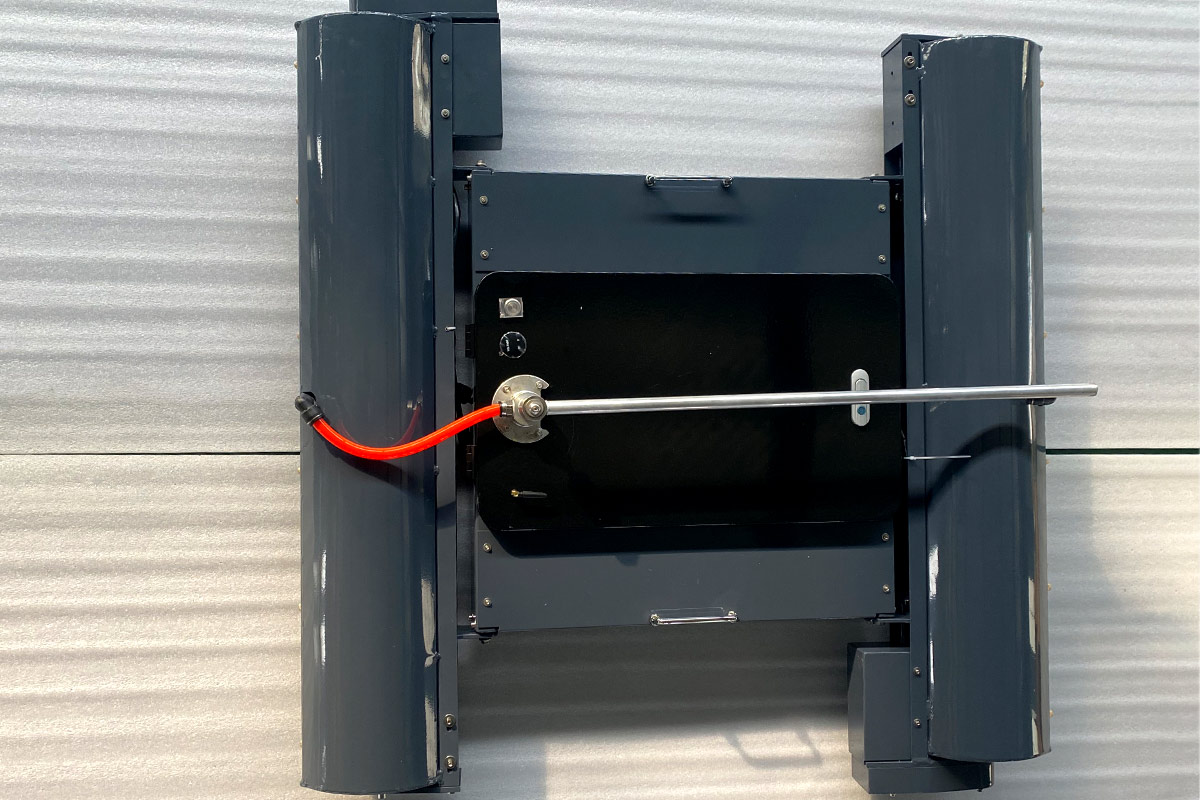

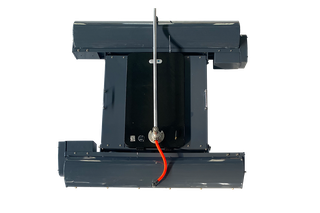

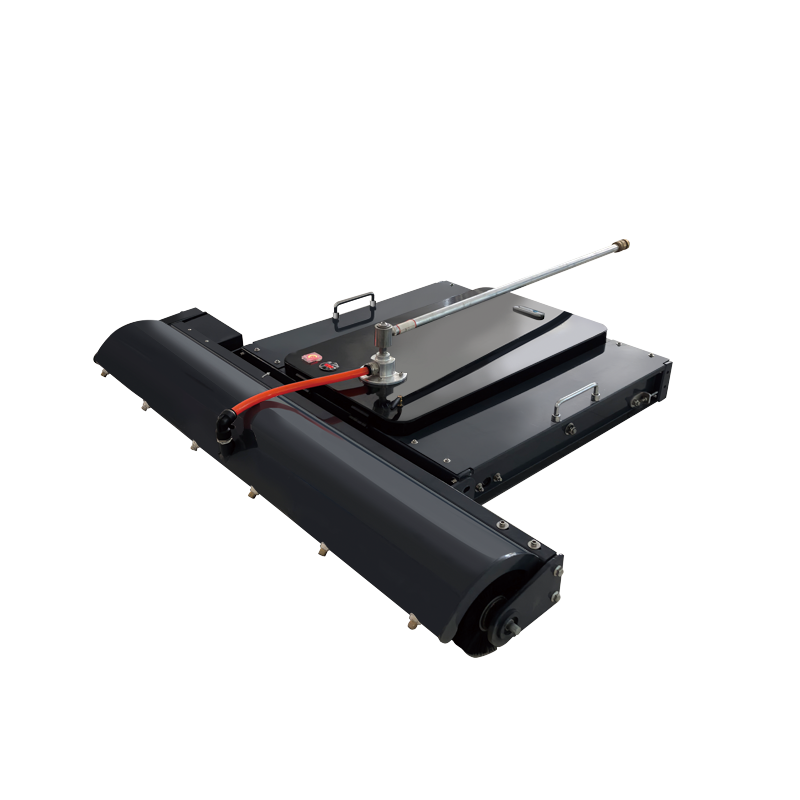

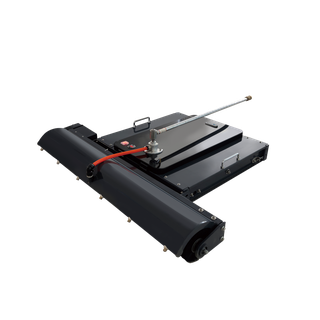

A tracked, remote-controlled brush unit that drives itself along a photovoltaic array to clean it, in either washing or dry mode. It runs on a 24 V 28.6 Ah lithium pack for three to four hours at 200 W, crawls at 20 m/min and works panels pitched up to 30 degrees, in anything from -20 to 50 °C. At 35 kg and 150 mm tall it sits on the panels themselves, and comes in a 1,100 mm or 1,300 mm cleaning width; the nylon-silk brush is 132 mm across.
功能特点

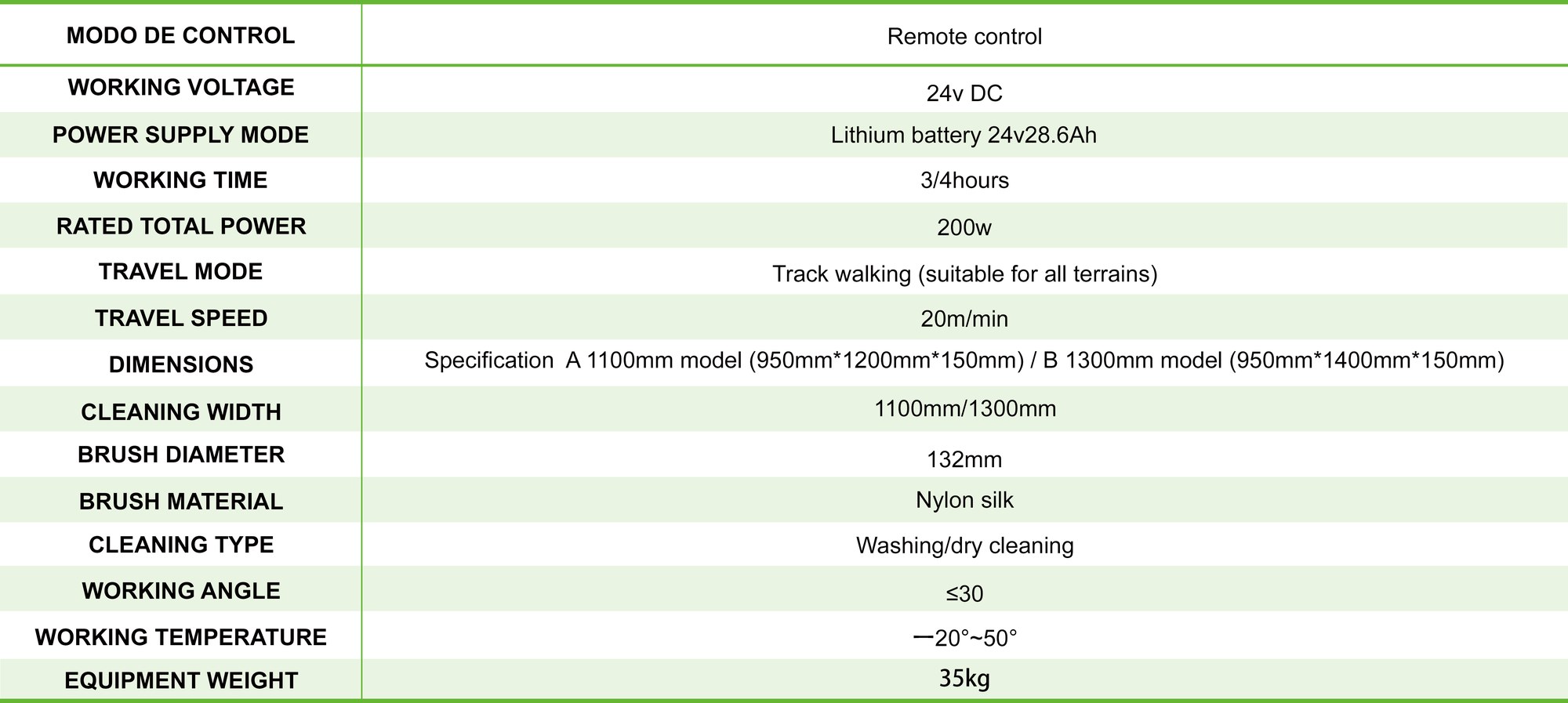

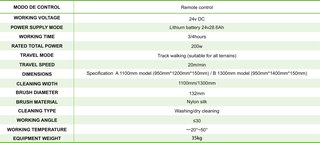

- Remote-controlled operation.
- Track walking drive, stated as suitable for all terrains
- travel speed 20 m/min.
- Cleaning width 1,100 mm (A) or 1,300 mm (B)
- 132 mm nylon-silk brush.
- Washing or dry cleaning modes.
- 24 V DC, lithium battery 24 V / 28.6 Ah, 200 W rated total power.
- Working time 3-4 hours per charge.
- Works on arrays pitched up to 30 degrees.
- Operating temperature -20 to 50 °C.
- Equipment weight 35 kg
- A model 950 x 1200 x 150 mm, B model 950 x 1400 x 150 mm.
技术规格
已验证| 物理参数 | |
| 重量 | 35 kg |
|---|---|
| 外形尺寸 | L 1.2 m × W 950 mm × H 150 mm |
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 1.2 km/h |
| 作业环境 | Outdoor photovoltaic arrays; -20 to 50 °C, panel pitch up to 30 degrees. |
| 电源与续航 | |
| 续航时间 | 3-4 hours |
技术规格
已验证| 物理参数 | |
| 重量 | 35 kg |
|---|---|
| 外形尺寸 | L 1.2 m × W 950 mm × H 150 mm |
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 1.2 km/h |
| 作业环境 | Outdoor photovoltaic arrays; -20 to 50 °C, panel pitch up to 30 degrees. |
| 电源与续航 | |
| 续航时间 | 3-4 hours |
martti
martti
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the Tengda Single-Head Solar Panel Cleaning Robot?
A tracked, remote-controlled brush unit that drives itself along a photovoltaic array to clean it, in either washing or dry mode. It runs on a 24 V 28.6 Ah lithium pack for three to four hours at 200 W, crawls at 20 m/min and works panels pitched up to 30 degrees, in anything from -20 to 50 °C.
Who makes the Tengda Single-Head Solar Panel Cleaning Robot?
The Tengda Single-Head Solar Panel Cleaning Robot is made by Shandong Tengda Heavy Industry Machinery, a robotics company based in China.
How much does the Tengda Single-Head Solar Panel Cleaning Robot cost?
Shandong Tengda Heavy Industry Machinery has not publicly announced pricing for the Tengda Single-Head Solar Panel Cleaning Robot. You can enquire through RobotAIGeek for current pricing.
What is the Tengda Single-Head Solar Panel Cleaning Robot used for?
The Tengda Single-Head Solar Panel Cleaning Robot is designed for 清洁. It is used in 其他 and 清洁 settings.
How much does the Tengda Single-Head Solar Panel Cleaning Robot weigh?
The Tengda Single-Head Solar Panel Cleaning Robot weighs 35 kg.
How fast is the Tengda Single-Head Solar Panel Cleaning Robot?
The Tengda Single-Head Solar Panel Cleaning Robot can move at speeds of up to 1.2 km/h.
What is the battery life of the Tengda Single-Head Solar Panel Cleaning Robot?
The Tengda Single-Head Solar Panel Cleaning Robot runs for 3-4 hours on a charge.
