描述

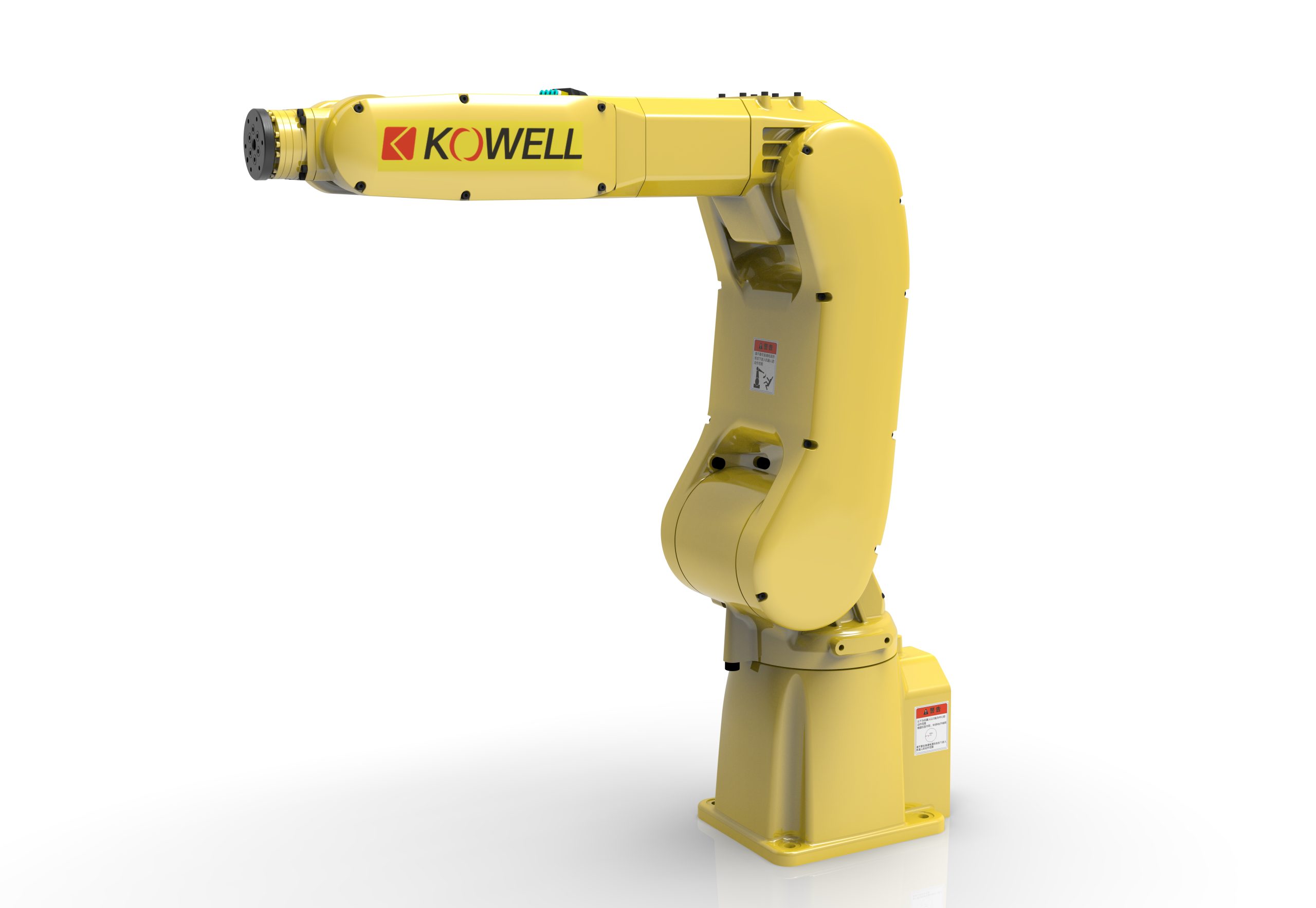

Six axis robot arm with a payload of 5kg, suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C/medical, and food. Advantages and features: Adopting internal wiring method, the appearance is streamlined, simple and fashionable, the structure is tight and compact, and can be integrated into small automation units.
功能特点

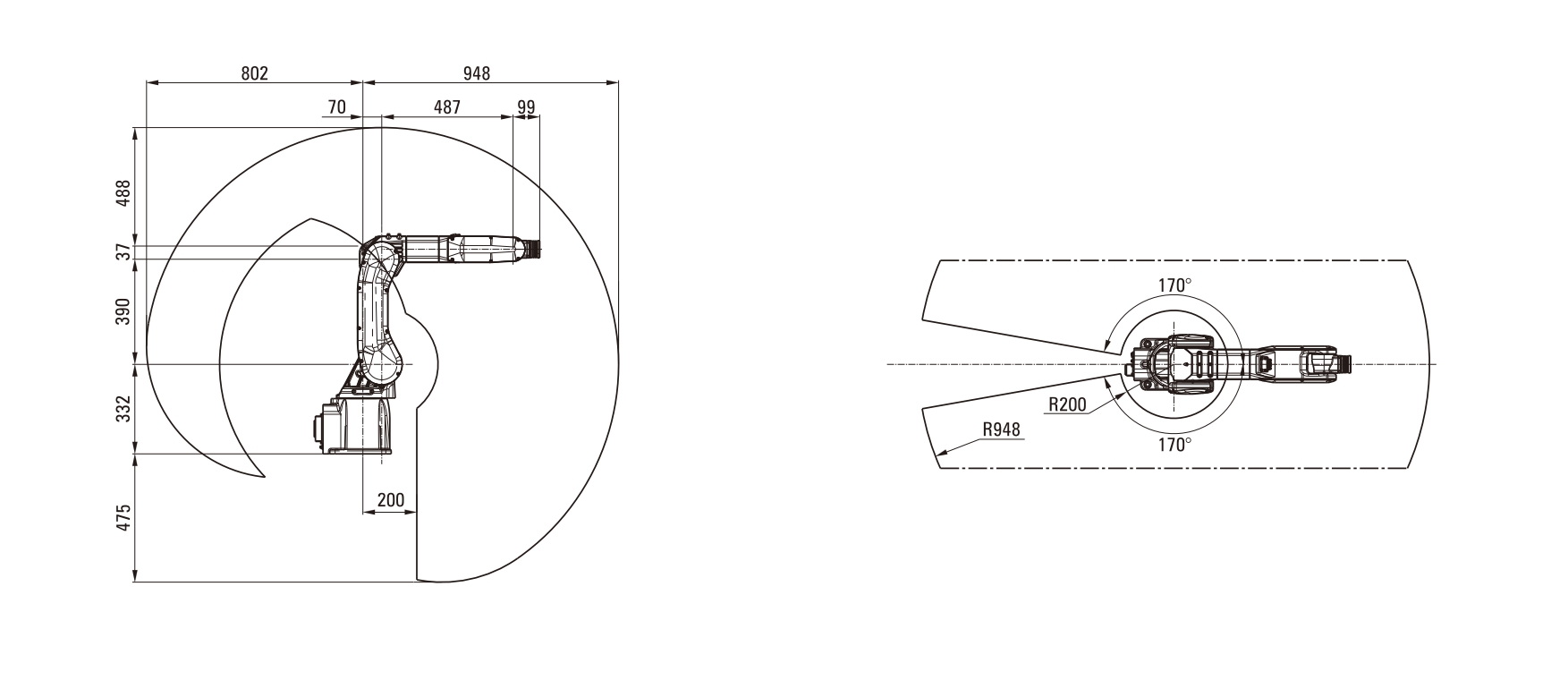

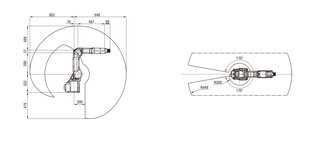

- Vertically articulated six-axis arm rated 5 kg payload with a 948 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 43 kg.
- Power capacity 3.0 kVA
- protection rated equivalent to IP65.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- It is a six axis robot arm with a payload of 5kg, suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C/medical, and food. Advantages and features: Adopting internal wiring method,...

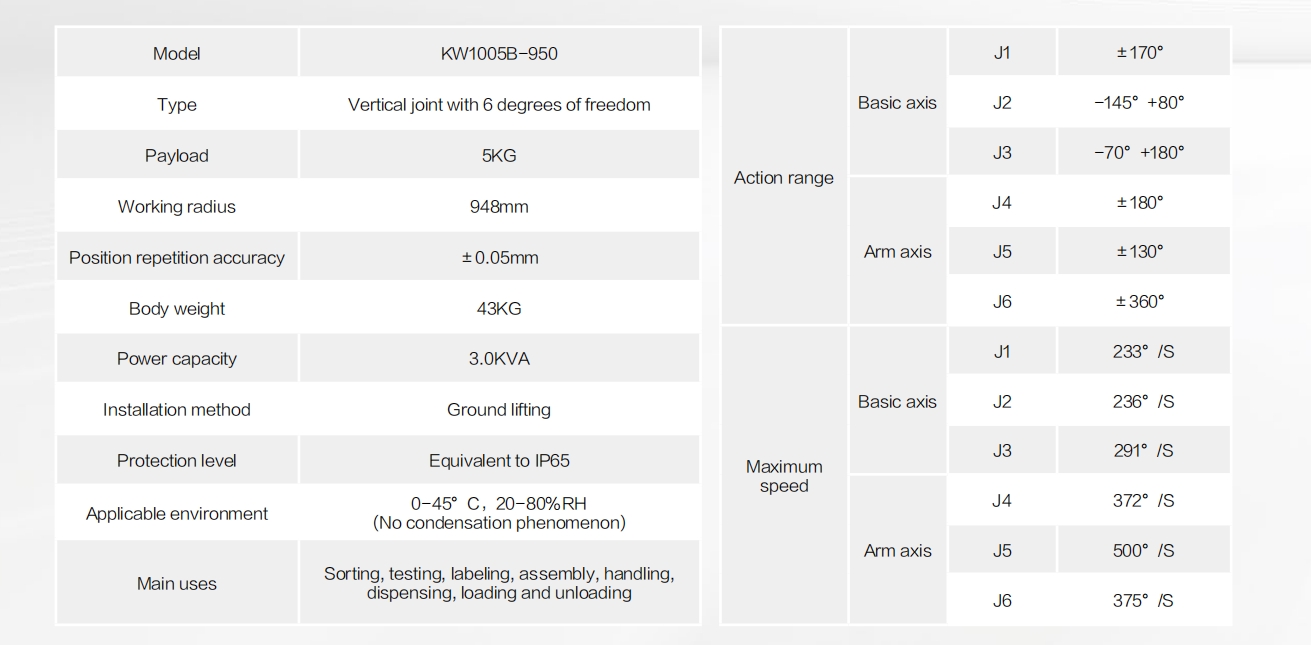

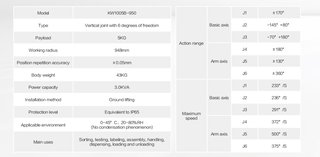

技术规格
已验证| 物理参数 | |
| 重量 | 43 kg |
|---|---|
| 负载 | 5 kg |
| 臂展 | 948 mm |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
技术规格
已验证| 物理参数 | |
| 重量 | 43 kg |
|---|---|
| 负载 | 5 kg |
| 臂展 | 948 mm |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the Six axis robot KW1005B-950?
Six axis robot arm with a payload of 5kg, suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C/medical, and food.
Who makes the Six axis robot KW1005B-950?
The Six axis robot KW1005B-950 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Six axis robot KW1005B-950 cost?
Shandong Kewei Robot has not publicly announced pricing for the Six axis robot KW1005B-950. You can enquire through RobotAIGeek for current pricing.
What is the Six axis robot KW1005B-950 used for?
The Six axis robot KW1005B-950 is designed for 组装, 分装, 物料搬运, and 排序. It is used in 电子产品, 医疗保健, and 制造业 settings.
What is the payload capacity of the Six axis robot KW1005B-950?
The Six axis robot KW1005B-950 has a payload capacity of 5 kg and a reach of 948 mm.
How much does the Six axis robot KW1005B-950 weigh?
The Six axis robot KW1005B-950 weighs 43 kg.
How many degrees of freedom does the Six axis robot KW1005B-950 have?
The Six axis robot KW1005B-950 has 6 degrees of freedom.
