描述
Is equipped with a brand new intelligent welding control system, deeply integrated with digital robot welding and carefully designed with integrated technology, we are committed to providing you with a professional level excellent welding experience, making your welding operations easy, efficient, and fast. This system not only has an extraordinary high cost performance ratio, but also achieves comprehensive optimization in design, undoubtedly making it your ideal choice.
功能特点

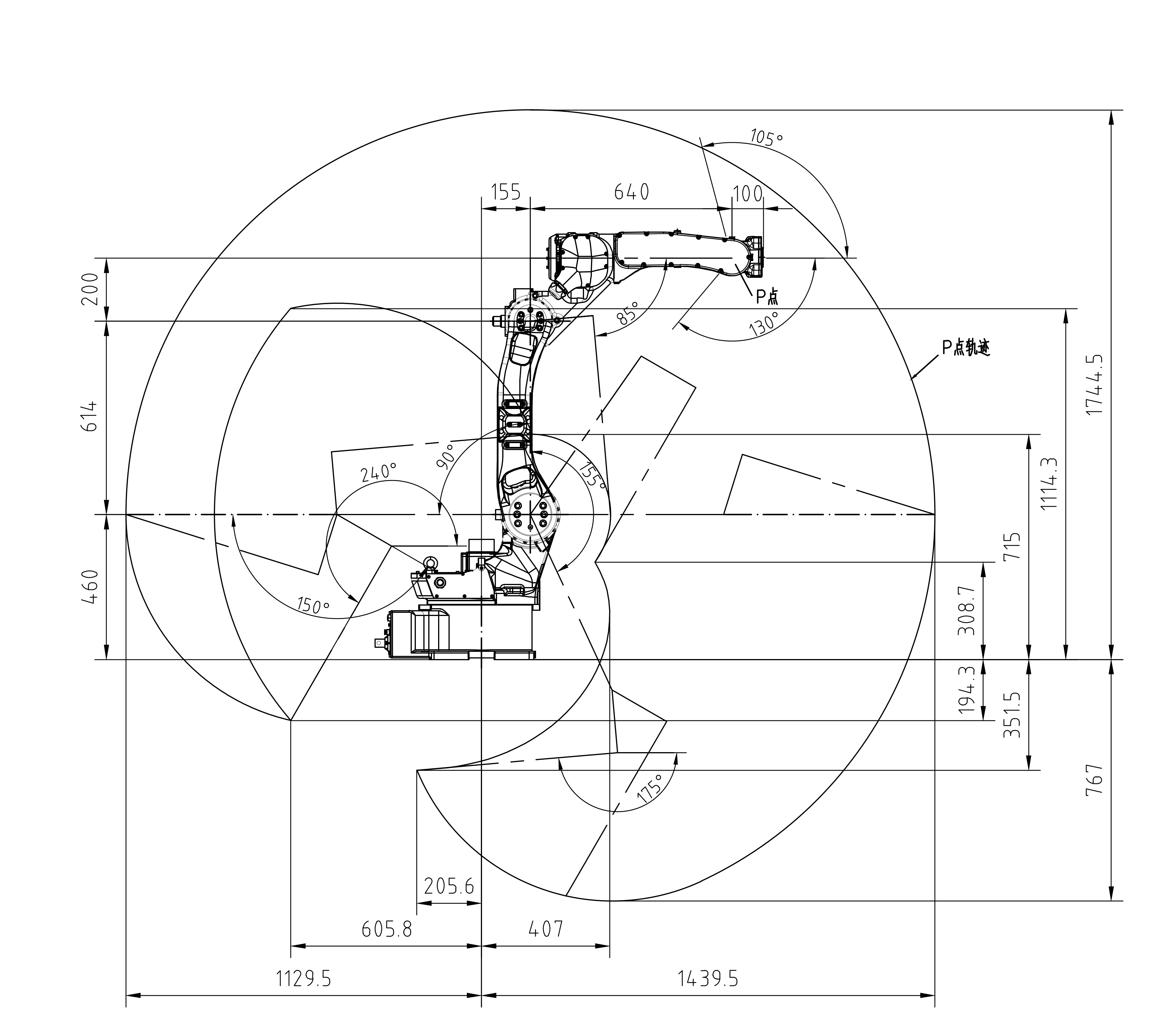

- Vertically articulated six-axis arm rated 10 kg payload with a 1,440 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 210 kg.
- Power capacity 4.5 kVA
- protection rated equivalent to IP56/IP67.
- Mounts floor standing, bracket standing or inverted (hanging).
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- Robot welding KW1010B-1440 is equipped with a brand new intelligent welding control system, deeply integrated with digital robot welding and carefully designed with integrated technology, we are committed to providing you with a professional level excellent welding experience, making your...

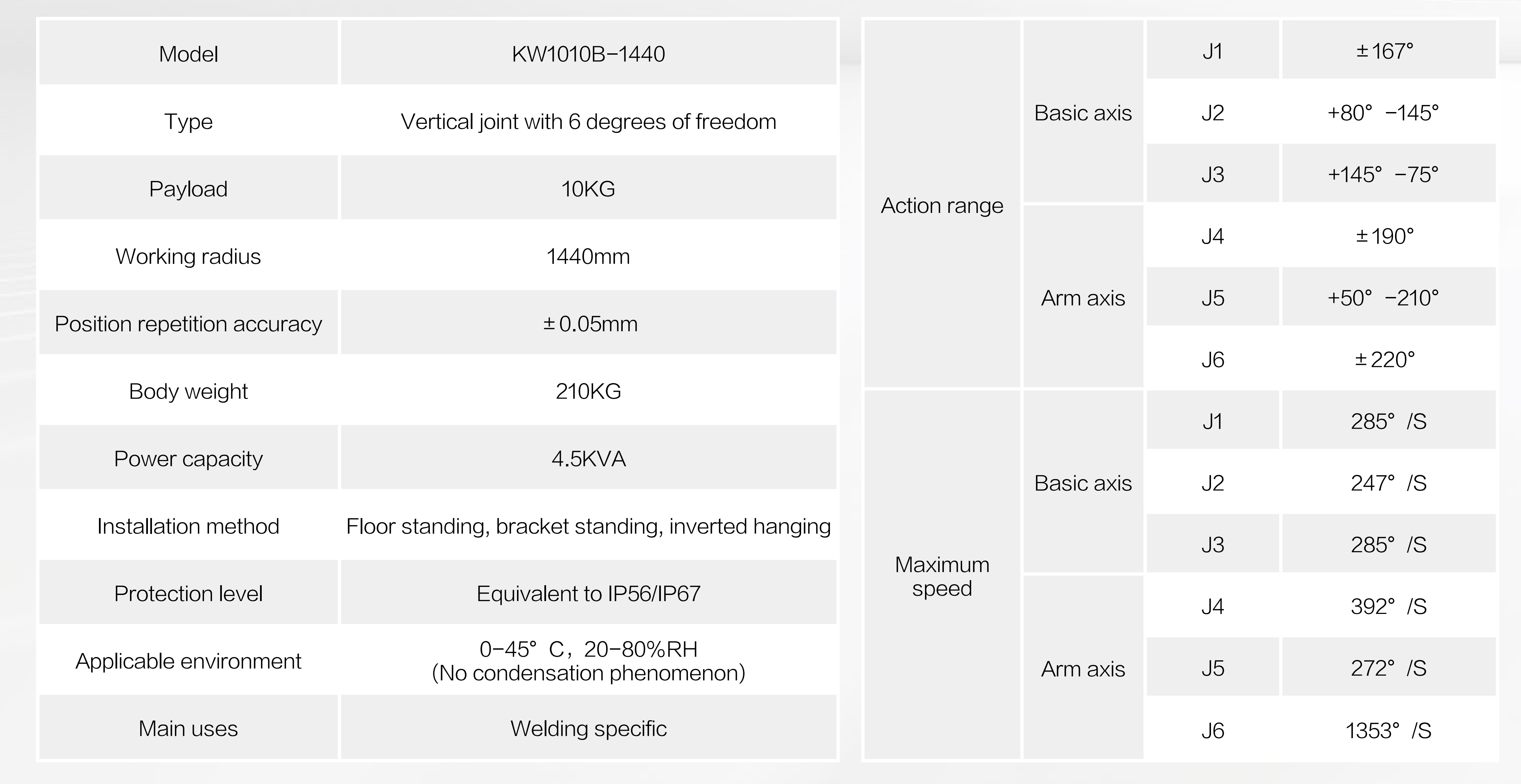

技术规格
已验证| 物理参数 | |
| 重量 | 210 kg |
|---|---|
| 负载 | 10 kg |
| 臂展 | 1.44 m |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
技术规格
已验证| 物理参数 | |
| 重量 | 210 kg |
|---|---|
| 负载 | 10 kg |
| 臂展 | 1.44 m |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the Robot welding KW1010B-1440?
Is equipped with a brand new intelligent welding control system, deeply integrated with digital robot welding and carefully designed with integrated technology, we are committed to providing you with a professional level excellent welding experience, making your welding operations easy, efficient, and fast.
Who makes the Robot welding KW1010B-1440?
The Robot welding KW1010B-1440 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Robot welding KW1010B-1440 cost?
Shandong Kewei Robot has not publicly announced pricing for the Robot welding KW1010B-1440. You can enquire through RobotAIGeek for current pricing.
What is the Robot welding KW1010B-1440 used for?
The Robot welding KW1010B-1440 is designed for 组装, 物料搬运, and 焊接. It is used in 汽车 and 制造业 settings.
What is the payload capacity of the Robot welding KW1010B-1440?
The Robot welding KW1010B-1440 has a payload capacity of 10 kg and a reach of 1.44 m.
How much does the Robot welding KW1010B-1440 weigh?
The Robot welding KW1010B-1440 weighs 210 kg.
How many degrees of freedom does the Robot welding KW1010B-1440 have?
The Robot welding KW1010B-1440 has 6 degrees of freedom.
