Lowpad F

Lowpad

Mobile-Robots

Netherlands已发布

★尚未评分

来源：

行业：

用途：

价格：

未公布

型号：

Lowpad F counterbalance-free pallet AMR

描述

Lowpad F是Lowpad的Mobile-Robots。面向内部物流、物料搬运、运输设计。关键数据：负载 1250 kg。

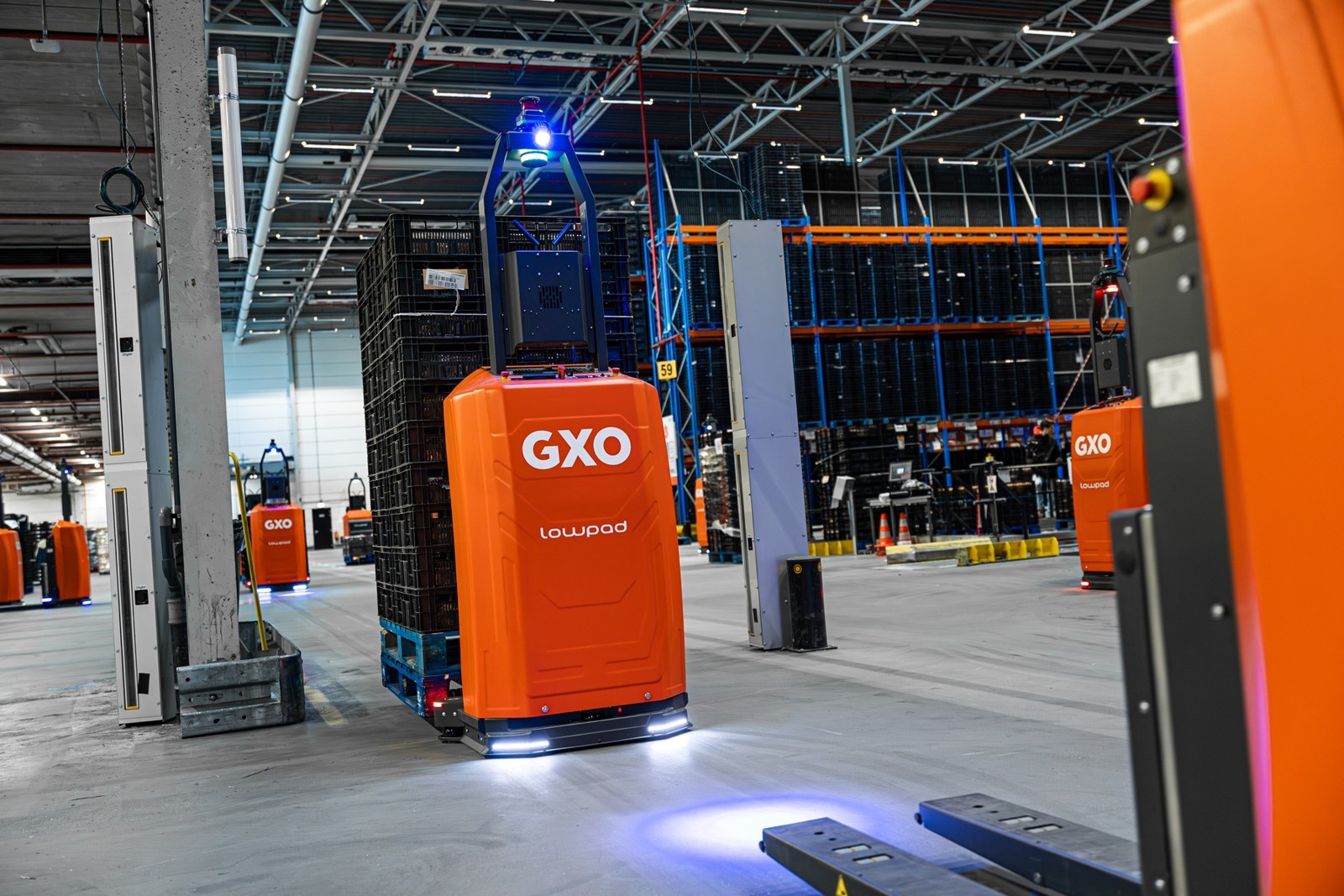

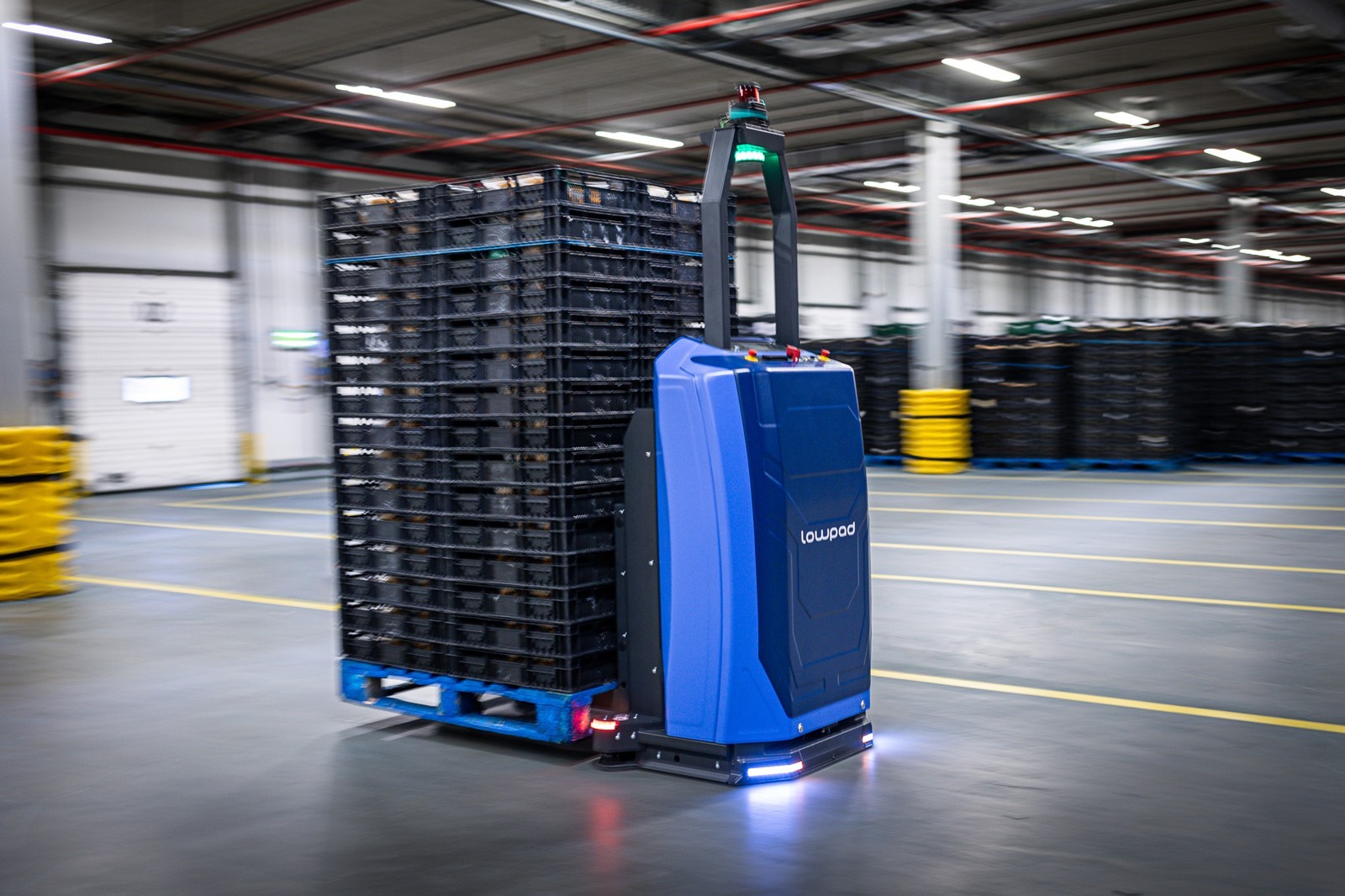

The Lowpad F is Lowpad's compact AMR for pallet transport in retail distribution warehouses, handling both open and closed pallets such as CHEP, Euro, LPR and IPP. Because it needs no counterbalance it stays compact and manoeuvrable in existing warehouse layouts. Unlike systems that need conveyors or pick-up stations, the Lowpad F picks pallets up from the floor and sets them down on the floor itself, so no extra equipment or manual help is required. It carries loads of up to 1,250 kg with a 220 mm lifting height and works autonomously within the Lowpad Suite for inbound, outbound, point-to-point and picking flows, including at GXO.

功能特点

Pallet types: Euro, CHEP, LPR and IPP
open and closed pallets
Lifting capacity 1,250 kg
lifting height 220 mm
No counterbalance - compact and manoeuvrable
Picks up and sets down pallets directly on the floor
no extra equipment needed
Dimensions 1974 x 940 x 2236 mm
Applications: inbound, outbound, point-to-point transport, picking and case picking

技术规格

已验证

物理参数
外形尺寸	L 1.97 m × W 940 mm × H 2.24 m
负载	1250 kg
移动能力
运动类型	带轮的
作业环境	Indoor retail distribution warehouses and logistics centres
感知与计算
传感器	navigation and safety sensors
连接方式	Wireless fleet link to Lowpad Suite

来源：制造商官网来源：第三方暂无来源来源状态基于该机器人已登记的资料来源。
