KW1220B-2700

Shandong Kewei Robot
Industrial-RobotChinaChina已发布
KW1220B-2700
对比
来源：
keweirobot.com
行业：
物流制造业
用途：
物料搬运码垛
价格：
未公布

描述

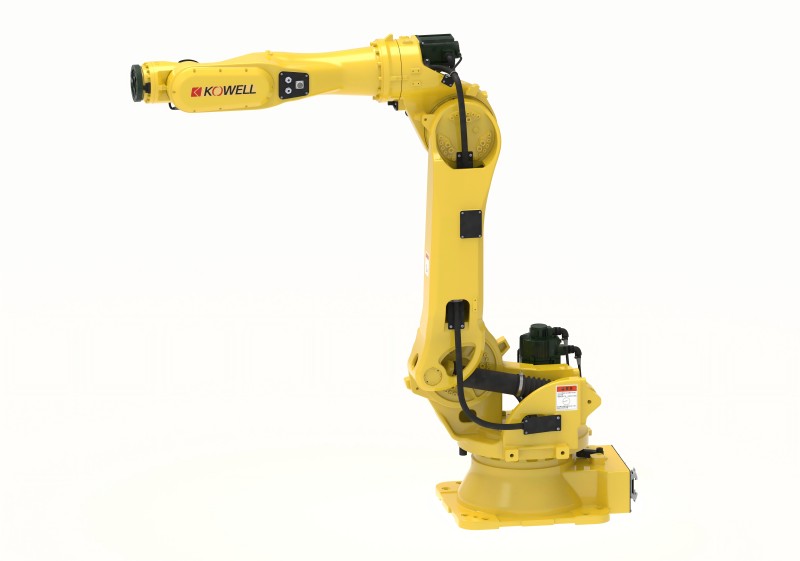

6-axis robotic arm with a payload of 220KG and a working radius of 2700mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is used in various industries such as food, beverage, building materials, logistics, warehousing, doors and windows, photovoltaics, new energy, etc. It is a favored product for automation solutions for sheet metal and ceramics. Advantages and features: high precision, fast speed, simple and convenient operation; Fully automated operation saves labor costs; Equipped with a safe and reliable emergency stop button;

功能特点

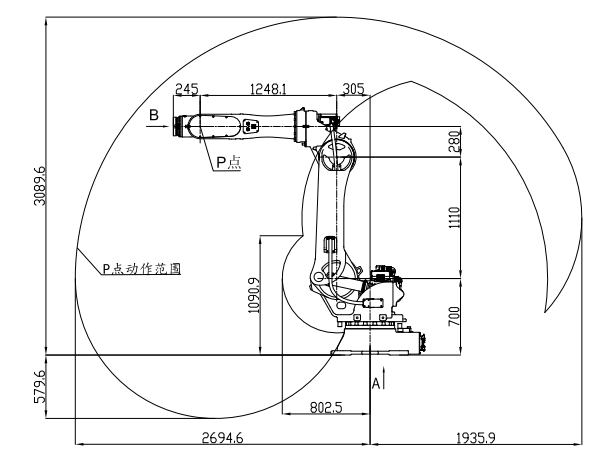

  • Vertically articulated six-axis arm rated 220 kg payload with a 2,700 mm working radius.
  • Position repetition accuracy of ±0.06 mm
  • body weight 1020 kg.
  • Power capacity 11 kVA
  • protection rated equivalent to IP54.
  • Ground (floor) mounted installation.
  • Rated for 0-45 °C and 20-80% RH, non-condensing.
  • It is a 6-axis robotic arm with a payload of 220KG and a working radius of 2700mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is used in various industries such as food, beverage, building materials, logistics,...

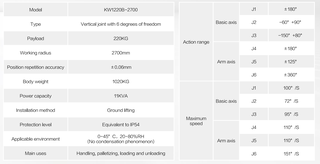

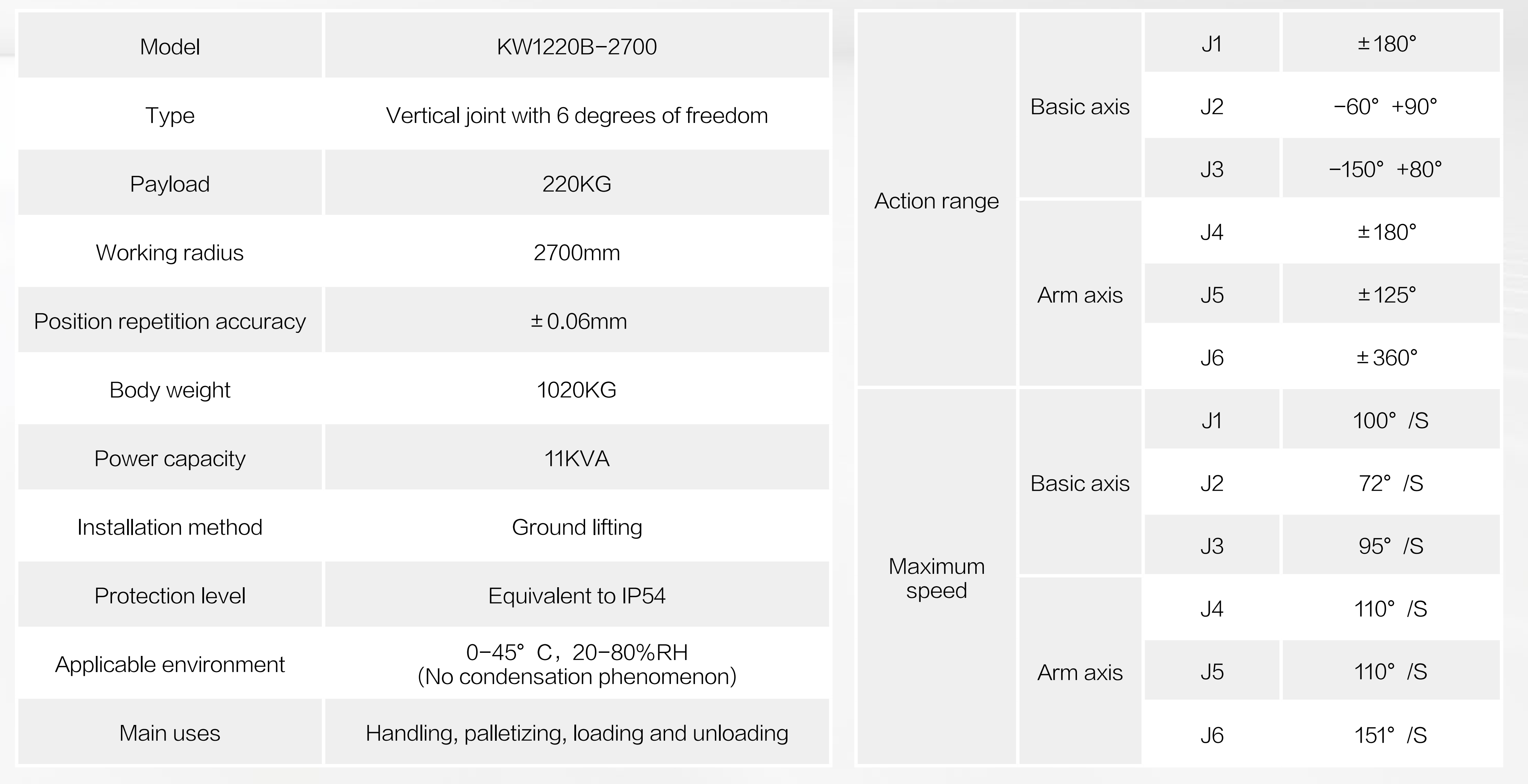

技术规格

已验证
物理参数
重量1020 kg
负载220 kg
臂展2.7 m
重复定位精度±0.06 mm
移动能力
运动类型文具
自由度6
作业环境Indoor industrial; 0-45 °C, 20-80% RH, non-condensing.
来源：制造商官网来源：第三方暂无来源来源状态基于该机器人已登记的资料来源。

常见问题

What is the KW1220B-2700?

6-axis robotic arm with a payload of 220KG and a working radius of 2700mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is used in various industries such as food, beverage, building materials, logistics, warehousing, doors and windows, photo…

Who makes the KW1220B-2700?

The KW1220B-2700 is made by Shandong Kewei Robot, a robotics company based in China.

How much does the KW1220B-2700 cost?

Shandong Kewei Robot has not publicly announced pricing for the KW1220B-2700. You can enquire through RobotAIGeek for current pricing.

What is the KW1220B-2700 used for?

The KW1220B-2700 is designed for 物料搬运 and 码垛. It is used in 物流 and 制造业 settings.

What is the payload capacity of the KW1220B-2700?

The KW1220B-2700 has a payload capacity of 220 kg and a reach of 2.7 m.

How much does the KW1220B-2700 weigh?

The KW1220B-2700 weighs 1,020 kg.

How many degrees of freedom does the KW1220B-2700 have?

The KW1220B-2700 has 6 degrees of freedom.
