描述

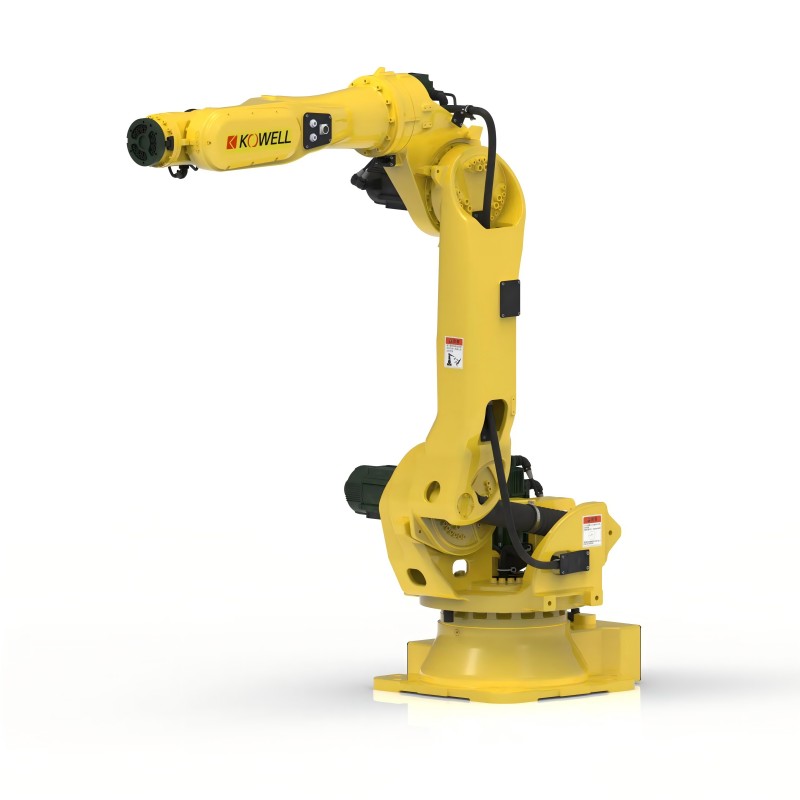

6-axis robotic arm with a payload of 170KG and a working radius of 2700mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is a favored product for sheet automation solutions in various industries such as food, beverage, building materials, logistics, warehousing, doors and windows, photovoltaics, and new energy. Advantages and features: high precision, fast speed, simple and convenient operation; Fully automated operation saves labor costs; Equipped with a safe and reliable emergency stop button;
功能特点
- Vertically articulated six-axis arm rated 170 kg payload with a 2,700 mm working radius.
- Position repetition accuracy of ±0.06 mm
- body weight 1020 kg.
- Power capacity 11 kVA
- protection rated equivalent to IP54.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- It is a 6-axis robotic arm with a payload of 170KG and a working radius of 2700mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is a favored product for sheet automation solutions in various industries such as food,...

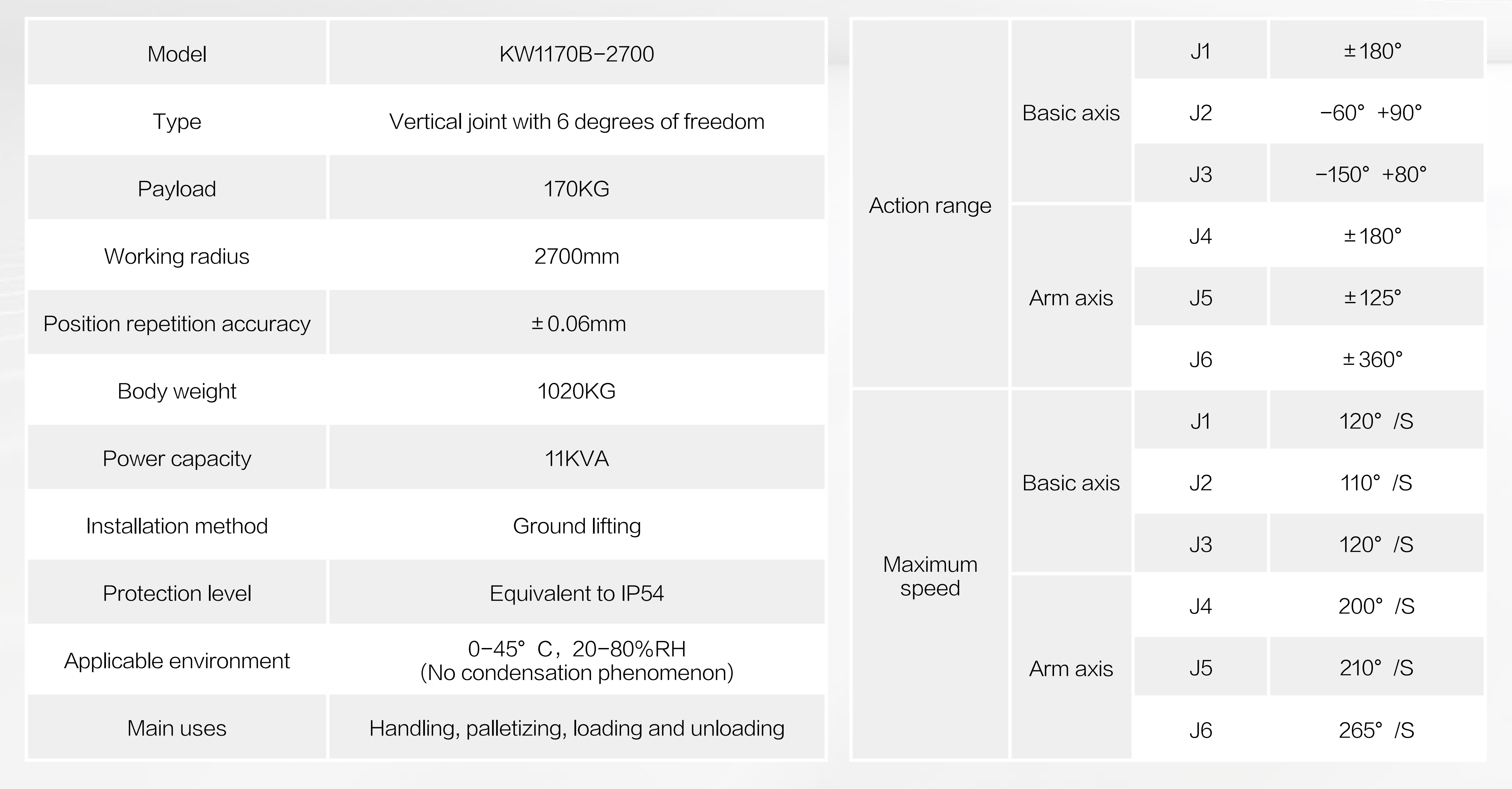

技术规格
已验证| 物理参数 | |
| 重量 | 1020 kg |
|---|---|
| 负载 | 170 kg |
| 臂展 | 2.7 m |
| 重复定位精度 | ±0.06 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
技术规格
已验证| 物理参数 | |
| 重量 | 1020 kg |
|---|---|
| 负载 | 170 kg |
| 臂展 | 2.7 m |
| 重复定位精度 | ±0.06 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the KW1170B-2700?
6-axis robotic arm with a payload of 170KG and a working radius of 2700mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and is a favored product for sheet automation solutions in various industries such as food, beverage, building materials, logi…
Who makes the KW1170B-2700?
The KW1170B-2700 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the KW1170B-2700 cost?
Shandong Kewei Robot has not publicly announced pricing for the KW1170B-2700. You can enquire through RobotAIGeek for current pricing.
What is the KW1170B-2700 used for?
The KW1170B-2700 is designed for 物料搬运 and 码垛. It is used in 物流 and 制造业 settings.
What is the payload capacity of the KW1170B-2700?
The KW1170B-2700 has a payload capacity of 170 kg and a reach of 2.7 m.
How much does the KW1170B-2700 weigh?
The KW1170B-2700 weighs 1,020 kg.
How many degrees of freedom does the KW1170B-2700 have?
The KW1170B-2700 has 6 degrees of freedom.
