描述

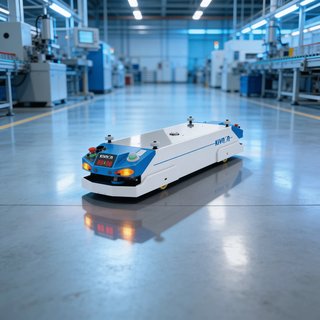

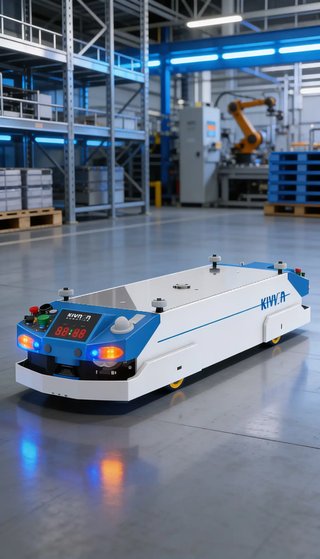

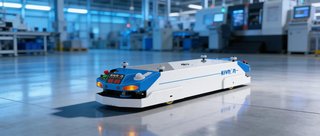

The Kivnon K11 is a bidirectional heavy-duty towing AMR that pulls up to 5,000 kg on a wheeled cart. Unlike one-way tuggers it reverses without needing a wide turning radius, so it works in narrow aisles and along long routes in both directions. It navigates either by magnetic guidance or by autonomous SLAM, which removes the need to lay magnetic tape, and it speaks VDA 5050 so a fleet integrates with existing management systems. At 2,010 x 500 x 333 mm it travels at up to 1 m/s and couples through a retractable pin.
功能特点
- Towing capacity up to 5,000 kg on a wheeled cart.
- Two-way movement: reverses without a wide turning radius, suiting narrow aisles.

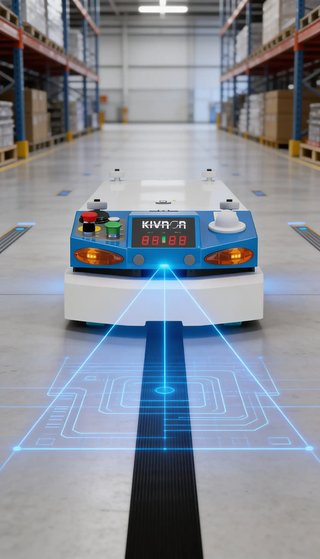

- Magnetic guidance or autonomous SLAM navigation
- SLAM removes the need for magnetic tape and plans routes around obstacles in real time.
- VDA 5050 protocol for integration with existing fleet management systems.
- Dimensions 2,010 x 500 x 333 mm.
- Maximum speed 1 m/s.
- Retractable pin (PIN) coupling.
- Inline lithium battery with trickle charging via an onboard charging connector.
- Safety: 1 laser scanner, 2 safety PLCs, 2 emergency stop buttons, front and rear displays, and status, error, battery and circuit monitoring.
- Intended for long-distance transport of large loads requiring bidirectional movement.
技术规格
已验证| 物理参数 | |
| 外形尺寸 | L 2.01 m × W 500 mm × H 333 mm |
|---|---|
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 3.6 km/h |
技术规格
已验证| 物理参数 | |
| 外形尺寸 | L 2.01 m × W 500 mm × H 333 mm |
|---|---|
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 3.6 km/h |
martti
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the K11?
The Kivnon K11 is a bidirectional heavy-duty towing AMR that pulls up to 5,000 kg on a wheeled cart. Unlike one-way tuggers it reverses without needing a wide turning radius, so it works in narrow aisles and along long routes in both directions.
Who makes the K11?
The K11 is made by Kivnon, a robotics company based in Spain.
How much does the K11 cost?
Kivnon has not publicly announced pricing for the K11. You can enquire through RobotAIGeek for current pricing.
What is the K11 used for?
The K11 is designed for 运输. It is used in 物流 and 制造业 settings.
How fast is the K11?
The K11 can move at speeds of up to 3.6 km/h.
