iSAGEBOT AMR Chassis M300

Isagebot
Mobile-RobotsChinaChina已发布
iSAGEBOT AMR Chassis M300
对比
来源：
en.sage-modi.com
行业：
教育物流制造业
用途：
内部物流物料搬运运输
价格：
未公布

描述

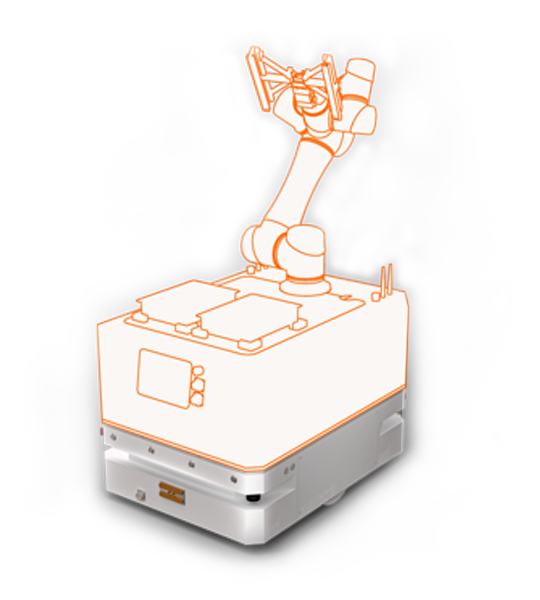

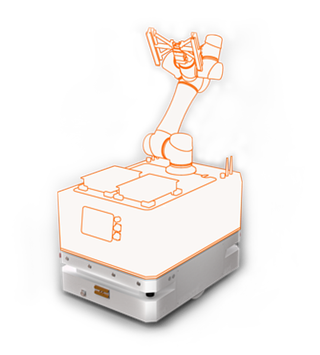

The M300 is iSAGEBOT's AMR chassis, sold explicitly as a platform rather than a finished robot: a physical carrier with sensors, visual recognition and LiDAR already integrated, designed to take different upper components — including a collaborative arm — under unified control. The company describes it as a modular '1+1' design, and it interfaces with MES, ERP and WMS systems so whatever is built on top inherits factory integration rather than needing its own. It is 600 by 900 by 280 mm, weighs 90 kg and carries 300 kg. Drive is dual-wheel differential, navigation is laser LiDAR or QR code, and it moves at up to 1.5 m/s with 5 mm navigation accuracy on a 40 Ah battery. Safety runs to an emergency stop, bumper, ultrasonic sensors, LiDAR and a sound-and-light alarm. iSAGEBOT positions it for industrial, commercial and educational automation.

功能特点

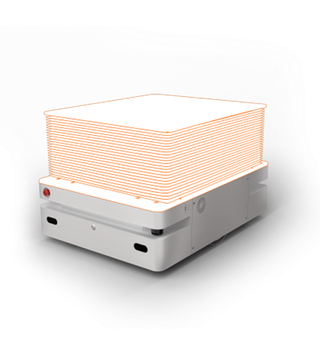

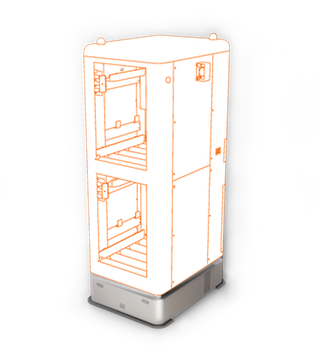

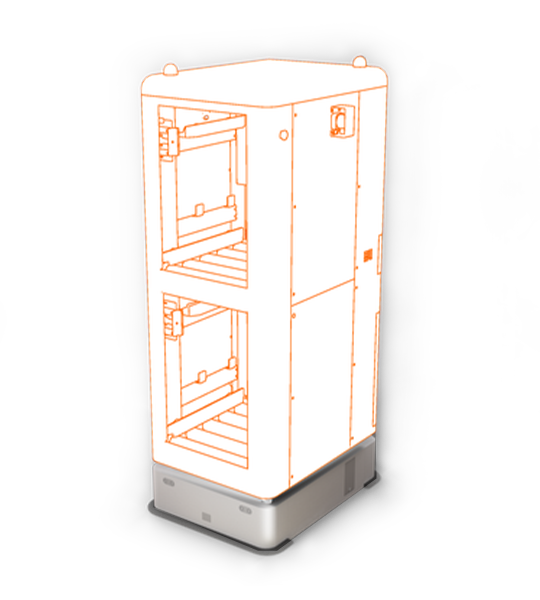

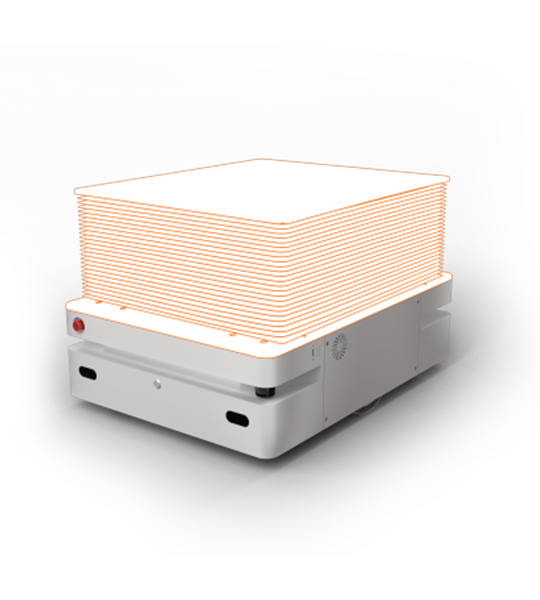

  • Modular 1+1 platform design for varied upper components
  • Dimensions 600 x 900 x 280 mm
  • weight 90 kg
  • Rated load 300 kg
  • Dual-wheel differential drive

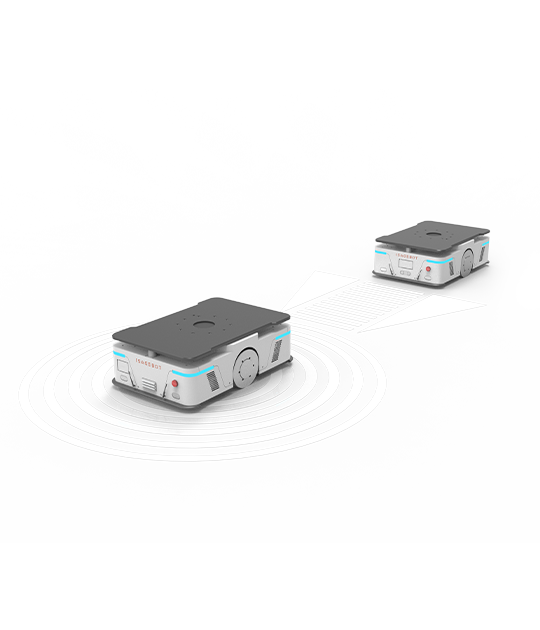

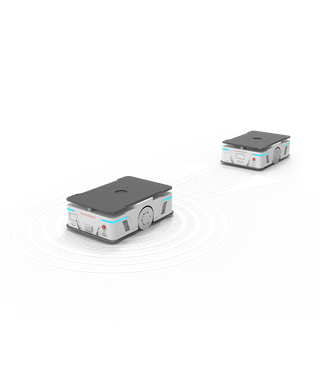

  • Laser LiDAR or QR-code navigation
  • Moving speed 0 to 1.5 m/s
  • navigation accuracy 5 mm
  • 40 Ah battery
  • Integrated sensors, visual recognition and LiDAR
  • Unified control of mounted components
  • adapts to MES, ERP and WMS systems
  • Safety: emergency stop, bumper, ultrasonic sensors, LiDAR, sound-and-light alarm
  • SLAM navigation with dynamic obstacle avoidance, no environmental modification required

技术规格

已验证
物理参数
重量90 kg
外形尺寸L 900 mm × W 600 mm × H 280 mm
负载300 kg
移动能力
运动类型带轮的
速度5.4 km/h
作业环境Industrial, commercial and educational settings
执行器Dual-wheel differential drive chassis with a modular upper mounting interface
感知与计算
传感器LiDAR, vision system, ultrasonic sensor, bumper
软件 / AISLAM navigation with dynamic obstacle avoidance; MES, ERP and WMS integration
来源：制造商官网来源：第三方暂无来源来源状态基于该机器人已登记的资料来源。

常见问题

What is the iSAGEBOT AMR Chassis M300?

The M300 is iSAGEBOT's AMR chassis, sold explicitly as a platform rather than a finished robot: a physical carrier with sensors, visual recognition and LiDAR already integrated, designed to take different upper components — including a collaborative arm — under unified control.

Who makes the iSAGEBOT AMR Chassis M300?

The iSAGEBOT AMR Chassis M300 is made by Isagebot, a robotics company based in China.

How much does the iSAGEBOT AMR Chassis M300 cost?

Isagebot has not publicly announced pricing for the iSAGEBOT AMR Chassis M300. You can enquire through RobotAIGeek for current pricing.

What is the iSAGEBOT AMR Chassis M300 used for?

The iSAGEBOT AMR Chassis M300 is designed for 内部物流, 物料搬运, and 运输. It is used in 教育, 物流, and 制造业 settings.

What is the payload capacity of the iSAGEBOT AMR Chassis M300?

The iSAGEBOT AMR Chassis M300 has a payload capacity of 300 kg.

How much does the iSAGEBOT AMR Chassis M300 weigh?

The iSAGEBOT AMR Chassis M300 weighs 90 kg.

How fast is the iSAGEBOT AMR Chassis M300?

The iSAGEBOT AMR Chassis M300 can move at speeds of up to 5.4 km/h.
