描述

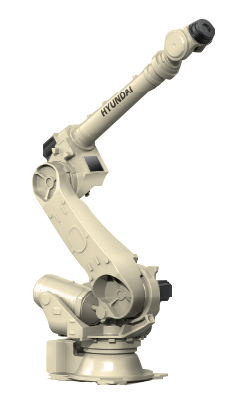

HDR150L-31 is an HD Hyundai Robotics 6-axis industrial articulated robot. It has rated payload 150 kg and maximum reach 3100 mm. Drive type: AC Servo. Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80. Previously designated HH150L.
功能特点
- 6-axis articulated configuration
- Rated payload 150 kg
- Maximum reach 3100 mm
- AC Servo drive
- Repeatability ±0.05 mm
- Manipulator mass 1380 kg
- Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80
- OEM applications: spot welding, material handling, machine tending
- Legacy designation: HH150L
技术规格
已验证| 物理参数 | |
| 重量 | 1380 kg |
|---|---|
| 负载 | 150 kg |
| 臂展 | 3.1 m |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
技术规格
已验证| 物理参数 | |
| 重量 | 1380 kg |
|---|---|
| 负载 | 150 kg |
| 臂展 | 3.1 m |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
martti
图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the HDR150L-31?
HDR150L-31 is an HD Hyundai Robotics 6-axis industrial articulated robot. It has rated payload 150 kg and maximum reach 3100 mm. Drive type: AC Servo. Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80. Previously designated HH150L.
Who makes the HDR150L-31?
The HDR150L-31 is made by Hyundai Robotics, a robotics company based in South Korea.
How much does the HDR150L-31 cost?
Hyundai Robotics has not publicly announced pricing for the HDR150L-31. You can enquire through RobotAIGeek for current pricing.
What is the HDR150L-31 used for?
The HDR150L-31 is designed for 组装, 机床操作, 物料搬运, and 焊接. It is used in 汽车 and 制造业 settings.
What is the payload capacity of the HDR150L-31?
The HDR150L-31 has a payload capacity of 150 kg and a reach of 3.1 m.
How much does the HDR150L-31 weigh?
The HDR150L-31 weighs 1,380 kg.
How many degrees of freedom does the HDR150L-31 have?
The HDR150L-31 has 6 degrees of freedom.
