描述

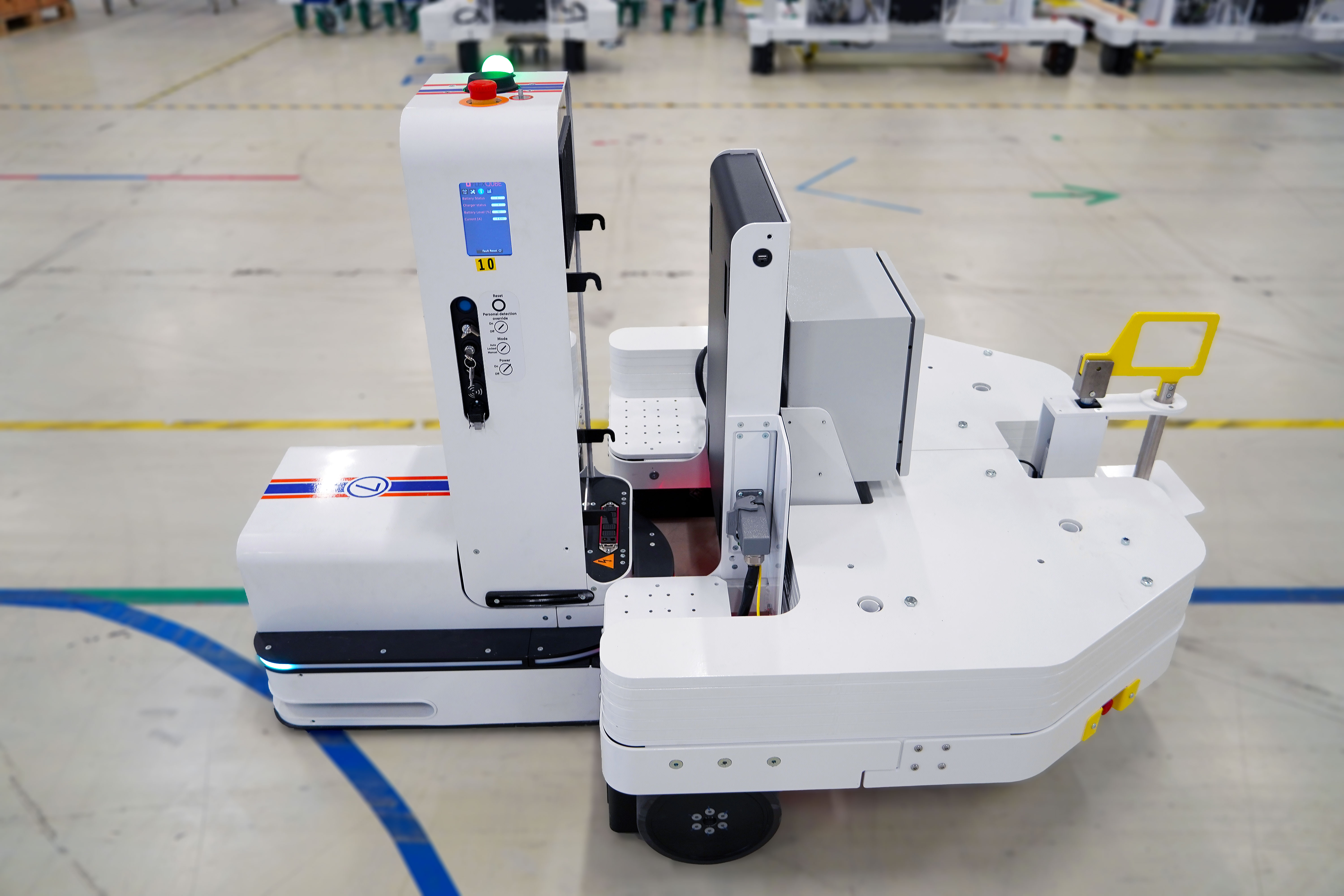

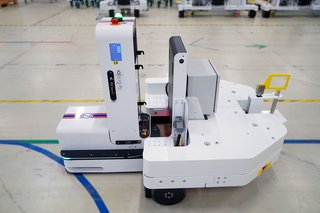

Non-load-carrying AMR that docks under FlexQube's motorized load carriers through a standardized coupling, powering and steering whichever carrier the job needs - flatbed, towing or roller.
功能特点

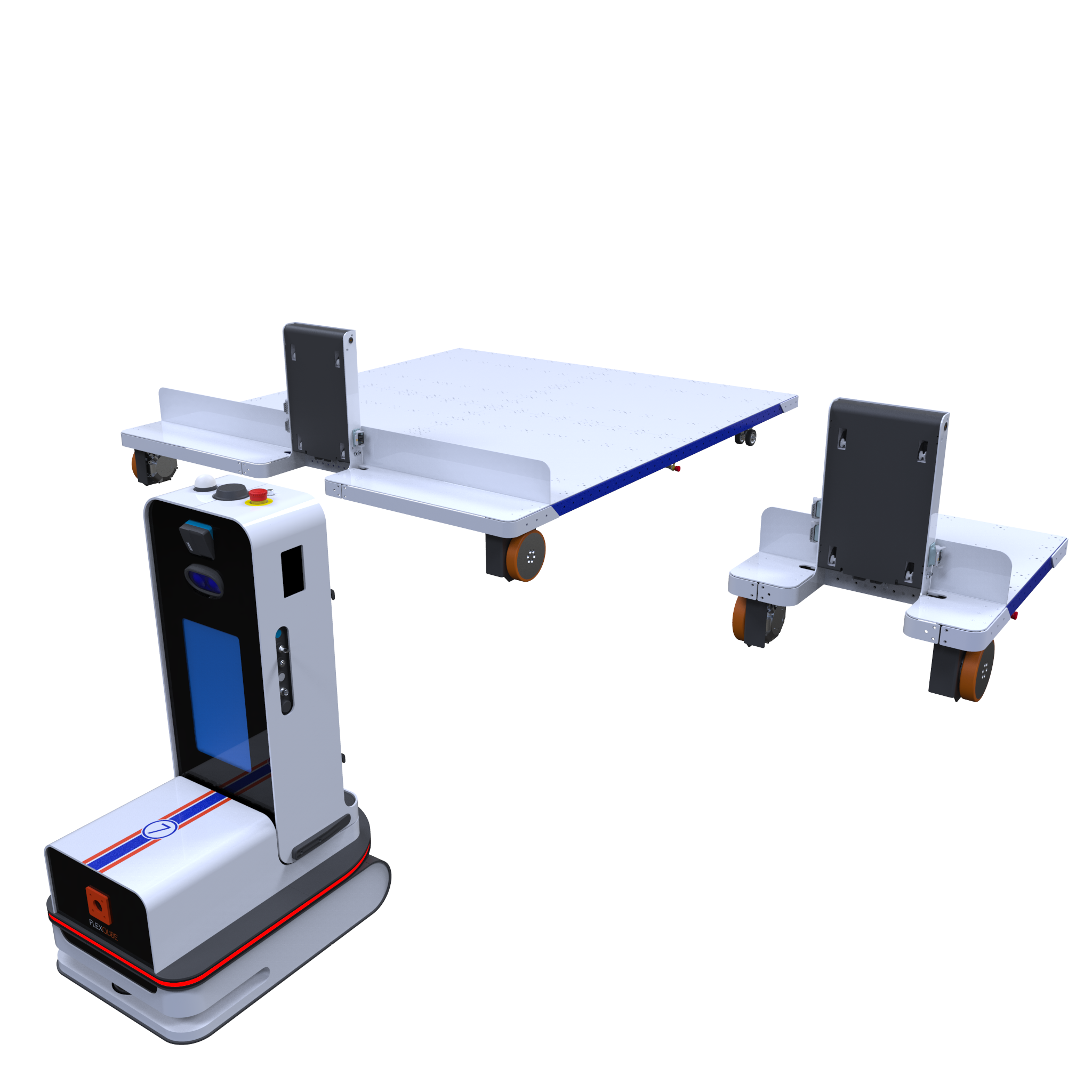

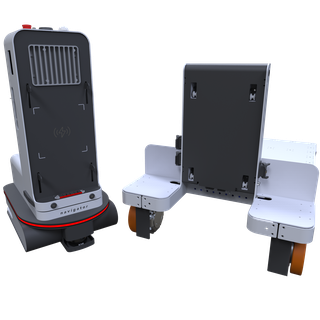

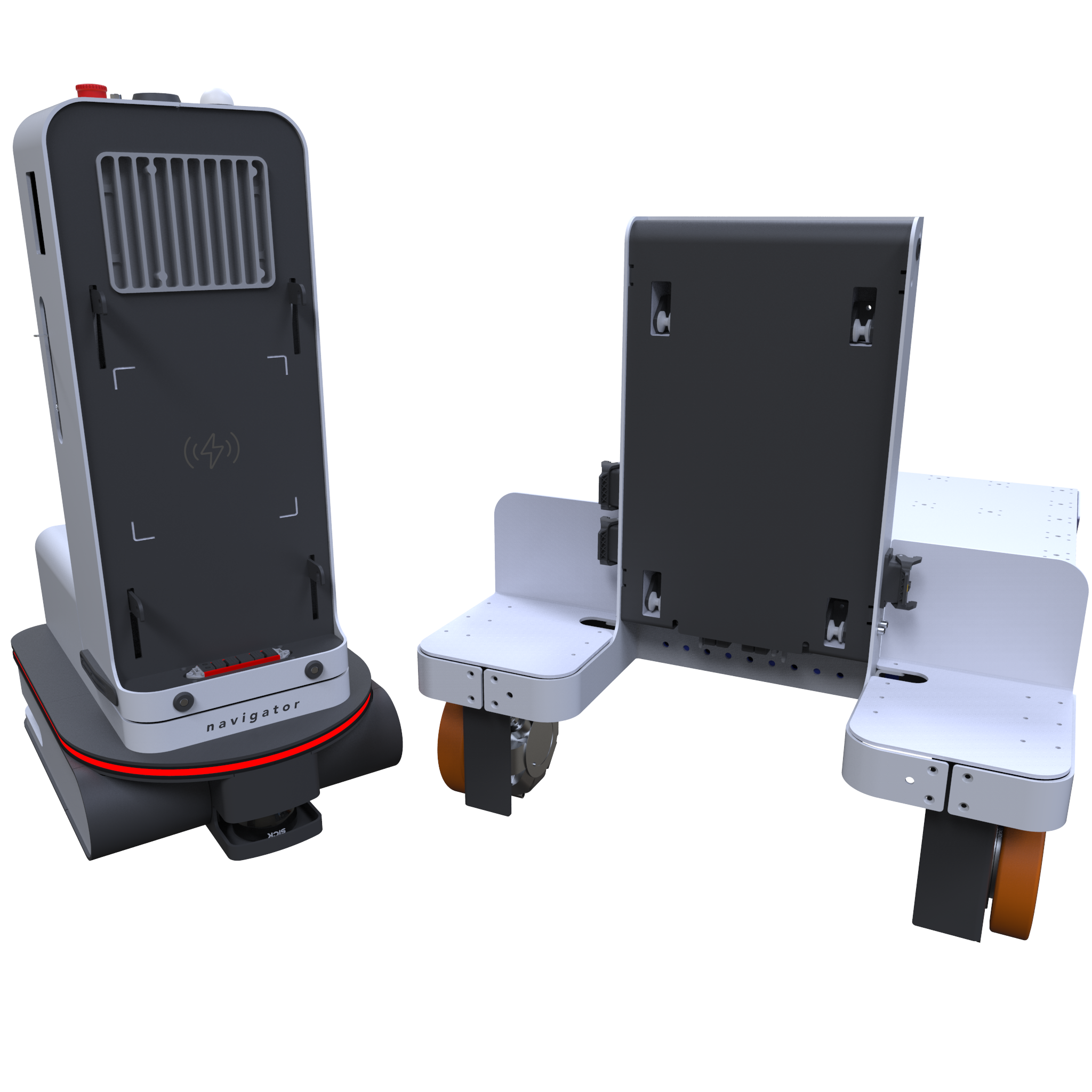

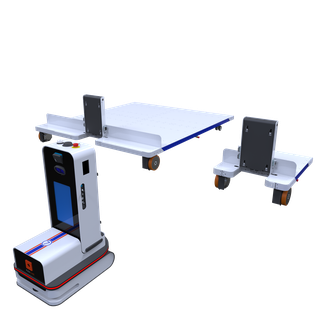

- One robot, many carriers: the Navigator carries no load itself and docks to motorized load carriers through a standardized coupling that transfers both power and data to the carrier's motors.
- Carrier range: Flatbed (Q-100-6673), Towing (Q-100-8145) and Roller (Q-100-8194) load carriers
- flatbed and roller carriers are built from 910 x 840 mm up to 2520 x 2520 mm.

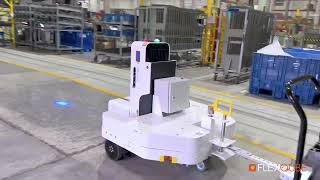

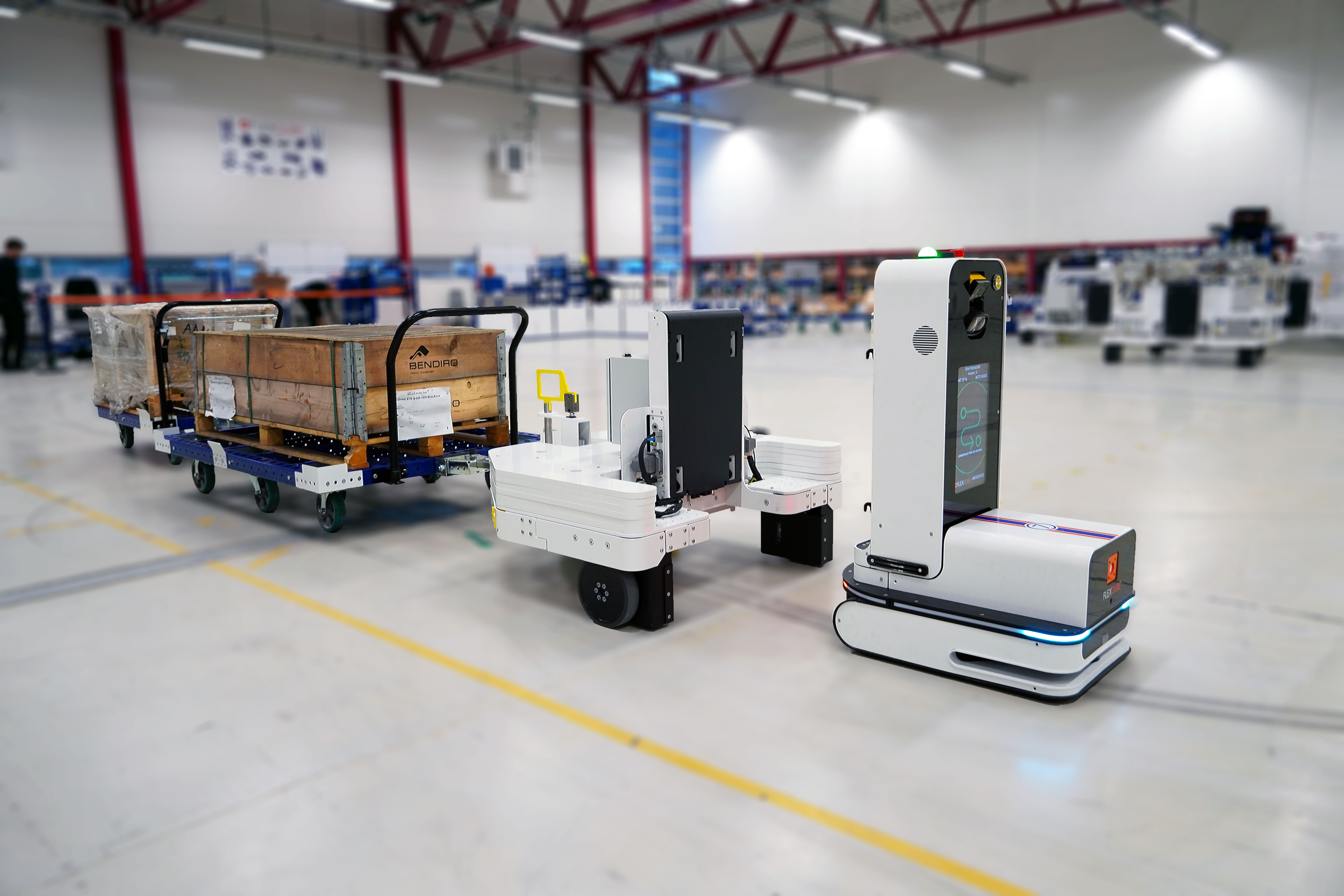

- Towing capacity 2,500 kg (5,500 lbs) with the towing load carrier.
- BlueBotics ANT natural-feature navigation and fleet management - no floor tape, magnets or reflectors, and minimal infrastructure change.
- Wiferion inductive charging with no contact between pad and receiver, mounted on the rear and underside
- roughly one minute of charge per fifteen minutes of operation.
- SICK safety laser scanner and a people-friendly profile for shared factory aisles.
- Roller carrier adds automatic roller height adjustment and motorized rollers, so pallets transfer to and from roller racks without the robot stopping to be loaded.
技术规格
已验证| 物理参数 | |
| 负载 | 2500 kg |
|---|---|
| 移动能力 | |
| 运动类型 | 带轮的 |

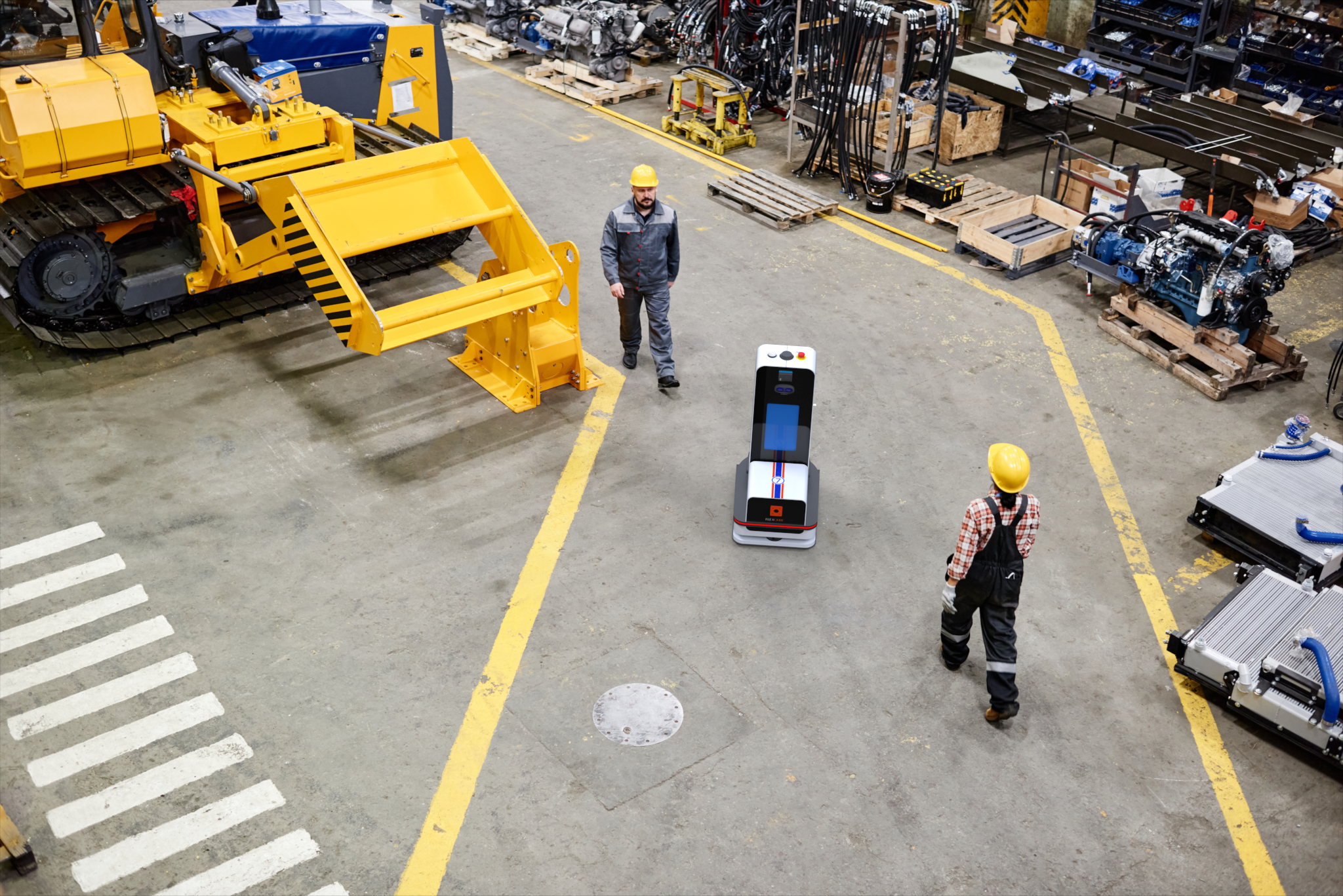

| 作业环境 | Indoor manufacturing and warehouse floors, shared with pedestrian traffic |
| 电源与续航 | |
| 充电类型 | Wiferion inductive (contactless), rear and underside receivers |
| 感知与计算 | |
| 传感器 | SICK safety laser scanner, Natural-feature navigation laser (BlueBotics ANT) |
| 连接方式 | ANT fleet management over the site network; standardized coupling carries power and data to the docked carrier |
| 软件 / AI | BlueBotics ANT navigation and ANT fleet management |
技术规格
已验证| 物理参数 | |
| 负载 | 2500 kg |
|---|---|
| 移动能力 | |
| 运动类型 | 带轮的 |
| 作业环境 | Indoor manufacturing and warehouse floors, shared with pedestrian traffic |
| 电源与续航 | |
| 充电类型 | Wiferion inductive (contactless), rear and underside receivers |
| 感知与计算 | |
| 传感器 | SICK safety laser scanner, Natural-feature navigation laser (BlueBotics ANT) |
| 连接方式 | ANT fleet management over the site network; standardized coupling carries power and data to the docked carrier |
| 软件 / AI | BlueBotics ANT navigation and ANT fleet management |
martti
martti
martti
martti
martti
martti图片贡献
机器人论坛
正在加载论坛...
评分
常见问题
What is the FlexQube Navigator AMR?
Non-load-carrying AMR that docks under FlexQube's motorized load carriers through a standardized coupling, powering and steering whichever carrier the job needs - flatbed, towing or roller.
Who makes the FlexQube Navigator AMR?
The FlexQube Navigator AMR is made by FlexQube, a robotics company based in Sweden.
How much does the FlexQube Navigator AMR cost?
FlexQube has not publicly announced pricing for the FlexQube Navigator AMR. You can enquire through RobotAIGeek for current pricing.
What is the FlexQube Navigator AMR used for?
The FlexQube Navigator AMR is designed for 重载运输, 内部物流, 正在加载, and 物料搬运. It is used in 汽车, 物流, and 制造业 settings.
What is the payload capacity of the FlexQube Navigator AMR?
The FlexQube Navigator AMR has a payload capacity of 2,500 kg.
