描述

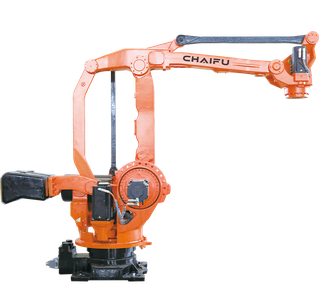

The SF500-C3200 PA is a 500 kg heavy-duty palletising robot in CHAIFU's ALPHTIC PA series, a vertically articulated industrial robot with 4 axes and a maximum reach of 3177 mm. Repeatability is ±0.3mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection. The 4-axis palletising build carries up to 3,000 kg with LIKEPRECISION RV reducers; base axes are IP65 and wrist axes IP67. CHAIFU builds the ALPHTIC PA series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for heavy palletising and bulk material handling.
功能特点
- ALPHTIC PA series heavy-duty palletising robot
- Payload 500 kg
- Maximum reach 3177 mm
- 4 axes, vertically articulated
- Repeatability ±0.3mm
- Drive: AC Servo Motor
- Protection IP 65 (The wrist is protected to IP 67)
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
技术规格
已验证| 物理参数 | |
| 负载 | 500 kg |
|---|---|
| 臂展 | 3.18 m |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 4 |
| 操作能力 | 高 |
| 作业环境 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| 执行器 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
技术规格
已验证| 物理参数 | |
| 负载 | 500 kg |
|---|---|
| 臂展 | 3.18 m |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 4 |
| 操作能力 | 高 |
| 作业环境 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| 执行器 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the CHAIFU SF500-C3200 PA?
The SF500-C3200 PA is a 500 kg heavy-duty palletising robot in CHAIFU's ALPHTIC PA series, a vertically articulated industrial robot with 4 axes and a maximum reach of 3177 mm. Repeatability is ±0.3mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection.
Who makes the CHAIFU SF500-C3200 PA?
The CHAIFU SF500-C3200 PA is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF500-C3200 PA cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF500-C3200 PA. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF500-C3200 PA used for?
The CHAIFU SF500-C3200 PA is designed for 物料搬运 and 码垛. It is used in 物流 and 制造业 settings.
What is the payload capacity of the CHAIFU SF500-C3200 PA?
The CHAIFU SF500-C3200 PA has a payload capacity of 500 kg and a reach of 3.18 m.
How many degrees of freedom does the CHAIFU SF500-C3200 PA have?
The CHAIFU SF500-C3200 PA has 4 degrees of freedom.
