描述

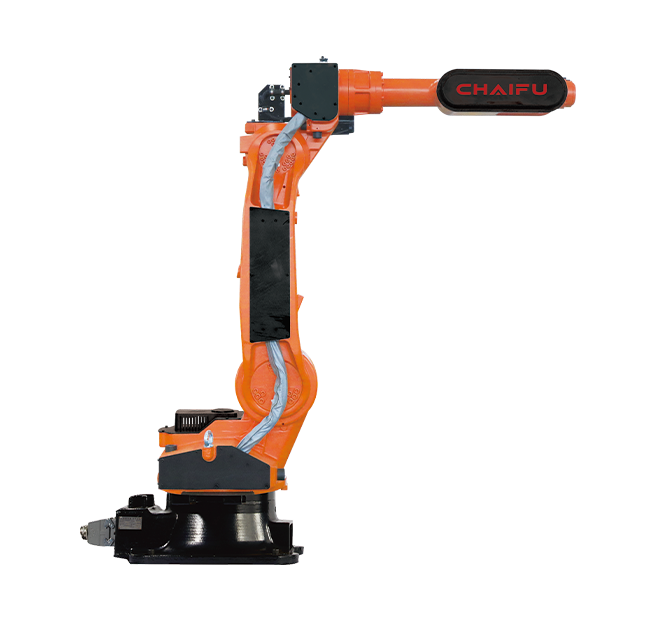

The SF30-C1850 is a 30 kg medium-payload robot in CHAIFU's MIMETIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 1850 mm. Repeatability is ±0.06mm and it is driven by ac servo motors, with IP 65 protection. MIMETIC robots have a rugged construction and powerful motors, and can use vision tracking, force sensors, autonomous learning and CHAIFU's intelligent programs. CHAIFU builds the MIMETIC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for handling, machine tending, assembly and general production work.
功能特点
- MIMETIC series medium-payload robot
- Payload 30 kg
- Maximum reach 1850 mm
- 6 axes, vertical articulated
- Repeatability ±0.06mm
- Drive: AC Servo Motor
- Protection IP 65
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
技术规格
已验证| 物理参数 | |
| 负载 | 30 kg |
|---|---|
| 臂展 | 1.85 m |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 操作能力 | 高 |
| 作业环境 | Industrial production environments; IP 65. |
| 执行器 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
技术规格
已验证| 物理参数 | |
| 负载 | 30 kg |
|---|---|
| 臂展 | 1.85 m |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 操作能力 | 高 |
| 作业环境 | Industrial production environments; IP 65. |
| 执行器 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the CHAIFU SF30-C1850?
The SF30-C1850 is a 30 kg medium-payload robot in CHAIFU's MIMETIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 1850 mm. Repeatability is ±0.06mm and it is driven by ac servo motors, with IP 65 protection.
Who makes the CHAIFU SF30-C1850?
The CHAIFU SF30-C1850 is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF30-C1850 cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF30-C1850. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF30-C1850 used for?
The CHAIFU SF30-C1850 is designed for 组装, 机床操作, and 拾放. It is used in 汽车 and 制造业 settings.
What is the payload capacity of the CHAIFU SF30-C1850?
The CHAIFU SF30-C1850 has a payload capacity of 30 kg and a reach of 1.85 m.
How many degrees of freedom does the CHAIFU SF30-C1850 have?
The CHAIFU SF30-C1850 has 6 degrees of freedom.
