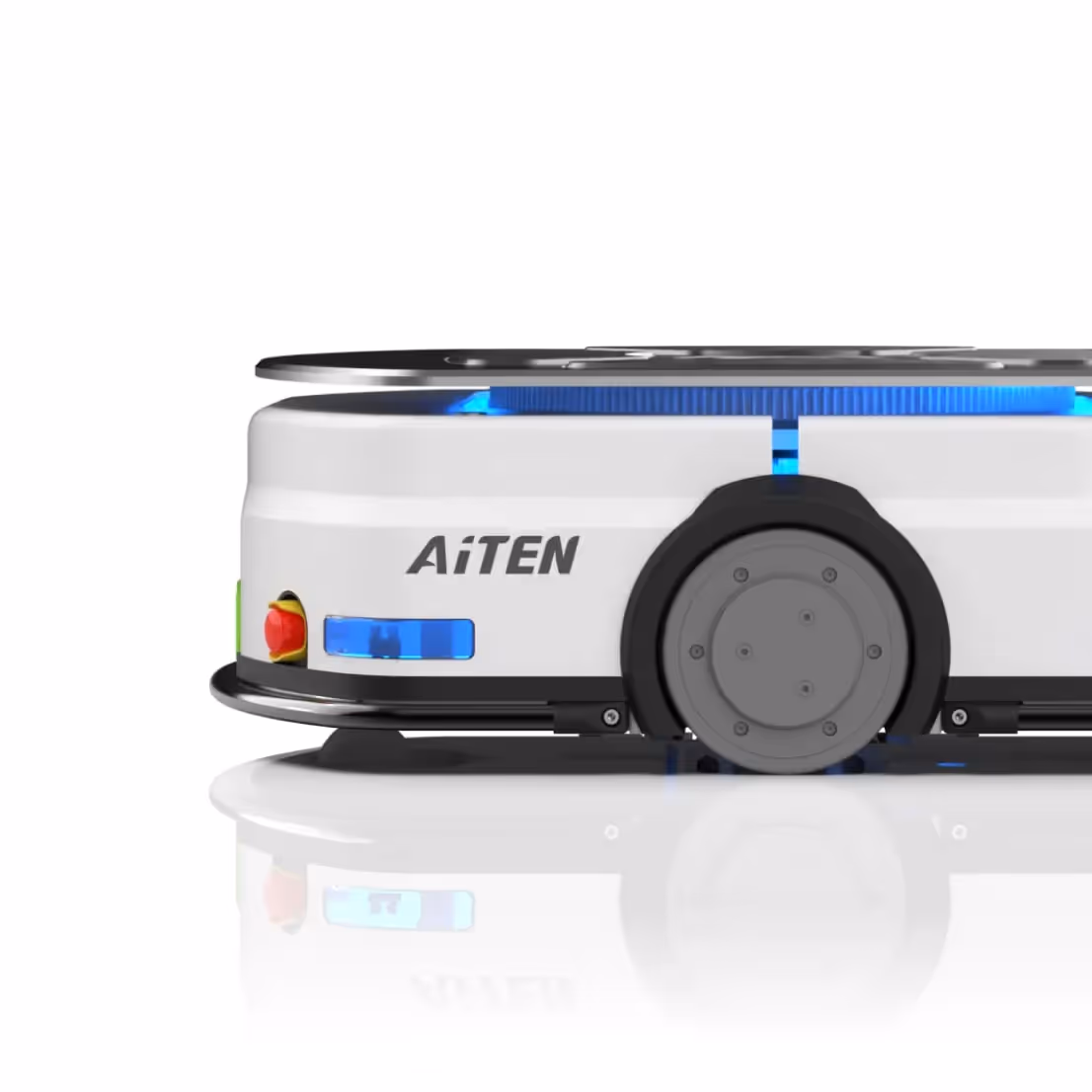

AiTEN TP30

Suzhou Aiten Intelligent Technology Co.,Ltd.
AMRChinaChina已发布
AiTEN TP30
对比
来源：
aitenrobot.com
行业：
汽车物流制造业
用途：
物料搬运码垛运输
价格：
未公布

描述

The AiTEN TP30 is a latent-lifting autonomous mobile robot in AiTEN's TP series - latent load & top lifting autonomous mobile robot. It has a rated load of 300 kg and lifts to 60 mm, travelling at up to 1.9/1.3. It measures 750 × 540 × 230 mm. The AiTEN TP series consists of cutting-edge autonomous mobile robots (AMR) characterized by a compact, modular design. The TP series adopts a centrally mounted dual-differential wheel chassis system paired with a top lifting mechanism. This, integrated with AiTEN’s state-of-the-art laser SLAM navigation technology, enables autonomous navigation and obstacle avoidance, allowing for flexible and effective operations in complex, industrial environments. The vehicle navigates with AiTEN's in-house laser SLAM, avoids obstacles autonomously and is scheduled through the AiTEN RDS (Robot Dispatch System) for multi-robot collaboration, with automatic charging for continuous operation. Power comes from a 48V / 20.8 Ah battery.

功能特点

  • Latent-lifting autonomous mobile robot (TP series)
  • Dimensions (L × W × H): 750 × 540 × 230 mm
  • Rated Load: 300 kg
  • Lifting Height: 60 mm
  • Standard Safe Aisle Width: 950 mm
  • Travel Speed (no-load / full-load): 1.9/1.3
  • Battery Voltage/Capacity: 48V / 20.8 Ah
  • Laser SLAM navigation with autonomous obstacle avoidance
  • AiTEN RDS fleet scheduling and multi-robot collaboration
  • Modular design with configurable forks and accessories
  • Automatic charging for 24/7 operation

技术规格

物理参数
外形尺寸L 750 mm × H 230 mm
负载300 kg
移动能力
运动类型带轮的
速度6.8 km/h
作业环境Indoor warehouses, distribution centres and production facilities.
电源与续航
续航时间48V / 20.8 Ah
感知与计算
传感器Laser SLAM scanner, Obstacle-detection sensors, Pallet-recognition perception system
软件 / AIAiTEN laser SLAM navigation; RDS (Robot Dispatch System) fleet scheduling
来源：制造商官网来源：第三方暂无来源来源状态基于该机器人已登记的资料来源。

常见问题

What is the AiTEN TP30?

The AiTEN TP30 is a latent-lifting autonomous mobile robot in AiTEN's TP series - latent load & top lifting autonomous mobile robot. It has a rated load of 300 kg and lifts to 60 mm, travelling at up to 1.9/1.3. It measures 750 × 540 × 230 mm.

Who makes the AiTEN TP30?

The AiTEN TP30 is made by Suzhou Aiten Intelligent Technology Co.,Ltd., a robotics company based in China.

How much does the AiTEN TP30 cost?

Suzhou Aiten Intelligent Technology Co.,Ltd. has not publicly announced pricing for the AiTEN TP30. You can enquire through RobotAIGeek for current pricing.

What is the AiTEN TP30 used for?

The AiTEN TP30 is designed for 物料搬运, 码垛, and 运输. It is used in 汽车, 物流, and 制造业 settings.

What is the payload capacity of the AiTEN TP30?

The AiTEN TP30 has a payload capacity of 300 kg.

How fast is the AiTEN TP30?

The AiTEN TP30 can move at speeds of up to 6.8 km/h.
