SR6D-802

Industrial-RobotChinaChina출시됨
SR6D-802
비교

설명

SR6D-802은(는) Tianji Gento의 Industrial-Robot입니다. 조립, 자재 취급, 피킹 용도로 설계되었습니다. 주요 수치: 21.5 kg, 가반 하중 6 kg, 도달 범위 800 mm, 4 자유도.

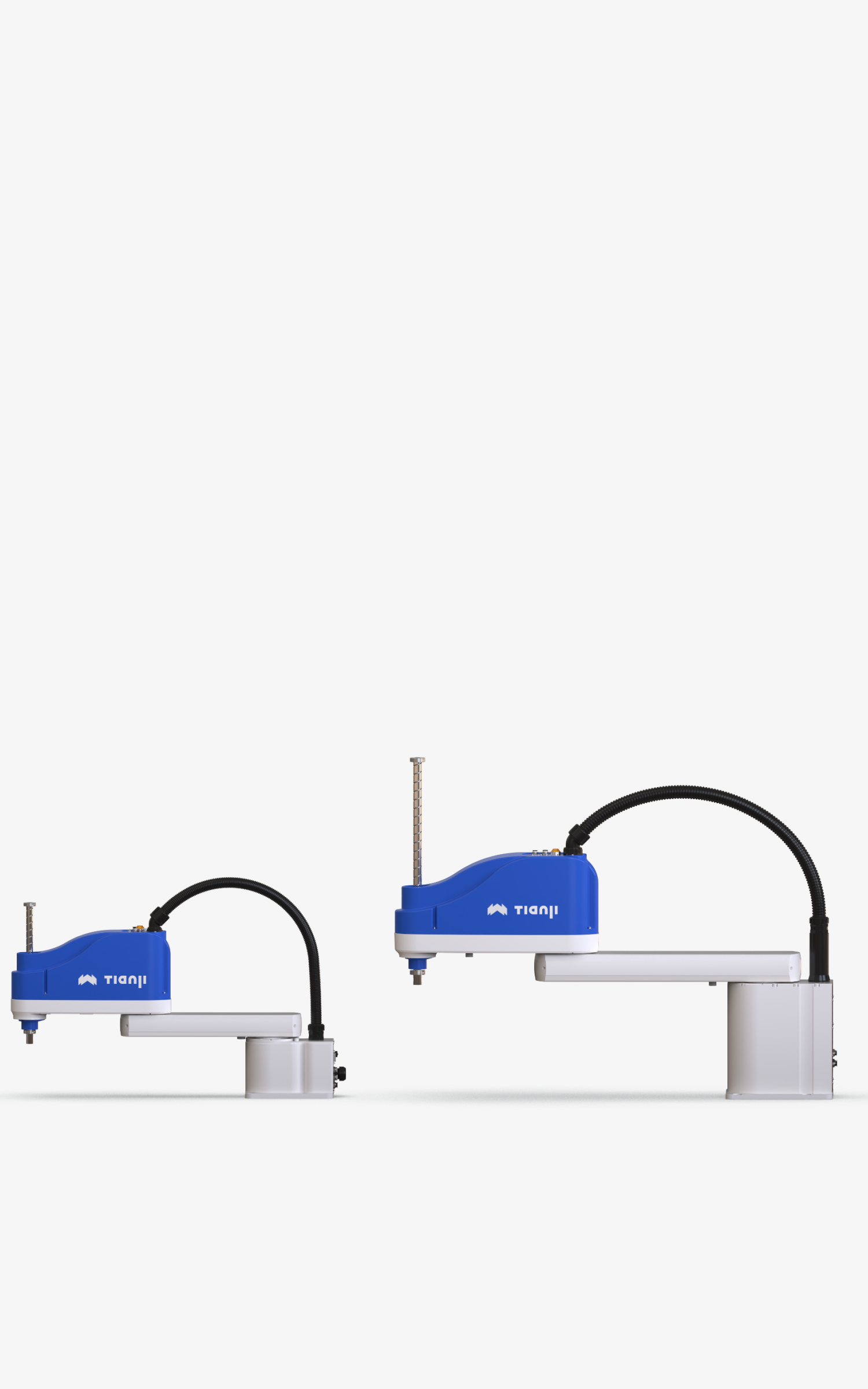

The SR6D-802 is a four-axis SCARA robot from Tianji with a 800 mm arm and 6 kg payload. It repeats to ±0.02 mm on the J1+J2 axes and completes the standard cycle in 0.48s, with a 200 (400) mm Z-axis stroke. The high-rigidity arm and robot-specific motors hold accuracy at speed for loading, assembly, inspection and palletising.

주요 기능

  • 6 kg payload on a 800 mm arm
  • ±0.02 mm J1+J2 repeatability
  • 0.48s standard cycle time
  • 200 (400) mm Z-axis stroke
  • 21.5 kg body weight
  • High-rigidity arm for stable high-speed operation

기술 사양

검증됨
물리 사양
무게21.5 kg
가반하중6 kg
도달거리800 mm
반복 정밀도±0.02 mm
이동성
이동 방식고정형
자유도4
제조사 출처서드파티 출처출처 없음출처 상태는 이 로봇에 등록된 출처를 기준으로 합니다.

로봇 포럼

포럼 불러오는 중...

자주 묻는 질문

What is the SR6D-802?

The SR6D-802 is a four-axis SCARA robot from Tianji with a 800 mm arm and 6 kg payload. It repeats to ±0.02 mm on the J1+J2 axes and completes the standard cycle in 0.48s, with a 200 (400) mm Z-axis stroke.

Who makes the SR6D-802?

The SR6D-802 is made by Tianji Gento, a robotics company based in China.

How much does the SR6D-802 cost?

Tianji Gento has not publicly announced pricing for the SR6D-802. You can enquire through RobotAIGeek for current pricing.

What is the SR6D-802 used for?

The SR6D-802 is designed for 조립, 자재 취급, and 피킹. It is used in 자동차, 전자, and 제조 settings.

What is the payload capacity of the SR6D-802?

The SR6D-802 has a payload capacity of 6 kg and a reach of 800 mm.

How much does the SR6D-802 weigh?

The SR6D-802 weighs 21.5 kg.

How many degrees of freedom does the SR6D-802 have?

The SR6D-802 has 4 degrees of freedom.
