설명

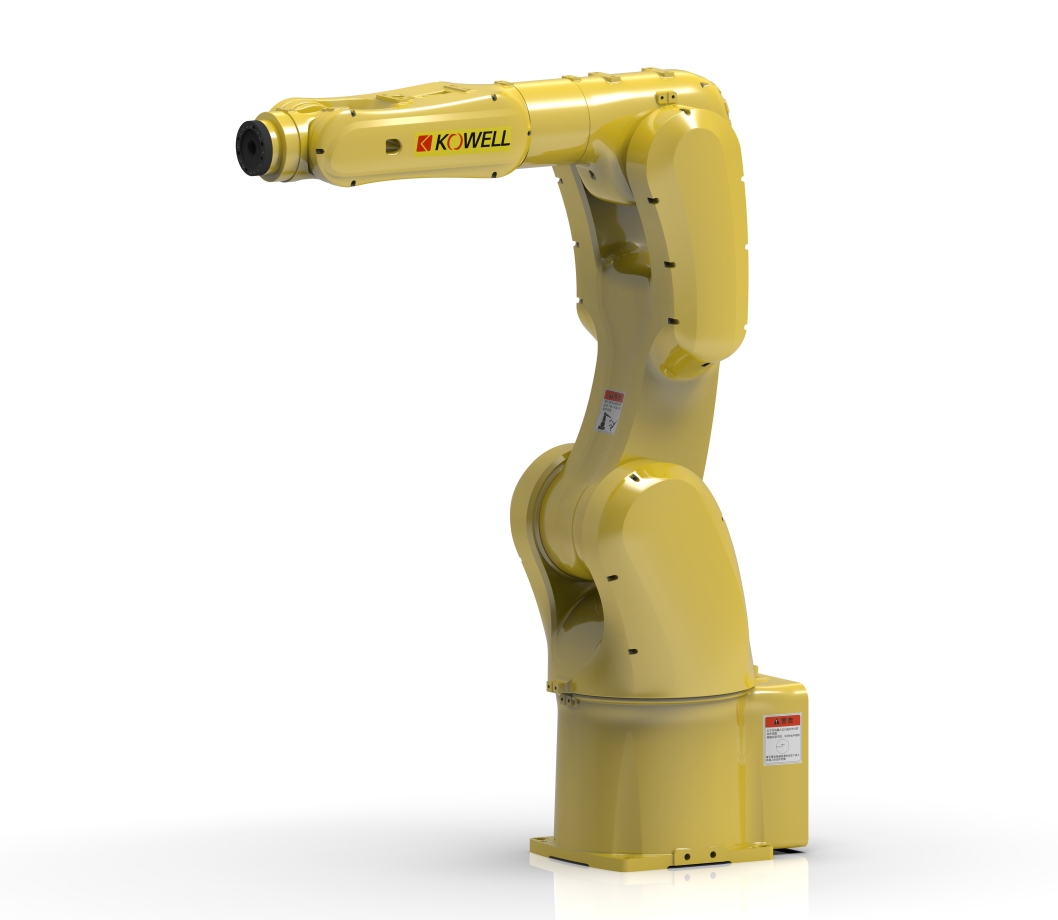

A 10 kg six-axis industrial arm with a 920 mm working radius, repeatable to ±0.02 mm at 47 kg body weight. Suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C, medical, and food.
주요 기능

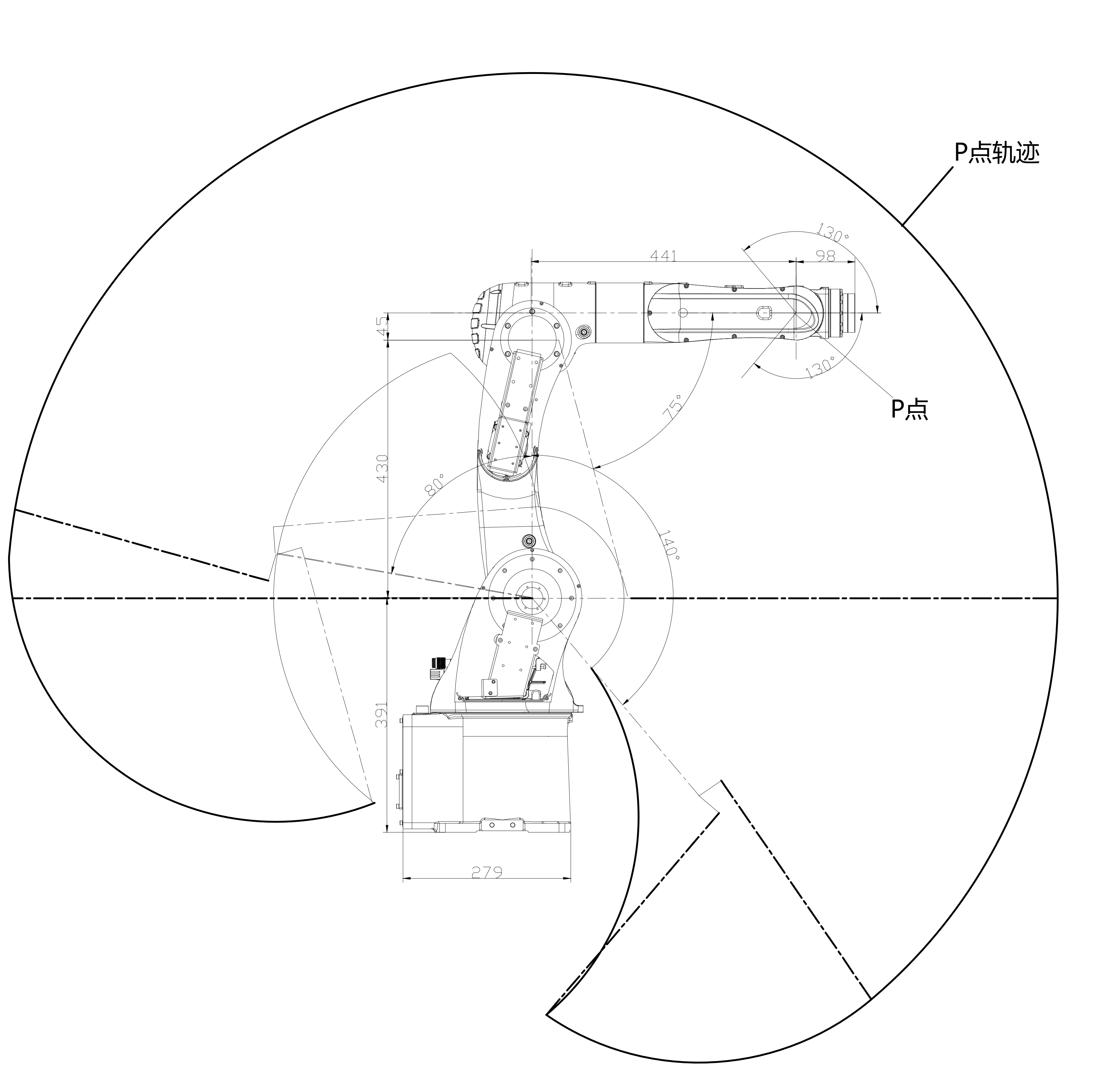

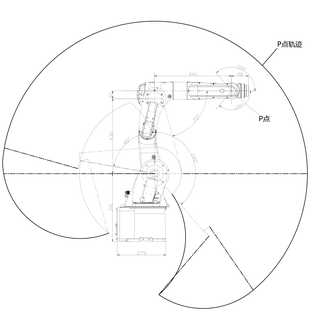

- Vertically articulated six-axis arm rated 10 kg payload with a 920 mm working radius.
- Position repetition accuracy of ±0.02 mm
- body weight 47 kg.
- Power capacity 3.0 kVA
- protection rated equivalent to IP67.
- Mounts floor standing, bracket standing or inverted (hanging).
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- Robot 6 axis arm KW1010B-920 with a payload of 10kg, suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C, medical, and food.

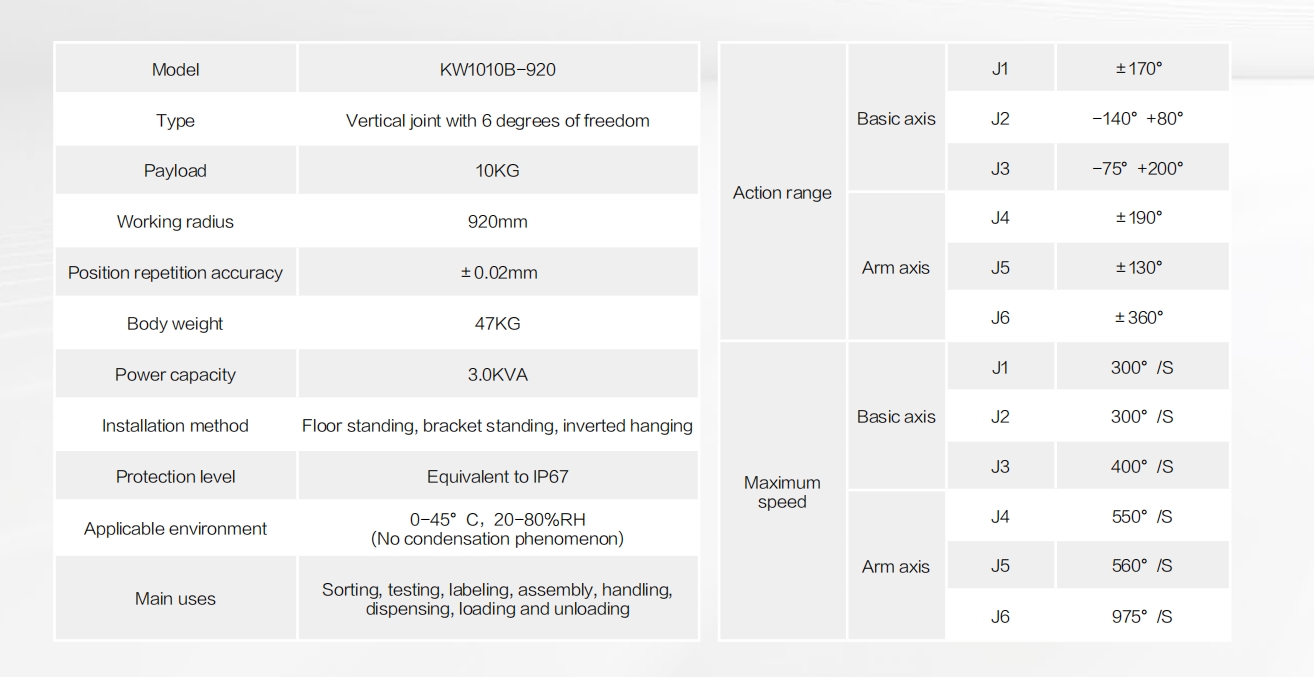

기술 사양
검증됨| 물리 사양 | |
| 무게 | 47 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 920 mm |
| 반복 정밀도 | ±0.02 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 작동 환경 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 47 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 920 mm |
| 반복 정밀도 | ±0.02 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 작동 환경 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
이미지
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Robot 6 axis arm KW1010B-920?
A 10 kg six-axis industrial arm with a 920 mm working radius, repeatable to ±0.02 mm at 47 kg body weight. Suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C, medical, and food.
Who makes the Robot 6 axis arm KW1010B-920?
The Robot 6 axis arm KW1010B-920 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Robot 6 axis arm KW1010B-920 cost?
Shandong Kewei Robot has not publicly announced pricing for the Robot 6 axis arm KW1010B-920. You can enquire through RobotAIGeek for current pricing.
What is the Robot 6 axis arm KW1010B-920 used for?
The Robot 6 axis arm KW1010B-920 is designed for 조립, 디스펜싱, 자재 취급, and 분류. It is used in 전자, 헬스케어, and 제조 settings.
What is the payload capacity of the Robot 6 axis arm KW1010B-920?
The Robot 6 axis arm KW1010B-920 has a payload capacity of 10 kg and a reach of 920 mm.
How much does the Robot 6 axis arm KW1010B-920 weigh?
The Robot 6 axis arm KW1010B-920 weighs 47 kg.
How many degrees of freedom does the Robot 6 axis arm KW1010B-920 have?
The Robot 6 axis arm KW1010B-920 has 6 degrees of freedom.
