설명
Reach Truck Series Forklift Robot (FMR)은(는) Hangcha의 Industrial-Robot입니다. 사내 물류, 자재 취급, 운반 용도로 설계되었습니다. 주요 수치: 가동 시간 360분, 가반 하중 3000 kg.

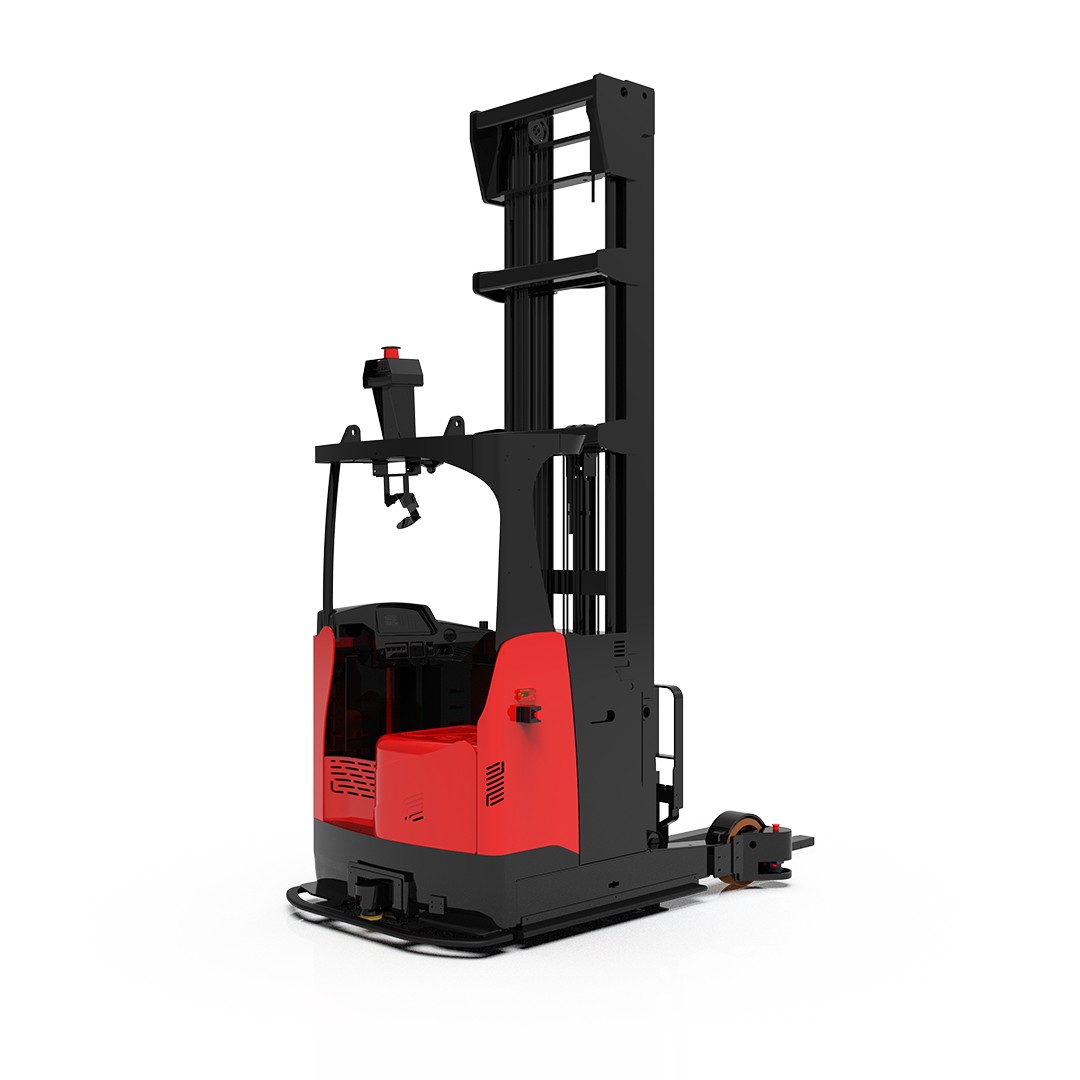

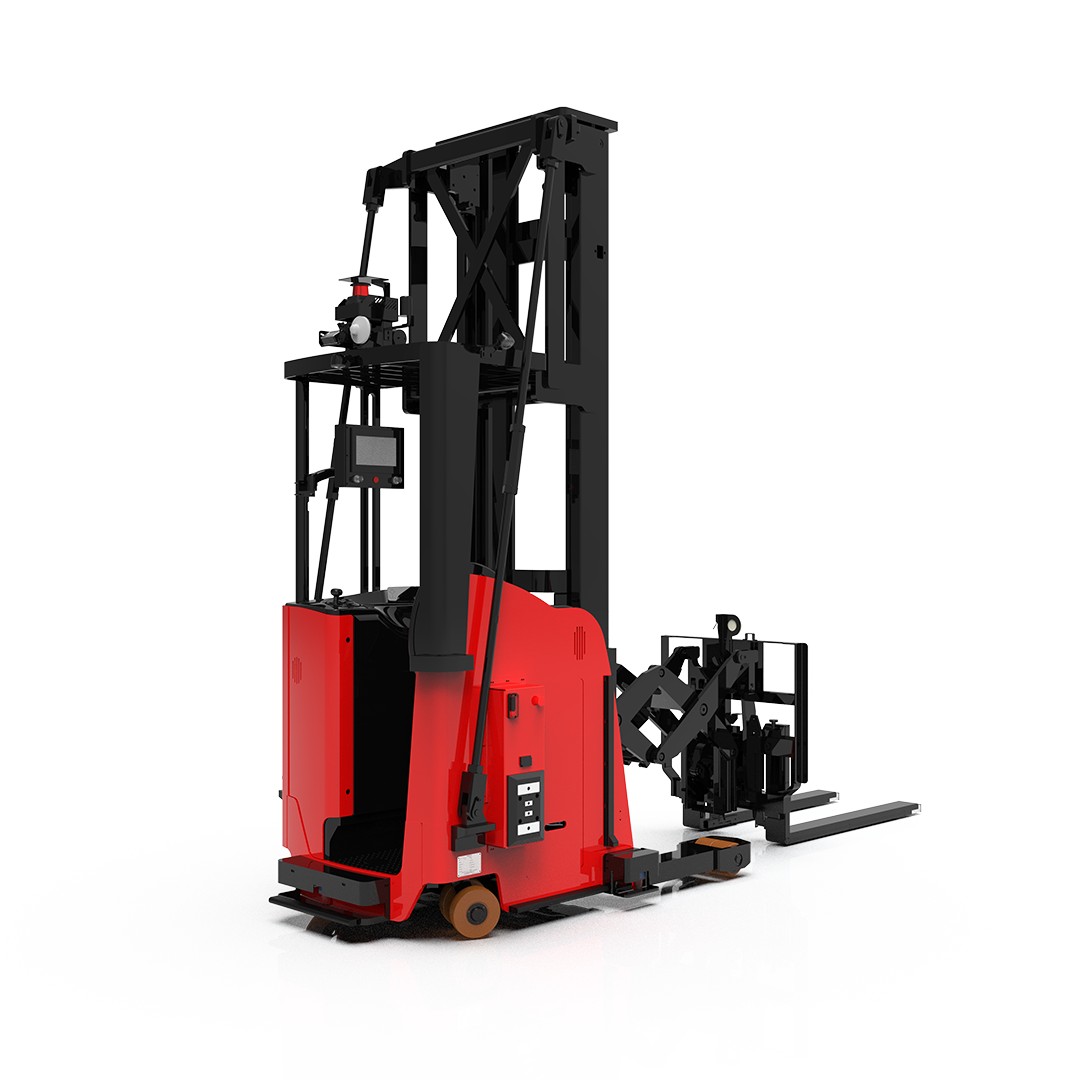

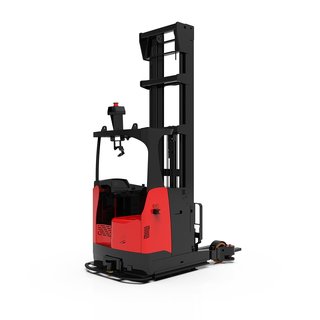

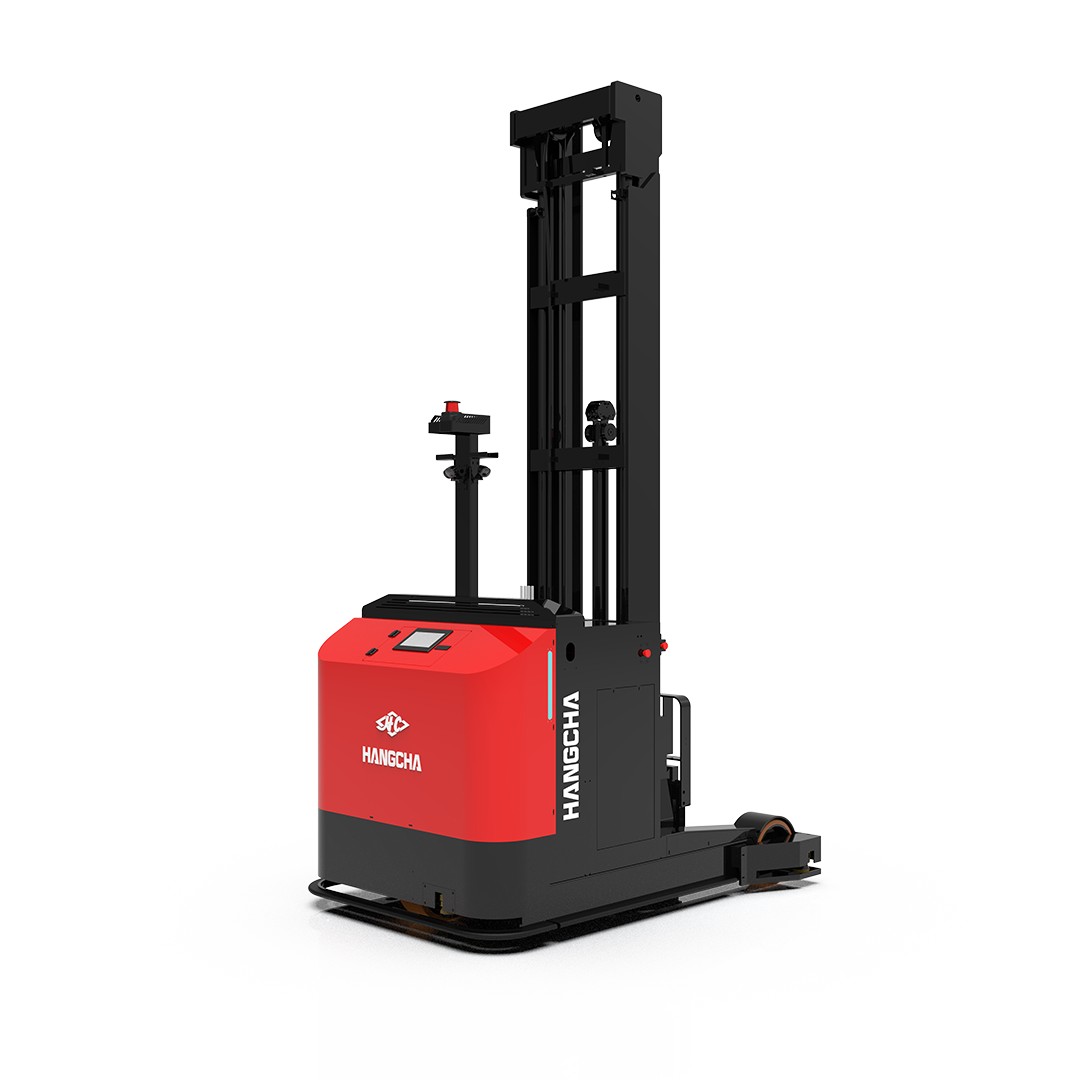

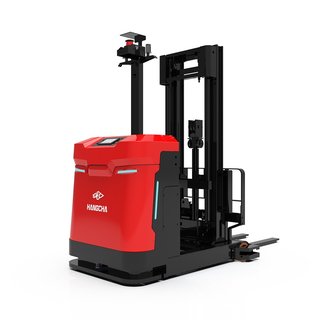

Hangcha's Reach Truck Series forklift robots handle high-bay racking and transport in narrow spaces. The series covers 1.5-3 t loads and, per Hangcha, lift heights up to 12 m. It accepts zigzag, cross-shaped and European pallets, and every model has 360-degree planar obstacle avoidance plus 3D protection against collisions with people and objects. Listed models include the 1.6 t and 2.0 t Mini Forward-Moving FMRs (2.7 m lift), a 1.6 t double-deep reach FMR (5.03 m) and 1.6 t, 2.0 t and 3.0 t high-position reach FMRs lifting 5-6 m at up to 1.7 m/s. All navigate by 2D/3D SLAM and run 6-8 hours per charge.
주요 기능
- 1.6t Mini Forward-Moving FMR: Rated load 1600 (Kg)
- Lifting height 2700 (mm)
- Minimum tunnel requirement 2785 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 2.0t Mini Forward-Moving FMR: Rated load 2000 (Kg)
- Lifting height 2700 (mm)
- Minimum tunnel requirement 3025 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 1.6t double-deep forward-moving FMR: Rated load 1600 (Kg)
- Lifting height 5030 (mm)
- Minimum tunnel requirement 3325 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 1.6t High-position forward-moving FMR: Rated load 1600 (Kg)
- Lifting height 6000 (mm)
- Minimum tunnel requirement 3448 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1700 (mm/s)
- Rated operating time 6-8 (h)
- 2.0t high-position forward-moving FMR: Rated load 2000 (Kg)
- Lifting height 6000 (mm)
- Minimum tunnel requirement 3569 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1700 (mm/s)
- Rated operating time 6-8 (h)
- 3.0t High-position forward-moving FMR: Rated load 3000 (Kg)
- Lifting height 5000 (mm)
- Minimum tunnel requirement 3625 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 3000 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 6.1 km/h |
| 작동 환경 | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| 전원 | |
| 배터리 지속 시간 | 360 min |
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 3000 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 6.1 km/h |
| 작동 환경 | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| 전원 | |
| 배터리 지속 시간 | 360 min |
이미지
martti
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Reach Truck Series Forklift Robot (FMR)?
Hangcha's Reach Truck Series forklift robots handle high-bay racking and transport in narrow spaces. The series covers 1.5-3 t loads and, per Hangcha, lift heights up to 12 m.
Who makes the Reach Truck Series Forklift Robot (FMR)?
The Reach Truck Series Forklift Robot (FMR) is made by Hangcha, a robotics company based in China.
How much does the Reach Truck Series Forklift Robot (FMR) cost?
Hangcha has not publicly announced pricing for the Reach Truck Series Forklift Robot (FMR). You can enquire through RobotAIGeek for current pricing.
What is the Reach Truck Series Forklift Robot (FMR) used for?
The Reach Truck Series Forklift Robot (FMR) is designed for 사내 물류, 자재 취급, 운반, and autonomous reach-truck robots that store 1.6-3 t pallets in high-bay racking. It is used in 창고·물류 and 제조 settings.
What is the payload capacity of the Reach Truck Series Forklift Robot (FMR)?
The Reach Truck Series Forklift Robot (FMR) has a payload capacity of 3,000 kg.
How fast is the Reach Truck Series Forklift Robot (FMR)?
The Reach Truck Series Forklift Robot (FMR) can move at speeds of up to 6.1 km/h.
What is the battery life of the Reach Truck Series Forklift Robot (FMR)?
The Reach Truck Series Forklift Robot (FMR) runs for about 360 minutes on a charge.
