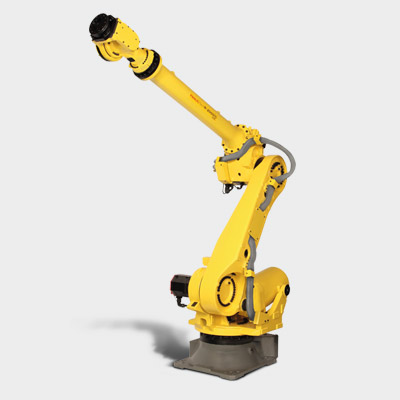

The FANUC R-2000iC/125L is a six-axis heavy-payload industrial robot from the R-2000 series, built around an extended arm that trades none of the series' rigidity for a 3100 mm reach. It handles 125 kg anywhere in that envelope at +/-0.05 mm repeatability, and its slim, floor-mounted design is intended to drop into crowded cells where a shorter-armed robot would need repositioning equipment.
주요 기능
- Six-axis articulated arm with 3100 mm reach and 125 kg maximum payload
- Repeatability of +/-0.05 mm across the full work envelope
- Mechanical weight 1115 kg
- Extended-reach variant of the R-2000 series for large work envelopes
- Axis speeds: J1 130 deg/s, J2 115 deg/s, J3 125 deg/s, J4 180 deg/s, J5 180 deg/s, J6 260 deg/s
- Wrist load moment / inertia: J4 710 Nm / 72 kgm2, J5 710 Nm / 72 kgm2, J6 355 Nm / 40 kgm2
- Controller: FANUC R-30iB Plus
- Mounting: floor
- Protection: IP54 body standard (IP56 optional)
- IP67 wrist and J3 arm
- Average power consumption: 3 kW
- Motion range: J1 370 deg, J2 136 deg, J3 301 deg, J4 720 deg, J5 250 deg, J6 720 deg
기술 사양
| 물리 사양 | |
| 무게 | 1115 kg |
|---|---|
| 가반하중 | 125 kg |
| 도달거리 | 3.1 m |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
기술 사양
| 물리 사양 | |
| 무게 | 1115 kg |
|---|---|
| 가반하중 | 125 kg |
| 도달거리 | 3.1 m |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
이미지
martti
martti
martti
martti이미지 기여
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the R-2000iC/125L?
The FANUC R-2000iC/125L is a six-axis heavy-payload industrial robot from the R-2000 series, built around an extended arm that trades none of the series' rigidity for a 3100 mm reach.
Who makes the R-2000iC/125L?
The R-2000iC/125L is made by FANUC, a robotics company based in Japan.
How much does the R-2000iC/125L cost?
FANUC has not publicly announced pricing for the R-2000iC/125L. You can enquire through RobotAIGeek for current pricing.
What is the R-2000iC/125L used for?
The R-2000iC/125L is designed for 조립, 디스펜싱, 머신 텐딩, and 자재 취급. It is used in 자동차 and 제조 settings.
What is the payload capacity of the R-2000iC/125L?
The R-2000iC/125L has a payload capacity of 125 kg and a reach of 3.1 m.
How much does the R-2000iC/125L weigh?
The R-2000iC/125L weighs 1,115 kg.
How many degrees of freedom does the R-2000iC/125L have?
The R-2000iC/125L has 6 degrees of freedom.
When was the R-2000iC/125L released?
The R-2000iC/125L was released in 2023.
