Peitian AIR6SC-750

Peitian Robot
Industrial-RobotChinaChina출시됨

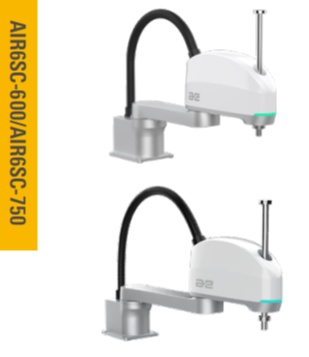

Peitian AIR6SC-750
비교
출처:
cdn.robotaigeek.com
산업:
연구제조
용도:
조립픽앤플레이스Electronics assemblypick-and-placemachine tool loading and unloadingpackaging
가격:
미공개

설명

The AIR6SC-750 is a four-axis SCARA from Peitian's AIR range, reaching 750 mm and rated for 2 kg with a 6 kg maximum. SCARA geometry trades the full articulation of a six-axis arm for stiffness in the vertical direction and speed in the horizontal plane, which is why this class dominates electronics assembly, pick-and-place and machine tending rather than welding or finishing. At 21.2 kg the arm itself is light enough to mount on a bench or a line frame. Peitian pairs it with its own inCube2S-6 controller cabinet. Ingress protection is IP20.

주요 기능

  • SCARA four-axis industrial robot arm
  • Rated payload 2 kg with a maximum payload of 6 kg
  • Axis 3 vertical stroke available in 200 / 300 / 400 / 600 mm options
  • Maximum reach 750 mm
  • Manipulator weight 21.2 kg
  • Ingress protection IP20
  • Mounting: Floor
  • Compatible controller cabinets: inCube2S-6
  • Working range Axis 1 -137°/+137°
  • Axis 2 -134°/+134°
  • Axis 4 -150°/+150°
  • Axis 4 wrist -150°/+150°
  • Axis 5 bend -360°/+360°
  • Axis 6 turn -360°/+360°
  • Rotation rate combined Axis 1 and Axis 2 400°/s
  • Axis 3 vertical 400°/s
  • Axis 4 650°/s
  • Axis 4 wrist 650°/s
  • Axis 5 bend 2300°/s
  • Axis 6 turn 2300°/s
  • Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
  • No corrosive, flammable or explosive gases permitted in the operating environment

기술 사양

물리 사양
무게21.2 kg
가반하중2 kg
도달거리750 mm
이동성
이동 방식고정형
자유도4
조작 능력높음
작동 환경Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases
액추에이터4-axis SCARA four-axis manipulator, mounted Floor
센싱 & 컴퓨팅
소프트웨어 / AIDriven by Peitian inCube2S-6 controller cabinets
제조사 출처서드파티 출처출처 없음출처 상태는 이 로봇에 등록된 출처를 기준으로 합니다.

자주 묻는 질문

What is the Peitian AIR6SC-750?

The AIR6SC-750 is a four-axis SCARA from Peitian's AIR range, reaching 750 mm and rated for 2 kg with a 6 kg maximum. SCARA geometry trades the full articulation of a six-axis arm for stiffness in the vertical direction and speed in the horizontal plane, which is why this class dominates electronics assembly, pick-and-…

Who makes the Peitian AIR6SC-750?

The Peitian AIR6SC-750 is made by Peitian Robot, a robotics company based in China.

How much does the Peitian AIR6SC-750 cost?

Peitian Robot has not publicly announced pricing for the Peitian AIR6SC-750. You can enquire through RobotAIGeek for current pricing.

What is the Peitian AIR6SC-750 used for?

The Peitian AIR6SC-750 is designed for 조립, 픽앤플레이스, electronics assembly, and pick-and-place. It is used in 연구 and 제조 settings.

What is the payload capacity of the Peitian AIR6SC-750?

The Peitian AIR6SC-750 has a payload capacity of 2 kg and a reach of 750 mm.

How much does the Peitian AIR6SC-750 weigh?

The Peitian AIR6SC-750 weighs 21.2 kg.

How many degrees of freedom does the Peitian AIR6SC-750 have?

The Peitian AIR6SC-750 has 4 degrees of freedom.
