Peitian AIR50-2230

Peitian Robot
Industrial-RobotChinaChina출시됨
Peitian AIR50-2230
비교
출처:
cdn.robotaigeek.com
산업:
연구제조
용도:
조립픽앤플레이스Loading and unloadinghandlingpalletisinginjection mouldingweldinggrinding and polishingdispensingpacking
가격:
미공개

설명

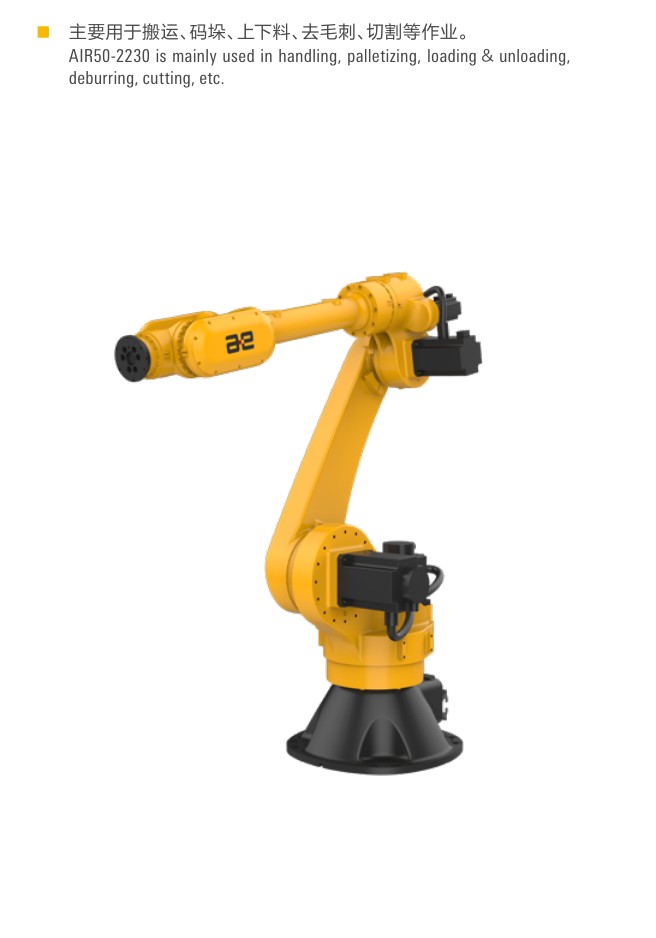

The AIR50-2230 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 50 kg to a reach of 2238 mm. Peitian quotes position repeatability of ±0.06mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 550 kg. It is sealed to IP54(Wrist: IP67), and can be mounted Floor. It runs on Peitian's ARC5-280 controller cabinet. AIR50-2230 is mainly used in handling, palletizing, loading unloading, deburring, cutting, etc.

주요 기능

  • Six-axis articulated industrial robot arm
  • Rated payload 50 kg
  • Maximum reach 2238 mm
  • Manipulator weight 550 kg
  • Position repeatability ±0.06mm
  • Ingress protection IP54(Wrist: IP67)
  • Mounting: Floor
  • Compatible controller cabinets: ARC5-280
  • Working range Axis 1 rotation -185°/+185°
  • Axis 2 arm -75°/+145°
  • Axis 3 arm -120°/+170°
  • Axis 4 wrist -350°/+350°
  • Axis 5 bend -120°/+120°
  • Axis 6 turn -360°/+360°
  • Rotation rate Axis 1 rotation 180°/s
  • Axis 2 arm 180°/s
  • Axis 3 arm 180°/s
  • Axis 4 wrist 260°/s
  • Axis 5 bend 255°/s
  • Axis 6 turn 370°/s
  • Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
  • No corrosive, flammable or explosive gases permitted in the operating environment
  • AIR50-2230 is mainly used in handling, palletizing, loading unloading, deburring, cutting, etc.

기술 사양

물리 사양
무게550 kg
가반하중50 kg
도달거리2.24 m
이동성
이동 방식고정형
자유도6
조작 능력높음
작동 환경Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases
액추에이터6-axis six-axis articulated manipulator, mounted Floor
센싱 & 컴퓨팅
소프트웨어 / AIDriven by Peitian ARC5-280 controller cabinets
제조사 출처서드파티 출처출처 없음출처 상태는 이 로봇에 등록된 출처를 기준으로 합니다.

자주 묻는 질문

What is the Peitian AIR50-2230?

The AIR50-2230 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 50 kg to a reach of 2238 mm. Peitian quotes position repeatability of ±0.06mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.

Who makes the Peitian AIR50-2230?

The Peitian AIR50-2230 is made by Peitian Robot, a robotics company based in China.

How much does the Peitian AIR50-2230 cost?

Peitian Robot has not publicly announced pricing for the Peitian AIR50-2230. You can enquire through RobotAIGeek for current pricing.

What is the Peitian AIR50-2230 used for?

The Peitian AIR50-2230 is designed for 조립, 픽앤플레이스, loading and unloading, and handling. It is used in 연구 and 제조 settings.

What is the payload capacity of the Peitian AIR50-2230?

The Peitian AIR50-2230 has a payload capacity of 50 kg and a reach of 2.24 m.

How much does the Peitian AIR50-2230 weigh?

The Peitian AIR50-2230 weighs 550 kg.

How many degrees of freedom does the Peitian AIR50-2230 have?

The Peitian AIR50-2230 has 6 degrees of freedom.
