설명

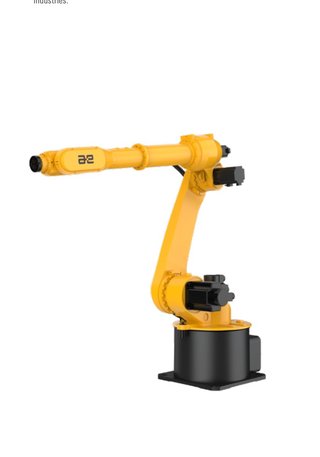

The AIR10-1720 is a small-payload six-axis articulated arm from Peitian's AIR range, carrying 10 kg to a reach of 1721 mm. Peitian quotes position repeatability of ±0.04mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 185 kg. It is sealed to IP54(Wrist: IP67), and can be mounted Floor or wall or ceiling. It runs on Peitian's inCube20 / ARC5-12 controller cabinet. AIR10-1720 is mainly used in loading unloading, handling and other fields, and can be applied to plastic injection, automobile and other industries.
주요 기능
- Six-axis articulated industrial robot arm
- Rated payload 10 kg
- Maximum reach 1721 mm
- Manipulator weight 185 kg
- Position repeatability ±0.04mm
- Ingress protection IP54(Wrist: IP67)
- Mounting: Floor / wall / ceiling
- Compatible controller cabinets: inCube20 / ARC5-12
- Working range Axis 1 rotation -170°/+170°
- Axis 2 arm -85°/+150°
- Axis 3 arm -95°/+170°
- Axis 4 wrist -195°/+195°
- Axis 5 bend -135°/+135°
- Axis 6 turn -360°/+360°
- Rotation rate Axis 1 rotation 200°/s
- Axis 2 arm 200°/s
- Axis 3 arm 200°/s
- Axis 4 wrist 370°/s
- Axis 5 bend 370°/s
- Axis 6 turn 600°/s
- Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
- No corrosive, flammable or explosive gases permitted in the operating environment
- AIR10-1720 is mainly used in loading unloading, handling and other fields, and can be applied to plastic injection, automobile and other industries.
기술 사양
| 물리 사양 | |
| 무게 | 185 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 1.72 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases |
| 액추에이터 | 6-axis six-axis articulated manipulator, mounted Floor or wall or ceiling |
| 센싱 & 컴퓨팅 | |
| 소프트웨어 / AI | Driven by Peitian inCube20 / ARC5-12 controller cabinets |
기술 사양
| 물리 사양 | |
| 무게 | 185 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 1.72 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases |
| 액추에이터 | 6-axis six-axis articulated manipulator, mounted Floor or wall or ceiling |
| 센싱 & 컴퓨팅 | |
| 소프트웨어 / AI | Driven by Peitian inCube20 / ARC5-12 controller cabinets |
이미지
martti
이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Peitian AIR10-1720?
The AIR10-1720 is a small-payload six-axis articulated arm from Peitian's AIR range, carrying 10 kg to a reach of 1721 mm. Peitian quotes position repeatability of ±0.04mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.
Who makes the Peitian AIR10-1720?
The Peitian AIR10-1720 is made by Peitian Robot, a robotics company based in China.
How much does the Peitian AIR10-1720 cost?
Peitian Robot has not publicly announced pricing for the Peitian AIR10-1720. You can enquire through RobotAIGeek for current pricing.
What is the Peitian AIR10-1720 used for?
The Peitian AIR10-1720 is designed for 조립, 픽앤플레이스, loading and unloading, and handling. It is used in 연구 and 제조 settings.
What is the payload capacity of the Peitian AIR10-1720?
The Peitian AIR10-1720 has a payload capacity of 10 kg and a reach of 1.72 m.
How much does the Peitian AIR10-1720 weigh?
The Peitian AIR10-1720 weighs 185 kg.
How many degrees of freedom does the Peitian AIR10-1720 have?
The Peitian AIR10-1720 has 6 degrees of freedom.
