설명
FP 13은(는) AFORMIC의 Industrial-Robot입니다. 사내 물류, 리프팅, 자재 취급 용도로 설계되었습니다. 주요 수치: 1100 kg, 가반 하중 2000 kg.

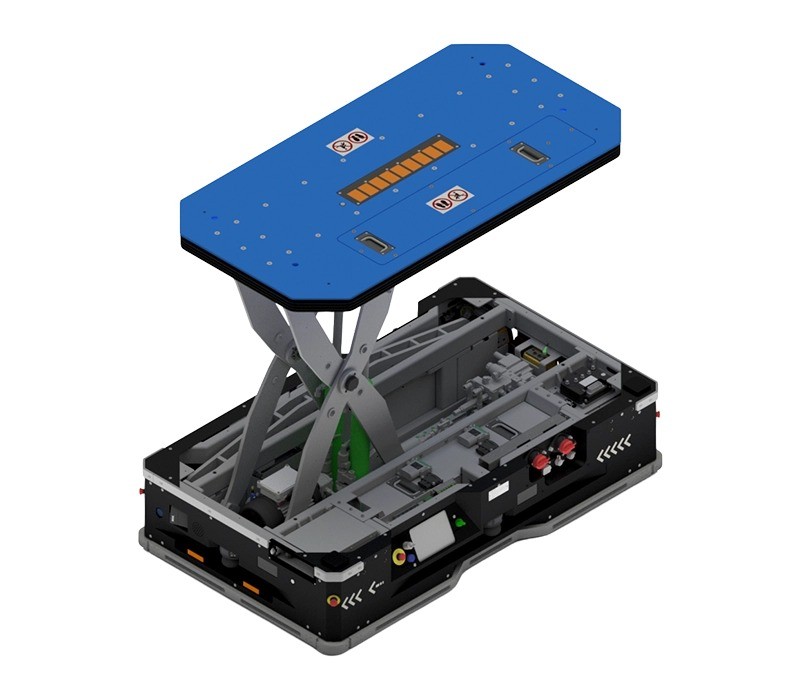

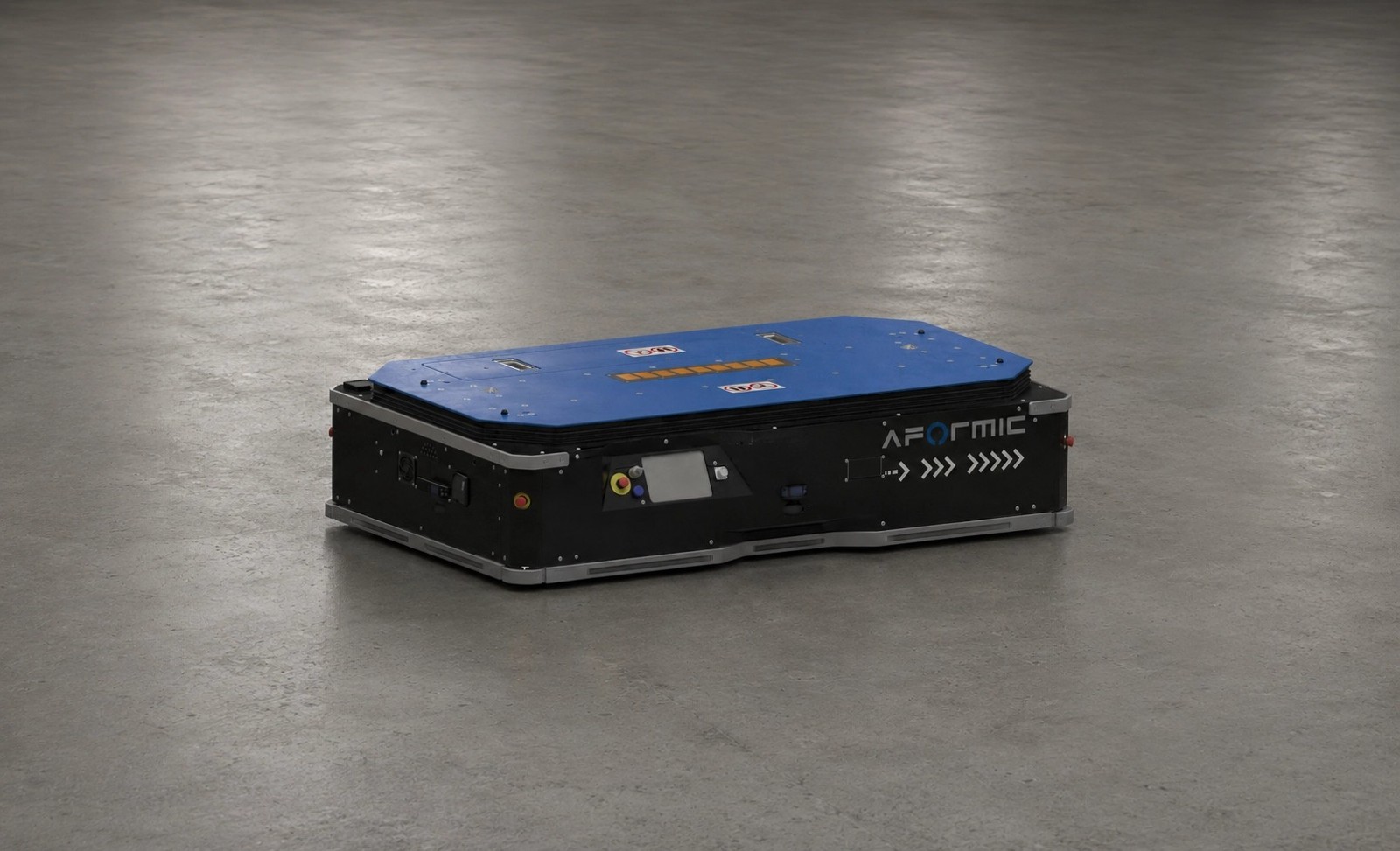

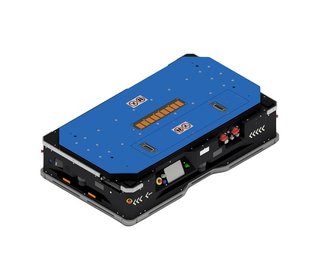

FP 13 is AFORMIC's compact scissor-lift robot: an omnidirectional AMR with a hydraulic scissor lift that raises loads of up to 2 t to 1.1 m, so it can deliver parts at working height or transfer them between stations. It measures 1730 x 1042 x 440 mm, weighs 1100 kg, carries 2000 kg, lifts 1100 mm and travels at up to 1.4 m/s with +/-10 mm positioning accuracy. Drive: omnidirectional (2 x 1.0 kW). It navigates by lidar SLAM using safety laser scanners with a 360-degree field of view, and is managed by AFORMIC's QURSOR fleet platform, which handles task allocation, path planning, traffic and KANBAN workflows. Power comes from a Li-Ion 240 Ah, 48 V battery.
주요 기능
- Payload: 2000 kg (4,409 lb)
- Dimensions (LxWxH): 1730 × 1042 × 440 mm (68.11 × 41 × 17.32 in)
- Lifting height: 1100 mm (43.3 in)
- Weight: 1100 kg (2,425 lb)
- Max speed: 1.4 m/s (4.6 ft/s)
- Drive: omnidirectional
- drive power 2 x 1.0 kW
- Positioning accuracy +/- 1.0 cm (0.4 in)
- Safety: Laser scanner field of view: 360° Safety scanners:
- Sick Micro Scanners: 4 units Emergency push buttons: 6 units Blue spot lamp: 2 units Four bumpers, one on each side of the vehicle
- Battery: Li-Ion 240 Ah, 48 V
- Lidar SLAM navigation
- no floor tape, wires or markers
- Managed by the QURSOR fleet management platform
기술 사양
| 물리 사양 | |
| 무게 | 1100 kg |
|---|---|
| 크기 | L 1.73 m × W 1.04 m × H 440 mm |
| 가반하중 | 2000 kg |
| 반복 정밀도 | ±10 mm |
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 5.04 km/h |
| 작동 환경 | Indoor factories and warehouses |
| 액추에이터 | omnidirectional (2 x 1.0 kW) |
| 전원 | |
| 배터리 지속 시간 | Li-Ion 240 Ah, 48 V |
| 센싱 & 컴퓨팅 | |
| 센서 | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 연결성 | Wireless link to QURSOR fleet manager |
| 소프트웨어 / AI | AFORMIC QURSOR fleet management |
로봇 포럼
포럼 불러오는 중...
기술 사양
| 물리 사양 | |
| 무게 | 1100 kg |
|---|---|
| 크기 | L 1.73 m × W 1.04 m × H 440 mm |
| 가반하중 | 2000 kg |
| 반복 정밀도 | ±10 mm |
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 5.04 km/h |
| 작동 환경 | Indoor factories and warehouses |
| 액추에이터 | omnidirectional (2 x 1.0 kW) |
| 전원 | |
| 배터리 지속 시간 | Li-Ion 240 Ah, 48 V |
| 센싱 & 컴퓨팅 | |
| 센서 | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 연결성 | Wireless link to QURSOR fleet manager |
| 소프트웨어 / AI | AFORMIC QURSOR fleet management |
이미지
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the FP 13?
FP 13 is AFORMIC's compact scissor-lift robot: an omnidirectional AMR with a hydraulic scissor lift that raises loads of up to 2 t to 1.1 m, so it can deliver parts at working height or transfer them between stations.
Who makes the FP 13?
The FP 13 is made by AFORMIC, a robotics company based in Poland.
How much does the FP 13 cost?
AFORMIC has not publicly announced pricing for the FP 13. You can enquire through RobotAIGeek for current pricing.
What is the FP 13 used for?
The FP 13 is designed for 사내 물류, 리프팅, 자재 취급, and 운반. It is used in 자동차, 창고·물류, and 제조 settings.
What is the payload capacity of the FP 13?
The FP 13 has a payload capacity of 2,000 kg.
How much does the FP 13 weigh?
The FP 13 weighs 1,100 kg.
How fast is the FP 13?
The FP 13 can move at speeds of up to 5.04 km/h.
