설명

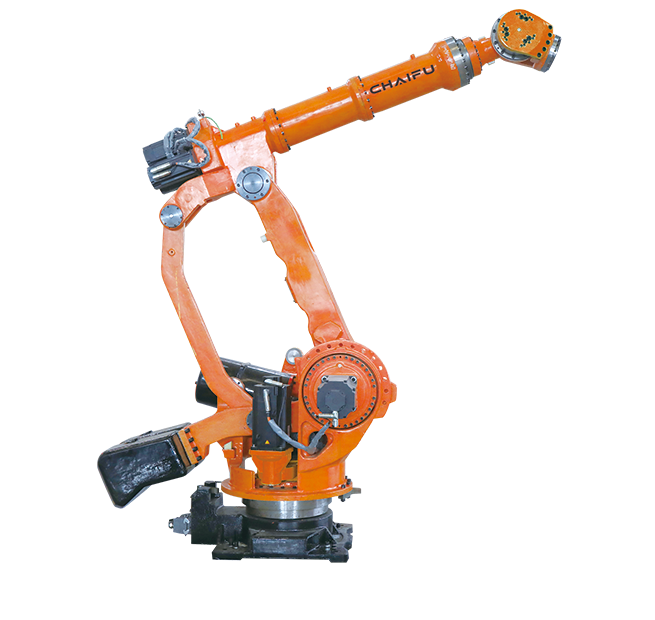

The SF500-C3100 is a 500 kg heavy-duty robot in CHAIFU's ALPHTIC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 3100 mm. Repeatability is ±0.3mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection. The maker's other table lists 3273 mm for this model. Powerful motors and gearboxes with LIKEPRECISION RV reducers carry loads up to 3,000 kg; base axes are IP65 and wrist axes IP67 for all-day operation. CHAIFU builds the ALPHTIC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for heavy handling, machine tending and structural work in demanding industries.
주요 기능
- ALPHTIC series heavy-duty robot
- Payload 500 kg
- Maximum reach 3100 mm
- 6 axes, vertically articulated
- Repeatability ±0.3mm
- Drive: AC Servo Motor
- Protection IP 65 (The wrist is protected to IP 67)
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
- Maker's comparison table lists 3273 mm reach
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 500 kg |
|---|---|
| 도달거리 | 3.1 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| 액추에이터 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 500 kg |
|---|---|
| 도달거리 | 3.1 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial production environments; IP 65 (The wrist is protected to IP 67). |
| 액추에이터 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
이미지
이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the CHAIFU SF500-C3100?
The SF500-C3100 is a 500 kg heavy-duty robot in CHAIFU's ALPHTIC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 3100 mm. Repeatability is ±0.3mm and it is driven by ac servo motors, with IP 65 (The wrist is protected to IP 67) protection.
Who makes the CHAIFU SF500-C3100?
The CHAIFU SF500-C3100 is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF500-C3100 cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF500-C3100. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF500-C3100 used for?
The CHAIFU SF500-C3100 is designed for 머신 텐딩, 자재 취급, and 팔레타이징. It is used in 자동차 and 제조 settings.
What is the payload capacity of the CHAIFU SF500-C3100?
The CHAIFU SF500-C3100 has a payload capacity of 500 kg and a reach of 3.1 m.
How many degrees of freedom does the CHAIFU SF500-C3100 have?
The CHAIFU SF500-C3100 has 6 degrees of freedom.
