설명

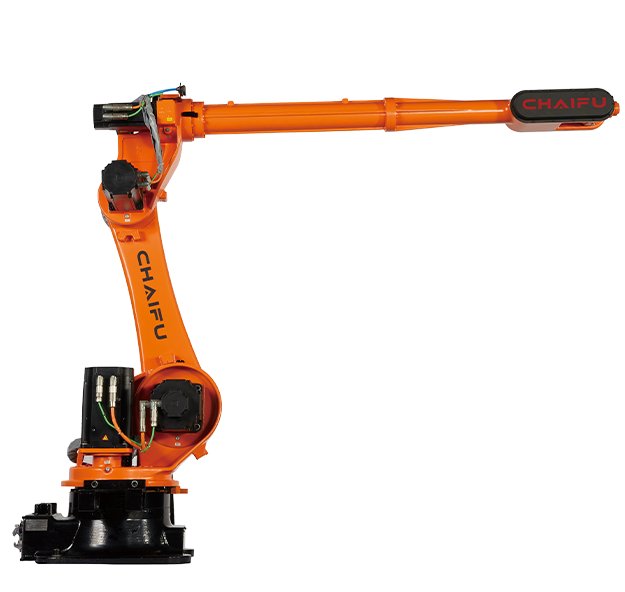

The SF10-K3100 is a 10 kg low-payload robot in CHAIFU's LOTIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 3100 mm. Repeatability is ±0.08mm and it is driven by ac servo motors, with IP 65 protection. LOTIC uses LIKEPRECISION RV precision gearboxes and CHAIFU servo control, with a compact design (the series' smallest models have a base of only 370 x 370 mm) and repeatable positioning accuracy of 0.05 mm. CHAIFU builds the LOTIC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for handling, assembly and general automation where a small, cost-effective arm is needed.
주요 기능
- LOTIC series low-payload robot
- Payload 10 kg
- Maximum reach 3100 mm
- 6 axes, vertical articulated
- Repeatability ±0.08mm
- Drive: AC Servo Motor
- Protection IP 65
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 10 kg |
|---|---|
| 도달거리 | 3.1 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial production environments; IP 65. |
| 액추에이터 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 10 kg |
|---|---|
| 도달거리 | 3.1 m |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | Industrial production environments; IP 65. |
| 액추에이터 | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
이미지
이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the CHAIFU SF10-K3100?
The SF10-K3100 is a 10 kg low-payload robot in CHAIFU's LOTIC series, a vertical articulated industrial robot with 6 axes and a maximum reach of 3100 mm. Repeatability is ±0.08mm and it is driven by ac servo motors, with IP 65 protection.
Who makes the CHAIFU SF10-K3100?
The CHAIFU SF10-K3100 is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF10-K3100 cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF10-K3100. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF10-K3100 used for?
The CHAIFU SF10-K3100 is designed for 조립, 머신 텐딩, and 픽앤플레이스. It is used in 전자 and 제조 settings.
What is the payload capacity of the CHAIFU SF10-K3100?
The CHAIFU SF10-K3100 has a payload capacity of 10 kg and a reach of 3.1 m.
How many degrees of freedom does the CHAIFU SF10-K3100 have?
The CHAIFU SF10-K3100 has 6 degrees of freedom.
