The CASBOT 02 is the company's full-size bipedal humanoid and the platform everything else is built on — including its robot band. It stands 1,630 mm, weighs about 50 kg, and carries 25 body degrees of freedom before any hand is fitted: 2 in the head, 5 per arm, 1 at the waist and 6 per leg. Each arm lifts 1.5 kg, joints peak at 150 N·m, and it walks at 1 m/s. What CASBOT emphasises is not raw capability but liveliness — it markets 'subtle movements for a sense of life', small idle motions that make the machine read as animate rather than parked, and an anthropomorphic motion evolution trained through deep reinforcement learning. Compute is substantial for the size at 275 TOPS, split across an NVIDIA Orin AGX for control and an RK3588 for interaction, and the body is 7000-series aerospace-grade aluminium chosen for strength-to-weight. Practical touches matter here: a tool-free slide-rail battery swaps instantly, the shell and frame are modular so the appearance can be customised, and OTA updates keep it improving in the field. It ships in Standard and EDU configurations.
주요 기능
- 1,630 x 510 x 280 mm standing at approximately 50 kg, or 52 kg in EDU configuration
- 25 whole-body degrees of freedom excluding dexterous hands, comprising 2 in the head, 5 per arm, 1 at the waist and 6 per leg
- Optional 11-DoF dexterous hand with 6 active degrees of freedom per hand
- 1.5 kg single-arm payload and 150 N·m maximum joint torque
- 1 m/s walking speed
- 275 TOPS of onboard compute across an NVIDIA Orin AGX control unit and an RK3588 interaction unit
- 48 V 10 Ah ternary lithium battery giving approximately 1.5 hours, with tool-free slide-rail instant battery replacement

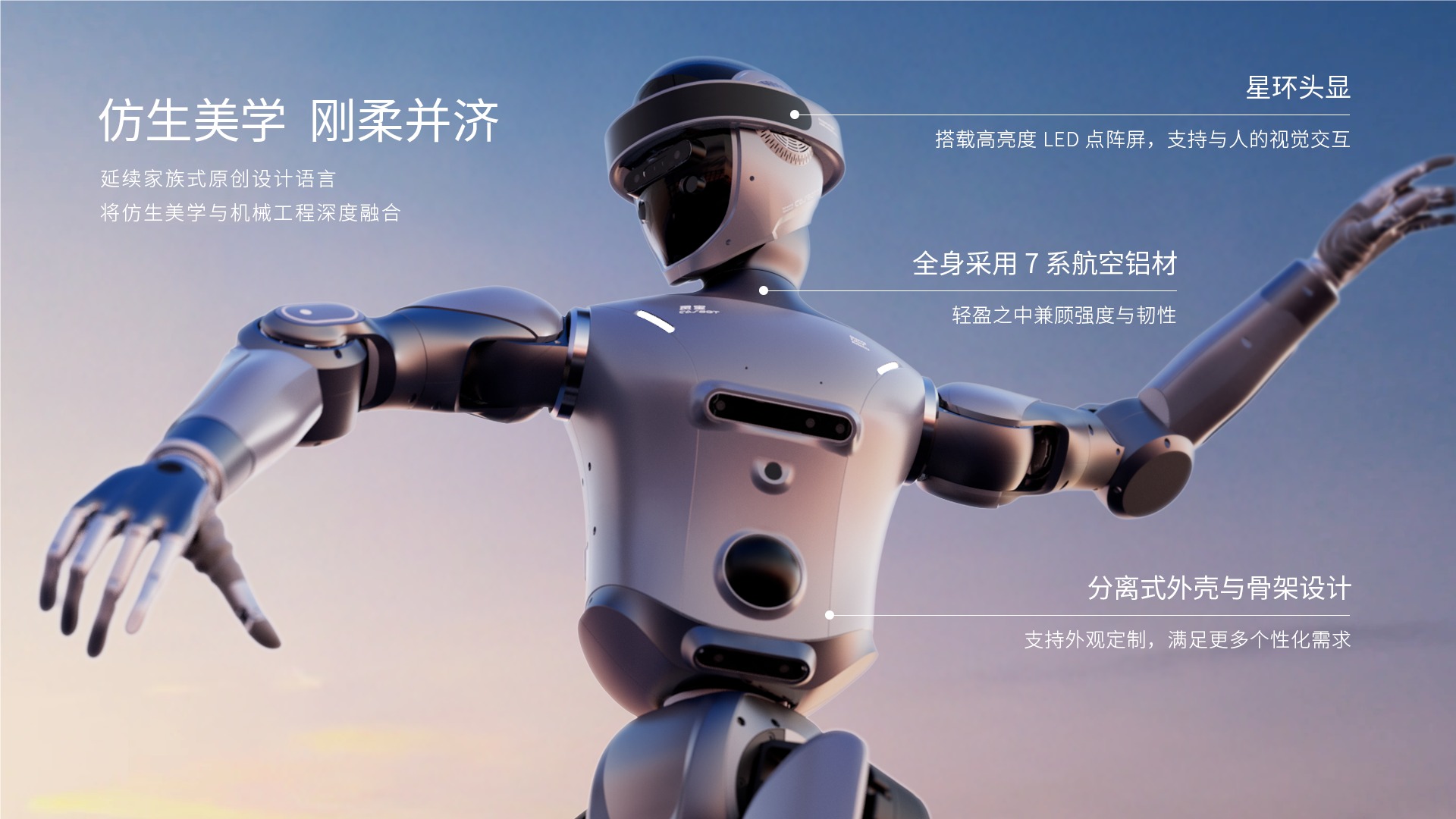

- 7000-series aerospace-grade aluminium alloy for an optimised strength-to-weight ratio

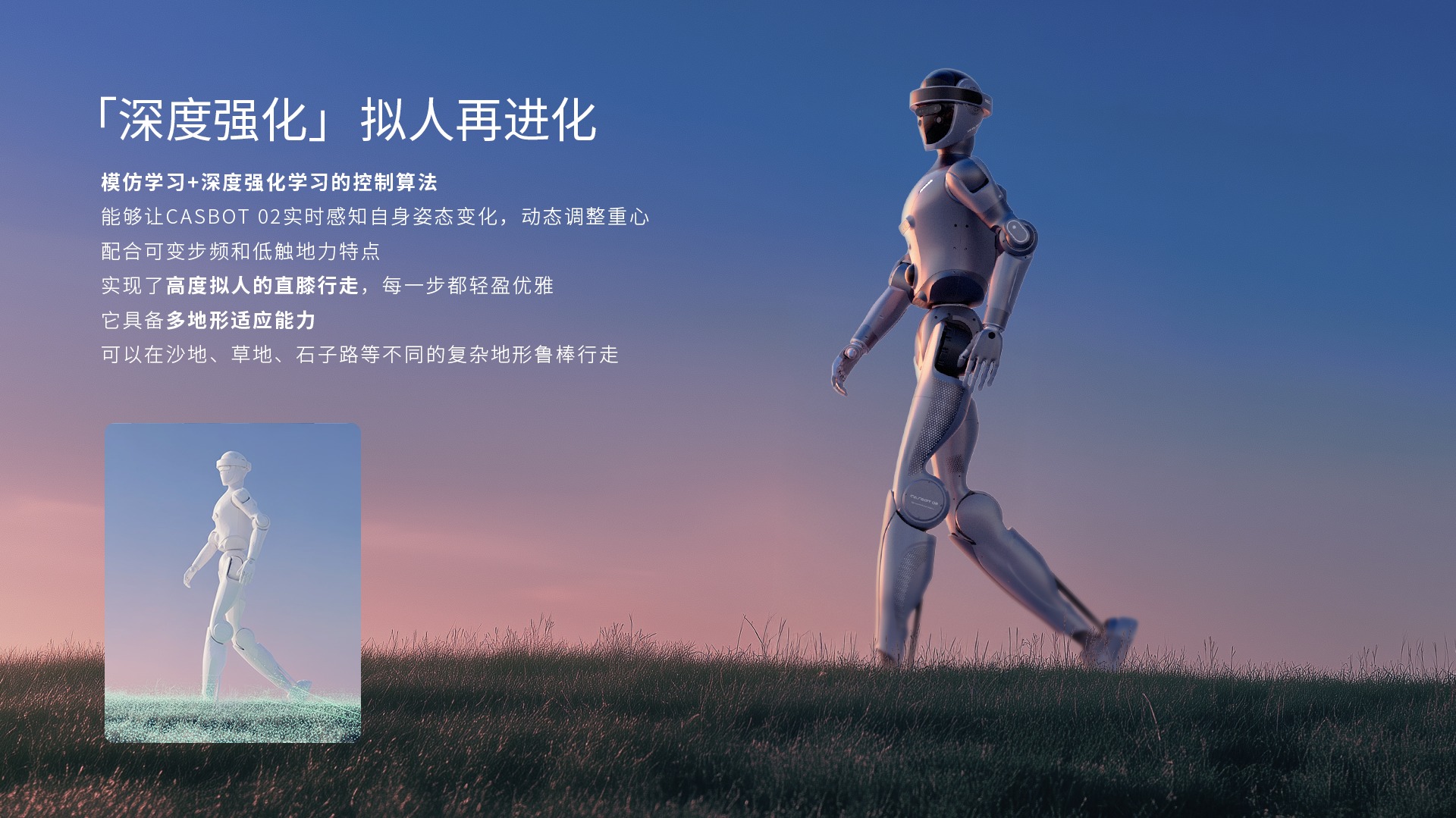

- Subtle idle movements for a sense of life, and anthropomorphic motion evolution trained by deep reinforcement learning

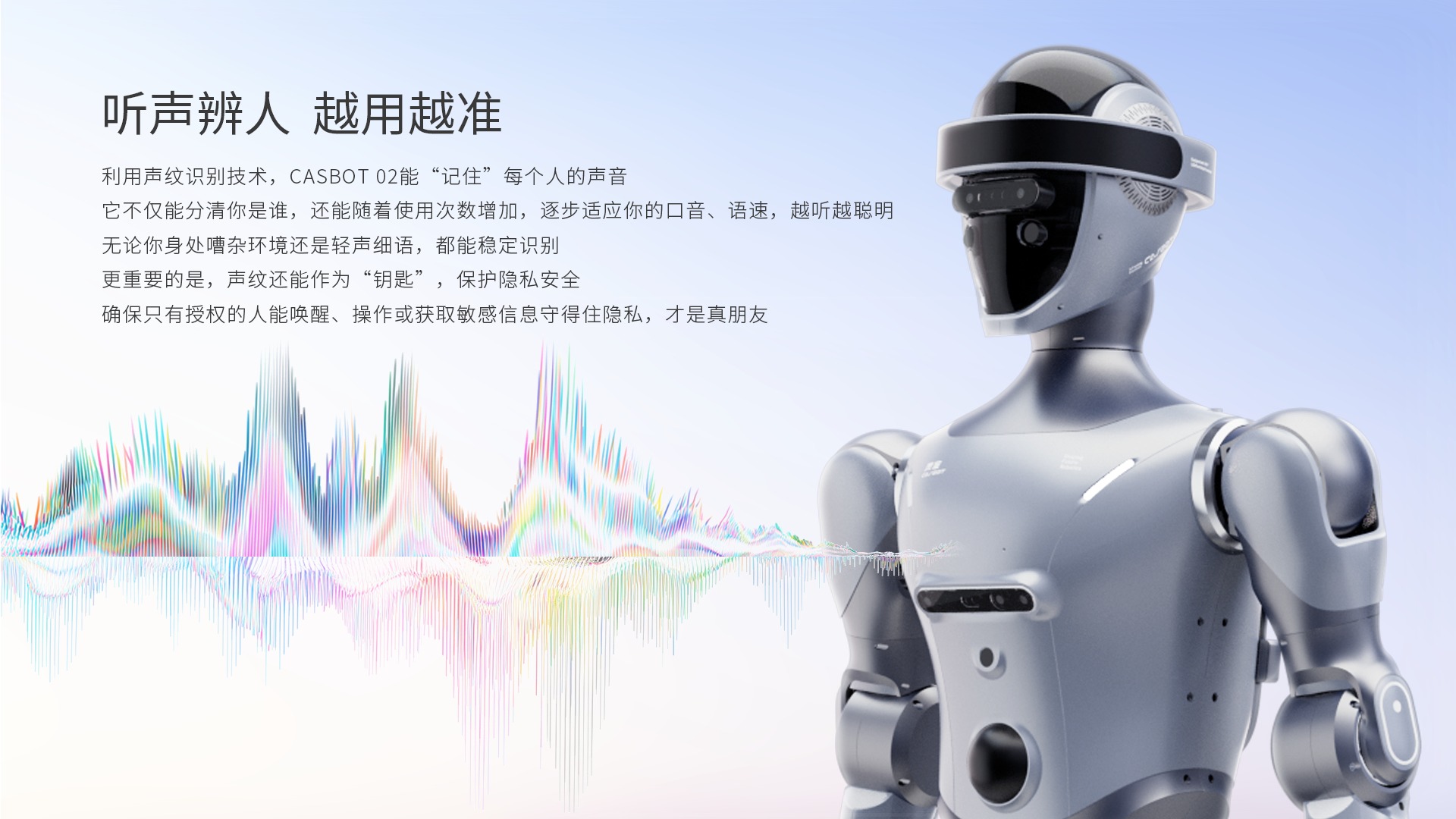

- RGBD camera, binocular camera, twin fisheye cameras, IMU and microphone array with speaker
- EDU adds LiDAR and three RGBD cameras
- EDU configuration additionally supports navigation, wireless charging, secondary development and appearance customisation
- Modular shell and frame offering customisable appearance options
- Stellar halo head-mounted display with high-brightness LED
- WiFi 6, 4G and Bluetooth 5.2
- air cooling
- 5-40 degrees Celsius, 25-85% non-condensing humidity
- Intelligent OTA updates for continuous evolution
기술 사양
검증됨| 물리 사양 | |
| 무게 | 50 kg |
|---|---|
| 크기 | L 280 mm × W 510 mm × H 1.63 m |
| 가반하중 | 1.5 kg |
| 이동성 | |
| 이동 방식 | 이족보행 |
| 자유도 | 25 |
| 속도 | 3.6 km/h |
| 작동 환경 | Indoor, 5 to 40 degrees Celsius, 25-85% relative humidity non-condensing; air cooled |
| 액추에이터 | Bipedal humanoid in 7000-series aerospace-grade aluminium alloy; 25 body degrees of freedom with 150 N·m maximum joint torque; optional 11-DoF dexterous hands |
| 전원 | |
| 배터리 지속 시간 | ~1.5 h |
| 센싱 & 컴퓨팅 | |
| 센서 | RGBD camera, binocular camera, fisheye cameras x2, IMU, microphone array and speaker, LiDAR (EDU configuration) |
| 연결성 | WiFi 6, 4G, Bluetooth 5.2 |
| 소프트웨어 / AI | RoboBrain multimodal large model with a three-layer brain-cerebellum-body architecture; generative adversarial imitation learning for visual closed-loop control; intelligent OTA updates |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 50 kg |
|---|---|
| 크기 | L 280 mm × W 510 mm × H 1.63 m |
| 가반하중 | 1.5 kg |
| 이동성 | |
| 이동 방식 | 이족보행 |
| 자유도 | 25 |
| 속도 | 3.6 km/h |
| 작동 환경 | Indoor, 5 to 40 degrees Celsius, 25-85% relative humidity non-condensing; air cooled |
| 액추에이터 | Bipedal humanoid in 7000-series aerospace-grade aluminium alloy; 25 body degrees of freedom with 150 N·m maximum joint torque; optional 11-DoF dexterous hands |
| 전원 | |
| 배터리 지속 시간 | ~1.5 h |
| 센싱 & 컴퓨팅 | |
| 센서 | RGBD camera, binocular camera, fisheye cameras x2, IMU, microphone array and speaker, LiDAR (EDU configuration) |
| 연결성 | WiFi 6, 4G, Bluetooth 5.2 |
| 소프트웨어 / AI | RoboBrain multimodal large model with a three-layer brain-cerebellum-body architecture; generative adversarial imitation learning for visual closed-loop control; intelligent OTA updates |
이미지
martti
martti
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the CASBOT 02?
The CASBOT 02 is the company's full-size bipedal humanoid and the platform everything else is built on — including its robot band. It stands 1,630 mm, weighs about 50 kg, and carries 25 body degrees of freedom before any hand is fitted: 2 in the head, 5 per arm, 1 at the waist and 6 per leg.
Who makes the CASBOT 02?
The CASBOT 02 is made by CASBOT, a robotics company based in China.
How much does the CASBOT 02 cost?
CASBOT has not publicly announced pricing for the CASBOT 02. You can enquire through RobotAIGeek for current pricing.
What is the CASBOT 02 used for?
The CASBOT 02 is designed for 엔터테인먼트, 연구, 점검, and industrial inspection in aerospace, consumer electronics, new-energy vehicles and semiconductors. It is used in 연구, 교육, 제조, and 리테일 settings.
What is the payload capacity of the CASBOT 02?
The CASBOT 02 has a payload capacity of 1.5 kg.
How much does the CASBOT 02 weigh?
The CASBOT 02 weighs 50 kg.
How fast is the CASBOT 02?
The CASBOT 02 can move at speeds of up to 3.6 km/h.
What is the battery life of the CASBOT 02?
The CASBOT 02 runs for ~1.5 h on a charge.
