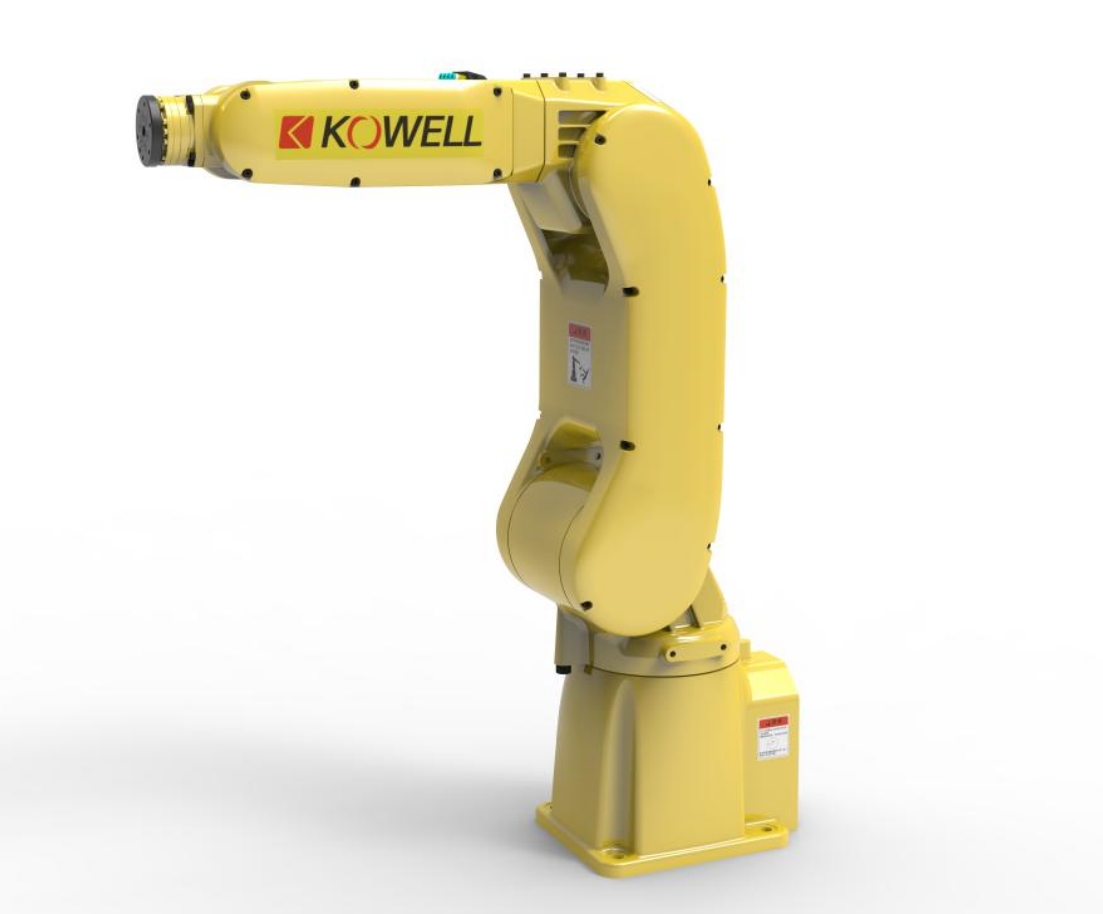

An 8 kg six-axis industrial arm with a 827 mm working radius, repeatable to ±0.05 mm at 42 kg body weight. Suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C, medical, and food.
주요 기능

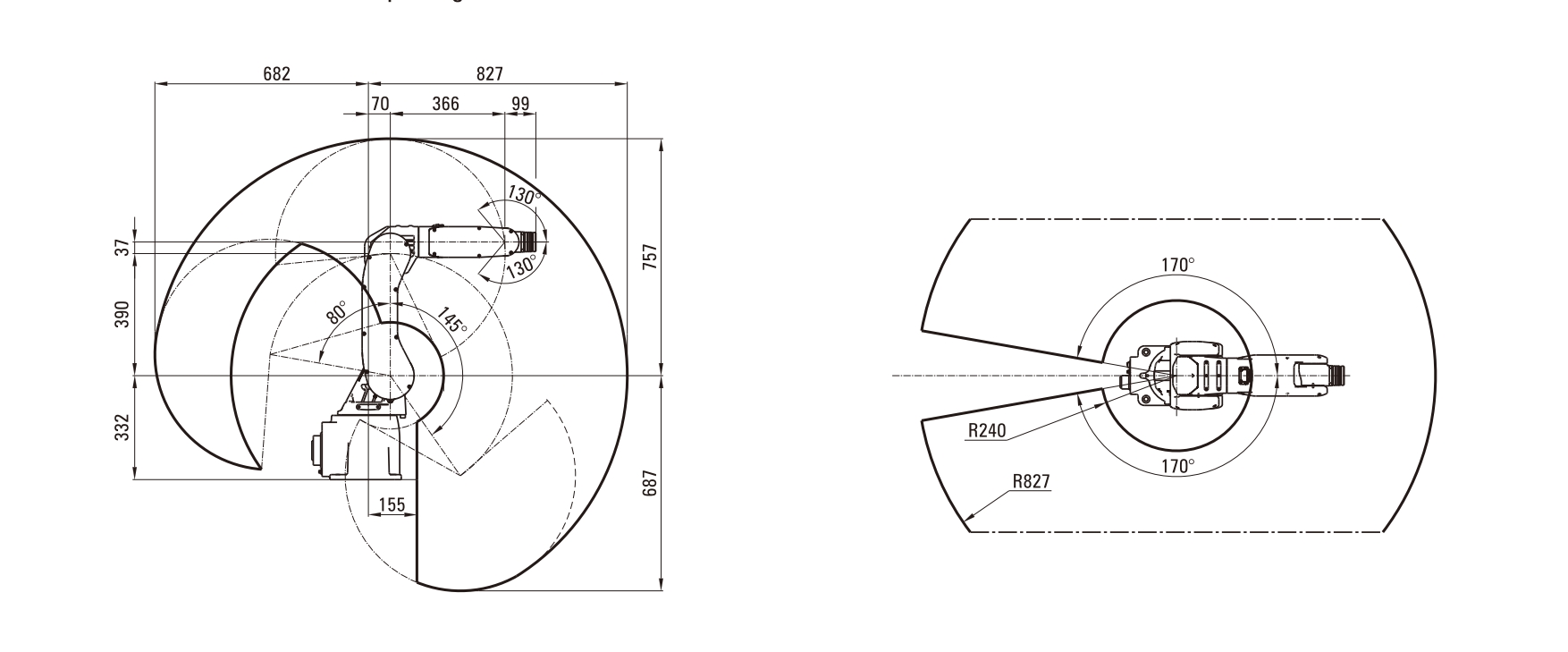

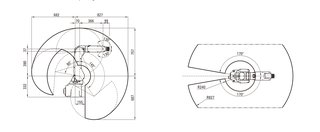

- Vertically articulated six-axis arm rated 8 kg payload with a 827 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 42 kg.
- Power capacity 3.0 kVA
- protection rated equivalent to IP65.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- Arm robot 6 axis KW1008B-830 with a payload of 8kg, suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C, medical, and food.

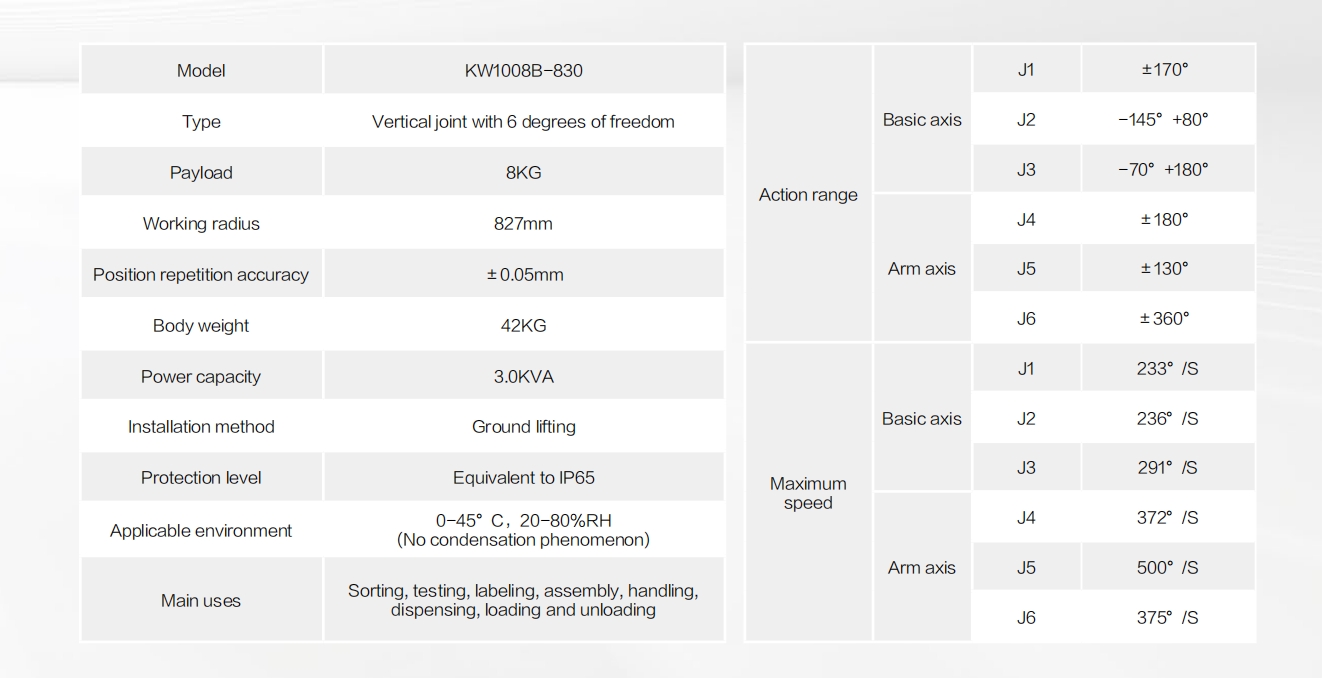

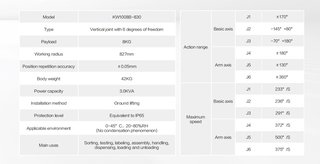

기술 사양
검증됨| 물리 사양 | |
| 무게 | 42 kg |
|---|---|
| 가반하중 | 8 kg |
| 도달거리 | 827 mm |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 작동 환경 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 42 kg |
|---|---|
| 가반하중 | 8 kg |
| 도달거리 | 827 mm |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 작동 환경 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
이미지
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Arm robot 6 axis KW1008B-830?
An 8 kg six-axis industrial arm with a 827 mm working radius, repeatable to ±0.05 mm at 42 kg body weight. Suitable for sorting, testing, labeling, assembly, handling, dispensing, loading and unloading work environments, and widely used in industries such as electronics, 3C, medical, and food.
Who makes the Arm robot 6 axis KW1008B-830?
The Arm robot 6 axis KW1008B-830 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Arm robot 6 axis KW1008B-830 cost?
Shandong Kewei Robot has not publicly announced pricing for the Arm robot 6 axis KW1008B-830. You can enquire through RobotAIGeek for current pricing.
What is the Arm robot 6 axis KW1008B-830 used for?
The Arm robot 6 axis KW1008B-830 is designed for 조립, 디스펜싱, 자재 취급, and 분류. It is used in 전자, 헬스케어, and 제조 settings.
What is the payload capacity of the Arm robot 6 axis KW1008B-830?
The Arm robot 6 axis KW1008B-830 has a payload capacity of 8 kg and a reach of 827 mm.
How much does the Arm robot 6 axis KW1008B-830 weigh?
The Arm robot 6 axis KW1008B-830 weighs 42 kg.
How many degrees of freedom does the Arm robot 6 axis KW1008B-830 have?
The Arm robot 6 axis KW1008B-830 has 6 degrees of freedom.
