説明

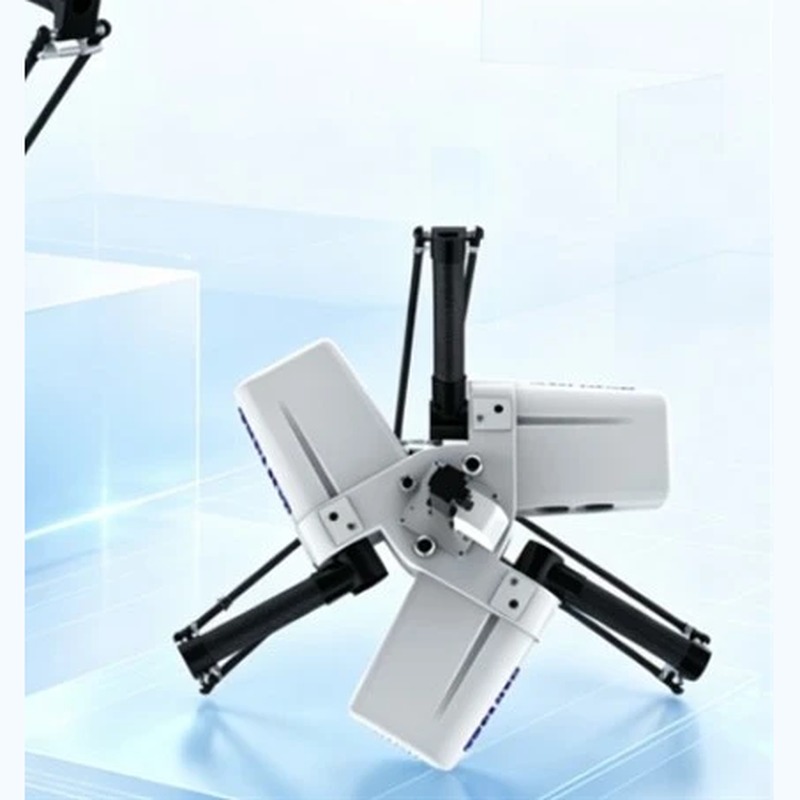

TFD-RD4-800A is Tefude's 3+1-axis Delta parallel pick-and-place robot for high-speed food and packaging lines, typically integrated with vision, conveying, and cartoning cells.
特長
- 2.5 kg max payload
- R800 mm working diameter
- 200 mm pick/place height
- ±0.1 mm XYZ repeatability
- up to 200 cycles/min
- 81 kg machine mass
- hoisting installation
- IP54
- 8in/8out expandable I/O.
技術仕様
| 本体 | |
| 重量 | 81 kg |
|---|---|
| 寸法 | H 200 mm |
| 可搬重量 | 2.5 kg |
| リーチ | 800 mm |
| 繰り返し精度 | ±0.1 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 4 |
| マニピュレーション | 高 |
技術仕様
| 本体 | |
| 重量 | 81 kg |
|---|---|
| 寸法 | H 200 mm |
| 可搬重量 | 2.5 kg |
| リーチ | 800 mm |
| 繰り返し精度 | ±0.1 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 4 |
| マニピュレーション | 高 |
画像
martti
投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the TFD-RD4-800A?
TFD-RD4-800A is Tefude's 3+1-axis Delta parallel pick-and-place robot for high-speed food and packaging lines, typically integrated with vision, conveying, and cartoning cells.
Who makes the TFD-RD4-800A?
The TFD-RD4-800A is made by Foshan Tefude Automation Co., Ltd., a robotics company based in China.
How much does the TFD-RD4-800A cost?
Foshan Tefude Automation Co., Ltd. has not publicly announced pricing for the TFD-RD4-800A. You can enquire through RobotAIGeek for current pricing.
What is the TFD-RD4-800A used for?
The TFD-RD4-800A is designed for 組立, 積み込み, マテリアルハンドリング, and パレタイジング. It is used in 製造 settings.
What is the payload capacity of the TFD-RD4-800A?
The TFD-RD4-800A has a payload capacity of 2.5 kg and a reach of 800 mm.
How much does the TFD-RD4-800A weigh?
The TFD-RD4-800A weighs 81 kg.
How many degrees of freedom does the TFD-RD4-800A have?
The TFD-RD4-800A has 4 degrees of freedom.
