説明
ROV ORCAはPlanys TechnologiesのService-Robotsです。 テスト、点検、リモート向けに設計されています。 主な数値：可搬質量 10 kg。

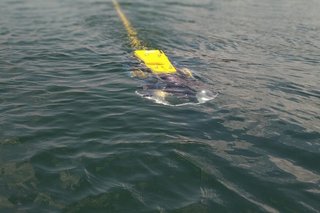

ROV ORCA is a compact tethered underwater inspection vehicle from Planys Technologies for confined or enclosed water: dams and spillways, intake and storage tanks, tunnels, surge shafts and pipelines. It lets plant operators inspect submerged structures without draining them or sending divers into hazardous spaces, and is used mainly through Planys' inspection services. The vehicle is rated to 120 m, extendable to 300 m, and takes modular payloads of up to 10 kg. Dual HD cameras with adjustable brightness give usable video in turbid water, streamed live to the surface, and sonar imaging covers zero-visibility conditions. Contact and non-contact steel NDT and concrete NDT tools measure the condition of linings, gates and walls during the same inspection. Results go into Planys' digital reports with geo-tagged defects. The company reports 10,000 operational hours across its ROV fleet and lists hydropower, water, power and process-plant operators among its customers.
特長
- Compact ROV for confined spaces such as dams, tanks and pipelines
- Depth rating 120 m, extendable to 300 m
- Modular payload capacity up to 10 kg
- Dual HD cameras with adjustable brightness for turbid and murky water
- Sonar imaging
- Advanced steel NDT (contact and non-contact)
- Concrete NDT
- Real-time video streaming
- Digital reporting with geo-tagged defect markers
- Fleet experience: 10,000 operational hours deployed (maker claim)
技術仕様
検証済み| 本体 | |
| 可搬重量 | 10 kg |
|---|---|
| 移動性能 | |
| 移動方式 | 水中型 |
| 使用環境 | Confined and enclosed water bodies, turbid water, down to 120 m (300 m option) |
| センシング・演算 | |
| センサー | Dual HD cameras, Sonar imaging, Steel NDT (contact and non-contact ultrasonic), Concrete NDT |
| 接続性 | Tethered, real-time video streaming |
| ソフトウェア / AI | Planys digital reporting with geo-tagged defect markers |
ロボットフォーラム
フォーラムを読み込み中...
技術仕様
検証済み| 本体 | |
| 可搬重量 | 10 kg |
|---|---|
| 移動性能 | |
| 移動方式 | 水中型 |
| 使用環境 | Confined and enclosed water bodies, turbid water, down to 120 m (300 m option) |
| センシング・演算 | |
| センサー | Dual HD cameras, Sonar imaging, Steel NDT (contact and non-contact ultrasonic), Concrete NDT |
| 接続性 | Tethered, real-time video streaming |
| ソフトウェア / AI | Planys digital reporting with geo-tagged defect markers |
画像
martti
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the ROV ORCA?
ROV ORCA is a compact tethered underwater inspection vehicle from Planys Technologies for confined or enclosed water: dams and spillways, intake and storage tanks, tunnels, surge shafts and pipelines.
Who makes the ROV ORCA?
The ROV ORCA is made by Planys Technologies, a robotics company based in India.
How much does the ROV ORCA cost?
Planys Technologies has not publicly announced pricing for the ROV ORCA. You can enquire through RobotAIGeek for current pricing.
What is the ROV ORCA used for?
The ROV ORCA is designed for テスト, 点検, リモート, and スキャン. It is used in エネルギー, 政府・公共, 建設, and 製造 settings.
What is the payload capacity of the ROV ORCA?
The ROV ORCA has a payload capacity of 10 kg.
