説明
R2SDM1500-335-MG0はJaten Robot Co., Ltd.のIndustrial-Robotです。 構内物流、マテリアルハンドリング、搬送向けに設計されています。

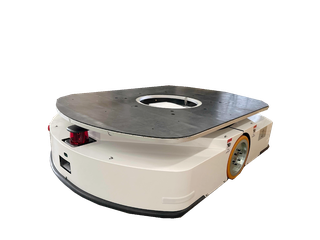

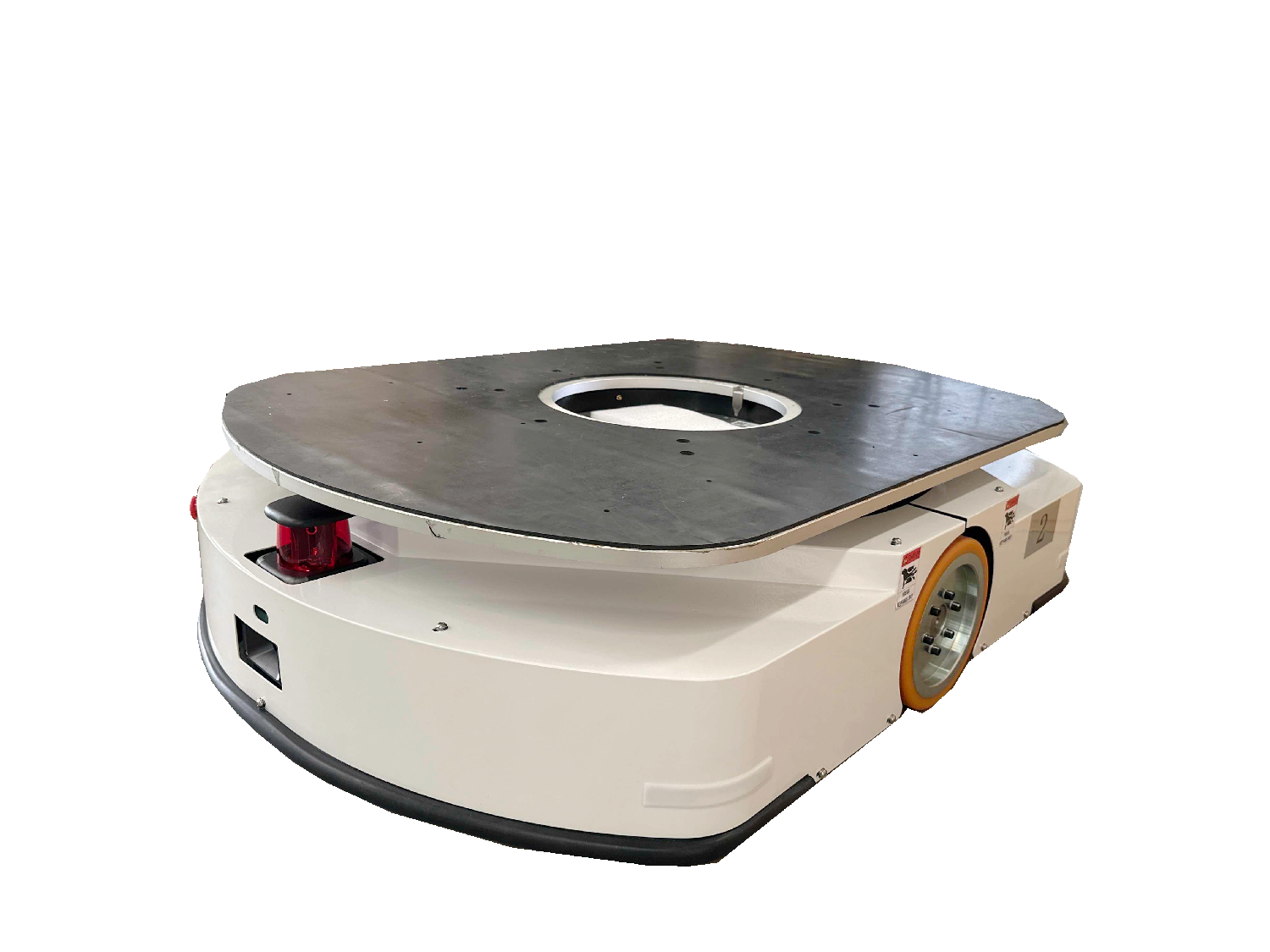

R2SDM1500-335-MG0 is Jaten's composite-navigation under-ride AGV for warehousing and automotive logistics: bi-directional travel, rotate-in-place, online rearward charging, and lifting/carrying loads up to 1500 kg.
特長
- Navigation: QR code + natural (composite) navigation
- Delivery mode: carrying and lifting
- Rated load: 1500 kg
- Dimensions (L x W x H): 1190 x 860 x 280 mm
- Speed: ≤0.8 m/s. Climbing ability: ≤2%
- Lifting height: ≤60 mm
- Turning: rotate in place
- Travel: forward, backward, turn
- Battery: 48 V, 45 Ah
- Charging: online (rear/back charging)
- Application: warehousing, automobile factories, and similar indoor logistics ≤1500 kg
技術仕様
| 本体 | |
| 寸法 | L 1.19 m × W 860 mm × H 280 mm |
|---|---|
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 2.88 km/h |
| 電源 | |
| バッテリー駆動時間 | D48V 45AH |
技術仕様
| 本体 | |
| 寸法 | L 1.19 m × W 860 mm × H 280 mm |
|---|---|
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 2.88 km/h |
| 電源 | |
| バッテリー駆動時間 | D48V 45AH |
画像
martti
投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the R2SDM1500-335-MG0?
R2SDM1500-335-MG0 is Jaten's composite-navigation under-ride AGV for warehousing and automotive logistics: bi-directional travel, rotate-in-place, online rearward charging, and lifting/carrying loads up to 1500 kg.
Who makes the R2SDM1500-335-MG0?
The R2SDM1500-335-MG0 is made by Jaten Robot Co., Ltd., a robotics company based in China.
How much does the R2SDM1500-335-MG0 cost?
Jaten Robot Co., Ltd. has not publicly announced pricing for the R2SDM1500-335-MG0. You can enquire through RobotAIGeek for current pricing.
What is the R2SDM1500-335-MG0 used for?
The R2SDM1500-335-MG0 is designed for 構内物流, マテリアルハンドリング, and 搬送. It is used in 倉庫・物流 and 製造 settings.
How fast is the R2SDM1500-335-MG0?
The R2SDM1500-335-MG0 can move at speeds of up to 2.88 km/h.
