説明

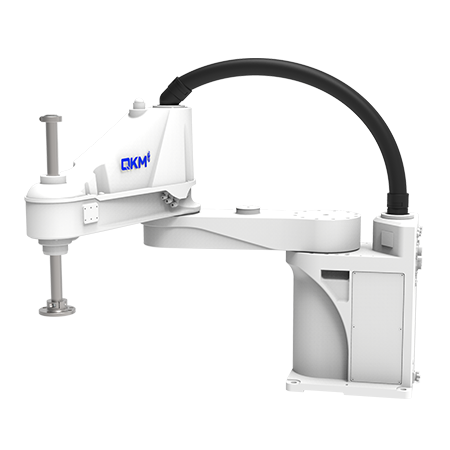

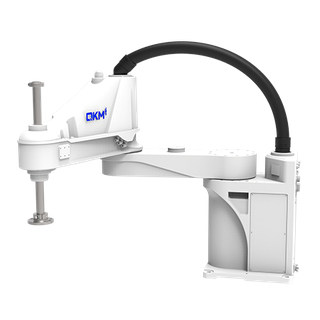

The QKM SCARA AH20 is an industrial SCARA robot from QKM Technologies. It is designed for heavier tasks with a maximum payload of 20 kg and offers working ranges of 850 mm or 1050 mm.
特長
- Maximum payload: 20 kg
- Maximum working range: 850 mm, 1050 mm
技術仕様
検証済み| 本体 | |
| 重量 | 56 kg |
|---|---|
| 可搬重量 | 20 kg |
| リーチ | 850 mm |
| 繰り返し精度 | ±0.03 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 4 |
技術仕様
検証済み| 本体 | |
| 重量 | 56 kg |
|---|---|
| 可搬重量 | 20 kg |
| リーチ | 850 mm |
| 繰り返し精度 | ±0.03 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 4 |
画像
martti
martti投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the QKM SCARA AH20?
The QKM SCARA AH20 is an industrial SCARA robot from QKM Technologies. It is designed for heavier tasks with a maximum payload of 20 kg and offers working ranges of 850 mm or 1050 mm.
Who makes the QKM SCARA AH20?
The QKM SCARA AH20 is made by QKM Technologies, a robotics company based in China.
How much does the QKM SCARA AH20 cost?
QKM Technologies has not publicly announced pricing for the QKM SCARA AH20. You can enquire through RobotAIGeek for current pricing.
What is the QKM SCARA AH20 used for?
The QKM SCARA AH20 is designed for 組立 and ピック＆プレース. It is used in 製造 settings.
What is the payload capacity of the QKM SCARA AH20?
The QKM SCARA AH20 has a payload capacity of 20 kg and a reach of 850 mm.
How much does the QKM SCARA AH20 weigh?
The QKM SCARA AH20 weighs 56 kg.
How many degrees of freedom does the QKM SCARA AH20 have?
The QKM SCARA AH20 has 4 degrees of freedom.
When was the QKM SCARA AH20 released?
The QKM SCARA AH20 was released in 2023.
