説明

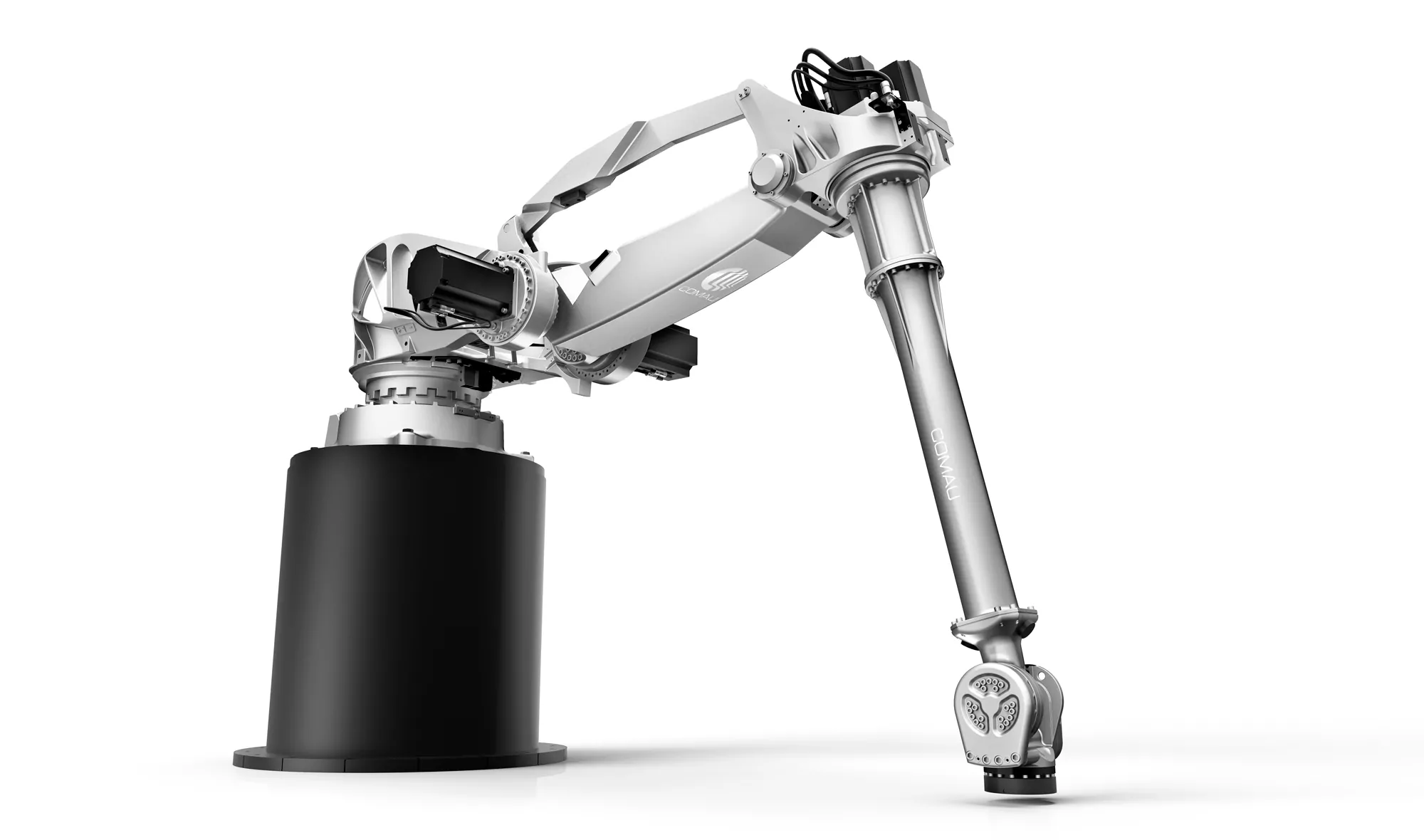

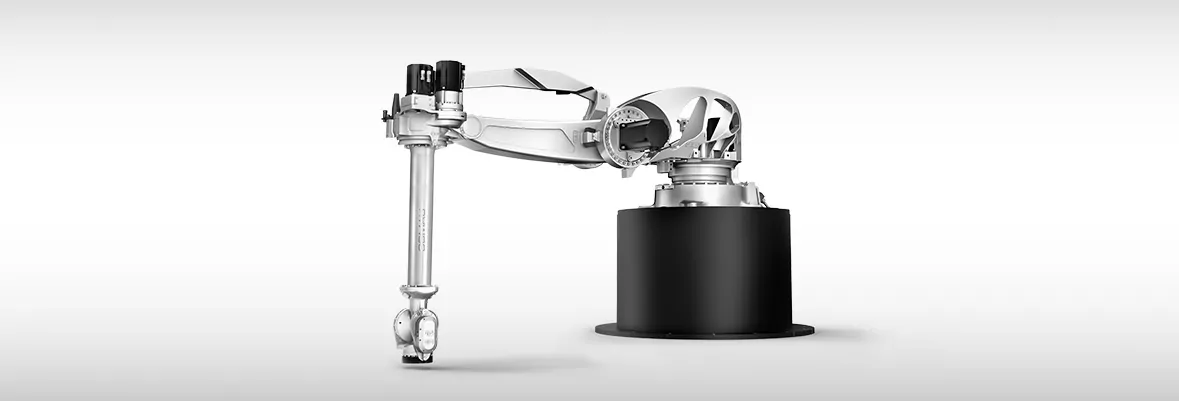

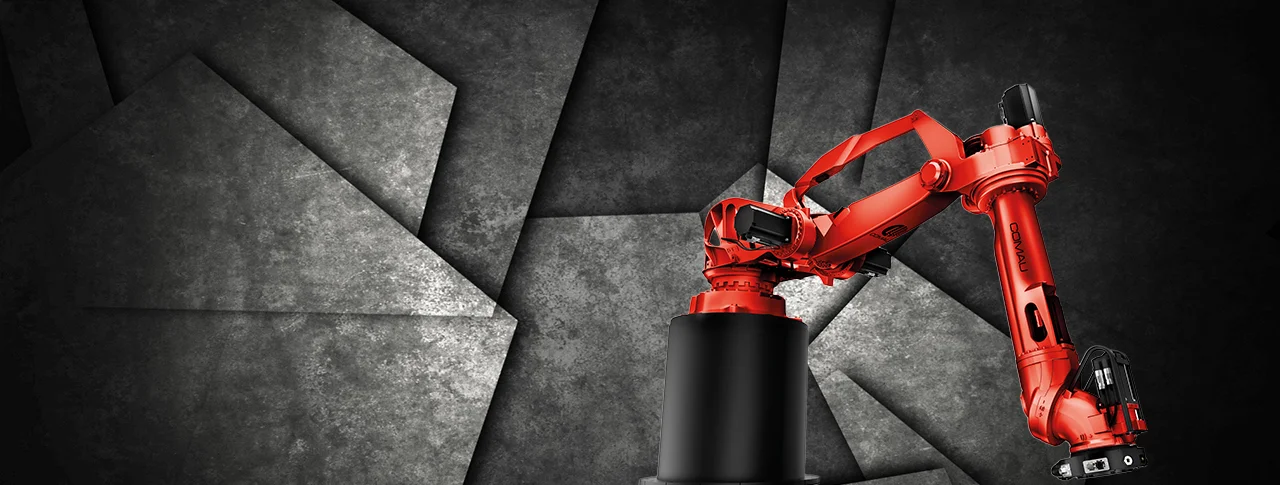

Comau's NJ4-165-3.4 SH is a shelf-mounted six-axis industrial robot arm with a hollow wrist, rated to carry 165 kg. Comau describes it as a Shelf-Mounted Hollow Wrist Robot: the arm is mounted on a shelf structure rather than the floor, which widens the working area it can reach and frees the floor beneath it in high-density production lines. It belongs to the NJ4 generation of Comau's NJ heavy-payload family and is aimed at handling and spot welding duty.
特長
- Comau NJ4-165-3.4 SH is a six-axis industrial robot for manufacturing, handling and welding duty, engineered for high uptime and a compact installed footprint. Technical specifications (Comau datasheet): maximum wrist payload 165 kg
- additional forearm load 50 kg
- maximum horizontal reach 3377 mm
- repeatability +/-0.1 mm
- robot weight 1430 kg
- 6 axes
- protection IP65
- mounting Shelf.
技術仕様
検証済み| 本体 | |
| 重量 | 1430 kg |
|---|---|
| 可搬重量 | 165 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | IP65 |
技術仕様
検証済み| 本体 | |
| 重量 | 1430 kg |
|---|---|
| 可搬重量 | 165 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | IP65 |
画像
martti
martti
martti投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the NJ4-165-3.4 SH?
Comau's NJ4-165-3.4 SH is a shelf-mounted six-axis industrial robot arm with a hollow wrist, rated to carry 165 kg. Comau describes it as a Shelf-Mounted Hollow Wrist Robot: the arm is mounted on a shelf structure rather than the floor, which widens the working area it can reach and frees the floor beneath it in high-d…
Who makes the NJ4-165-3.4 SH?
The NJ4-165-3.4 SH is made by Comau, a robotics company based in Italy.
How much does the NJ4-165-3.4 SH cost?
Comau has not publicly announced pricing for the NJ4-165-3.4 SH. You can enquire through RobotAIGeek for current pricing.
What is the NJ4-165-3.4 SH used for?
The NJ4-165-3.4 SH is designed for ピッキング. It is used in 製造 settings.
What is the payload capacity of the NJ4-165-3.4 SH?
The NJ4-165-3.4 SH has a payload capacity of 165 kg.
How much does the NJ4-165-3.4 SH weigh?
The NJ4-165-3.4 SH weighs 1,430 kg.
How many degrees of freedom does the NJ4-165-3.4 SH have?
The NJ4-165-3.4 SH has 6 degrees of freedom.
When was the NJ4-165-3.4 SH released?
The NJ4-165-3.4 SH was released in 2016.
