説明

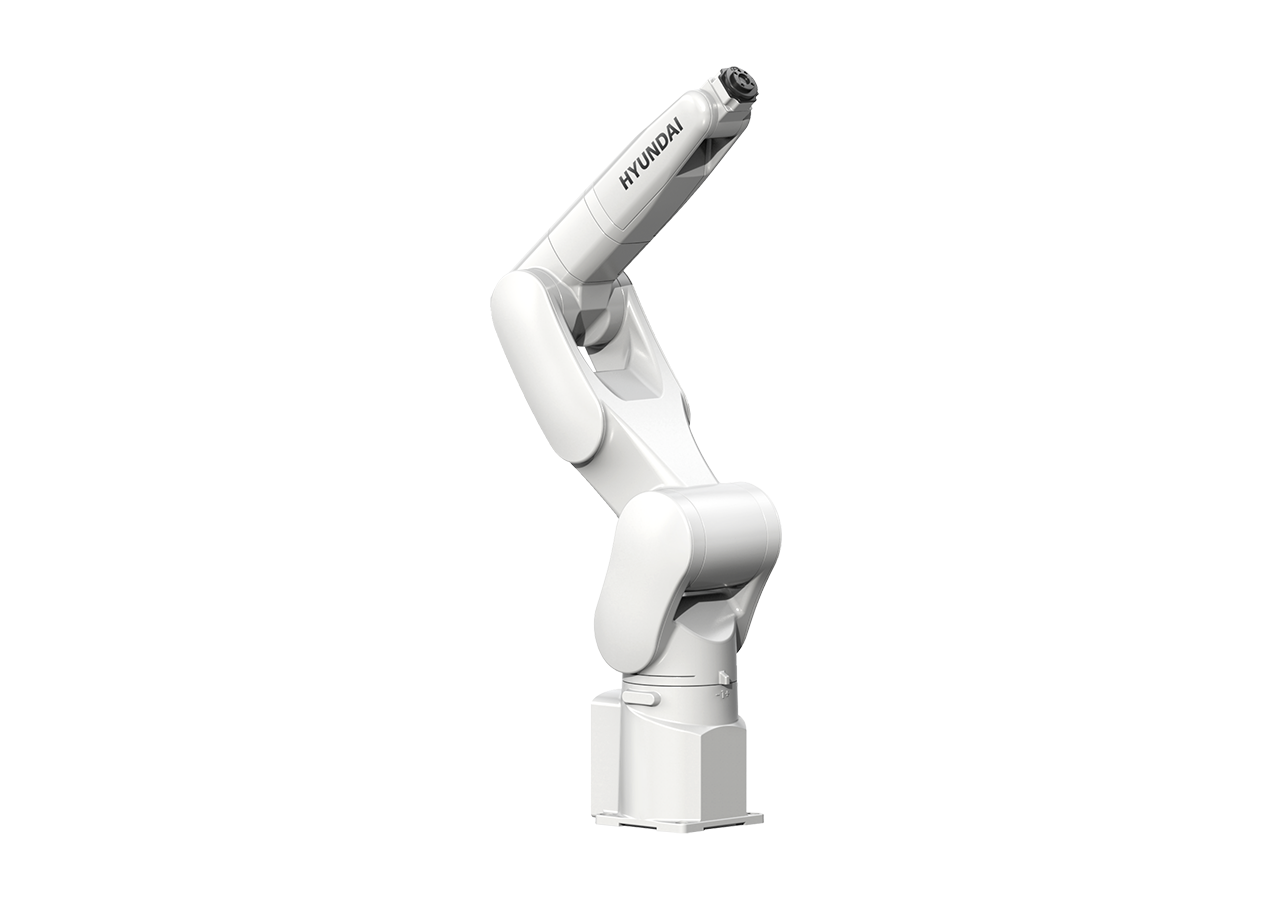

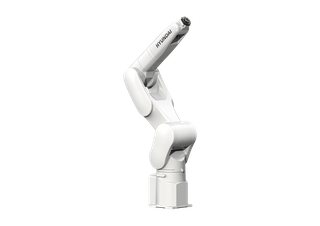

HDF7-9 is an HD Hyundai Robotics 6-axis industrial articulated robot. It has rated payload 7 kg and maximum reach 932 mm. Drive type: AC Servo. Compatible controllers: Hi7-N30, Hi6-T15, N20, Hi5a-T10, S20, S30. Previously designated HH7.
特長
- 6-axis articulated configuration
- Rated payload 7 kg
- Maximum reach 932 mm
- AC Servo drive
- Repeatability ±0.02 mm
- Manipulator mass 42 kg
- Compatible controllers: Hi7-N30, Hi6-T15, N20, Hi5a-T10, S20, S30
- OEM applications: material handling, assembly, machine tending
- Legacy designation: HH7
技術仕様
検証済み| 本体 | |
| 重量 | 42 kg |
|---|---|
| 可搬重量 | 7 kg |
| リーチ | 932 mm |
| 繰り返し精度 | ±0.02 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
技術仕様
検証済み| 本体 | |
| 重量 | 42 kg |
|---|---|
| 可搬重量 | 7 kg |
| リーチ | 932 mm |
| 繰り返し精度 | ±0.02 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
画像
martti
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the HDF7-9?
HDF7-9 is an HD Hyundai Robotics 6-axis industrial articulated robot. It has rated payload 7 kg and maximum reach 932 mm. Drive type: AC Servo. Compatible controllers: Hi7-N30, Hi6-T15, N20, Hi5a-T10, S20, S30. Previously designated HH7.
Who makes the HDF7-9?
The HDF7-9 is made by Hyundai Robotics, a robotics company based in South Korea.
How much does the HDF7-9 cost?
Hyundai Robotics has not publicly announced pricing for the HDF7-9. You can enquire through RobotAIGeek for current pricing.
What is the HDF7-9 used for?
The HDF7-9 is designed for 組立, マシンテンディング, マテリアルハンドリング, and 溶接. It is used in 自動車 and 製造 settings.
What is the payload capacity of the HDF7-9?
The HDF7-9 has a payload capacity of 7 kg and a reach of 932 mm.
How much does the HDF7-9 weigh?
The HDF7-9 weighs 42 kg.
How many degrees of freedom does the HDF7-9 have?
The HDF7-9 has 6 degrees of freedom.
