説明
CU1-600LはWesar IntelligenceのIndustrial-Robotです。 構内物流、マテリアルハンドリング向けに設計されています。 主な数値：701 kg、可搬質量 600 kg。

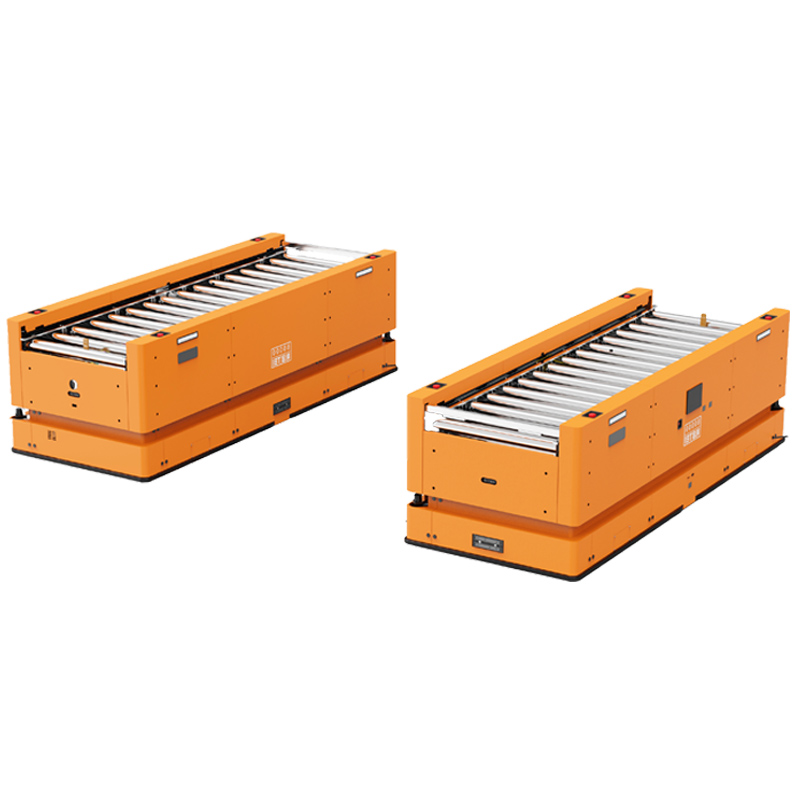

The CU1-600L is Wesar's single-roller CMR for 600 kg rated loads with omnidirectional driving. A 1400×1115×1230 mm body and L-SLAM / barcode navigation target heavier conveyor bridging between production cells.
特長
- Conveyor Mobile Robot (CMR)
- single roller
- omnidirectional
- rated load 600 kg.. Rated load (kg): 600. Weight (kg): 701. Dimension (L × W × H)(mm): 1400*1115*1230. Navigation mode: 2D barcode / L-SLAM. Driving direction: Omnidirectional driving. Rated running speed (empty) (mm/s): 1200. Run time (h): 6-8. Charging time (h): ≤ 2. Conveying type: Single roller. Human-machine interaction: Touchscreen. Safety: Bumper strip=Support
- Emergency stop button=Support
- Sound and light alarm=Support
技術仕様
検証済み| 本体 | |
| 重量 | 701 kg |
|---|---|
| 寸法 | L 1.4 m × W 1.11 m × H 1.23 m |
| 可搬重量 | 600 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 4.32 km/h |
技術仕様
検証済み| 本体 | |
| 重量 | 701 kg |
|---|---|
| 寸法 | L 1.4 m × W 1.11 m × H 1.23 m |
| 可搬重量 | 600 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 4.32 km/h |
画像
martti
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the CU1-600L?
The CU1-600L is Wesar's single-roller CMR for 600 kg rated loads with omnidirectional driving. A 1400×1115×1230 mm body and L-SLAM / barcode navigation target heavier conveyor bridging between production cells.
Who makes the CU1-600L?
The CU1-600L is made by Wesar Intelligence, a robotics company based in China.
How much does the CU1-600L cost?
Wesar Intelligence has not publicly announced pricing for the CU1-600L. You can enquire through RobotAIGeek for current pricing.
What is the CU1-600L used for?
The CU1-600L is designed for 構内物流 and マテリアルハンドリング. It is used in 倉庫・物流 and 製造 settings.
What is the payload capacity of the CU1-600L?
The CU1-600L has a payload capacity of 600 kg.
How much does the CU1-600L weigh?
The CU1-600L weighs 701 kg.
How fast is the CU1-600L?
The CU1-600L can move at speeds of up to 4.32 km/h.
