説明
CU1-400CはWesar IntelligenceのIndustrial-Robotです。 構内物流、マテリアルハンドリング向けに設計されています。 主な数値：550 kg、可搬質量 400 kg。

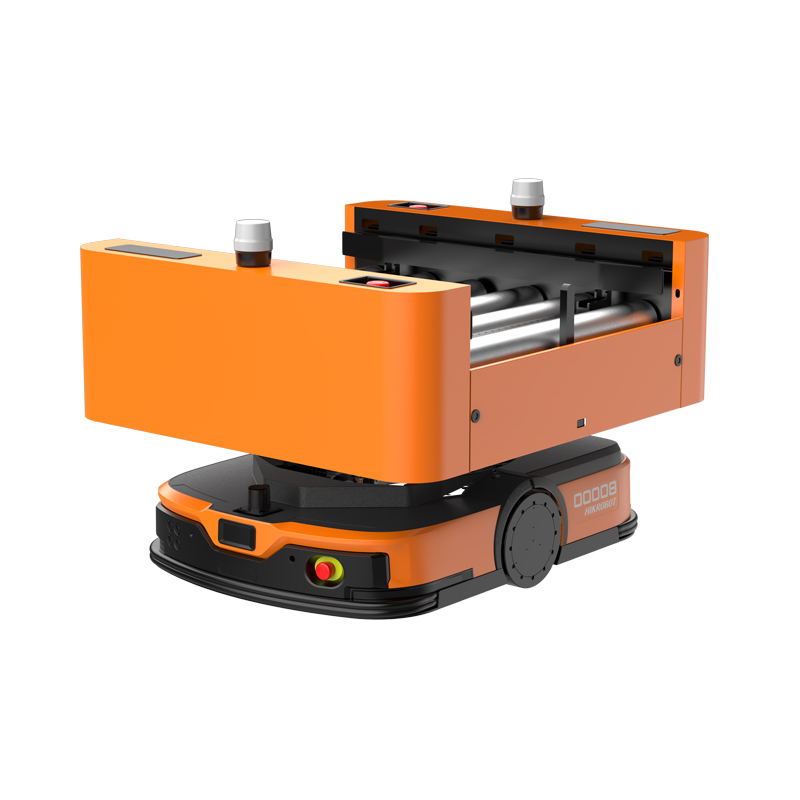

The CU1-400C is a compact Wesar single-roller CMR rated at 400 kg. Bi-directional driving and a low 700 mm overall height suit dense workstation conveyor exchanges.
特長
- Conveyor Mobile Robot (CMR)
- single roller
- rated load 400 kg.. Rated load (kg): 400. Weight (kg): 550. Dimension (L × W × H)(mm): 950*840*700. Navigation mode: 20 barcode/L-SLAM. Driving direction: Bi-directional driving. Rated running speed (empty) (mm/s): 1200. Run time (h): 6-8. Charging time (h): ≤ 1.5. Conveying type: Single roller. Human-machine interaction: Touchscreen. Safety: Bumper strip=Support
- Emergency stop button=Support
- Sound and light alarm=Support
技術仕様
検証済み| 本体 | |
| 重量 | 550 kg |
|---|---|
| 寸法 | L 950 mm × W 840 mm × H 700 mm |
| 可搬重量 | 400 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 4.32 km/h |
技術仕様
検証済み| 本体 | |
| 重量 | 550 kg |
|---|---|
| 寸法 | L 950 mm × W 840 mm × H 700 mm |
| 可搬重量 | 400 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 4.32 km/h |
画像
martti
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the CU1-400C?
The CU1-400C is a compact Wesar single-roller CMR rated at 400 kg. Bi-directional driving and a low 700 mm overall height suit dense workstation conveyor exchanges.
Who makes the CU1-400C?
The CU1-400C is made by Wesar Intelligence, a robotics company based in China.
How much does the CU1-400C cost?
Wesar Intelligence has not publicly announced pricing for the CU1-400C. You can enquire through RobotAIGeek for current pricing.
What is the CU1-400C used for?
The CU1-400C is designed for 構内物流 and マテリアルハンドリング. It is used in 倉庫・物流 and 製造 settings.
What is the payload capacity of the CU1-400C?
The CU1-400C has a payload capacity of 400 kg.
How much does the CU1-400C weigh?
The CU1-400C weighs 550 kg.
How fast is the CU1-400C?
The CU1-400C can move at speeds of up to 4.32 km/h.
