説明

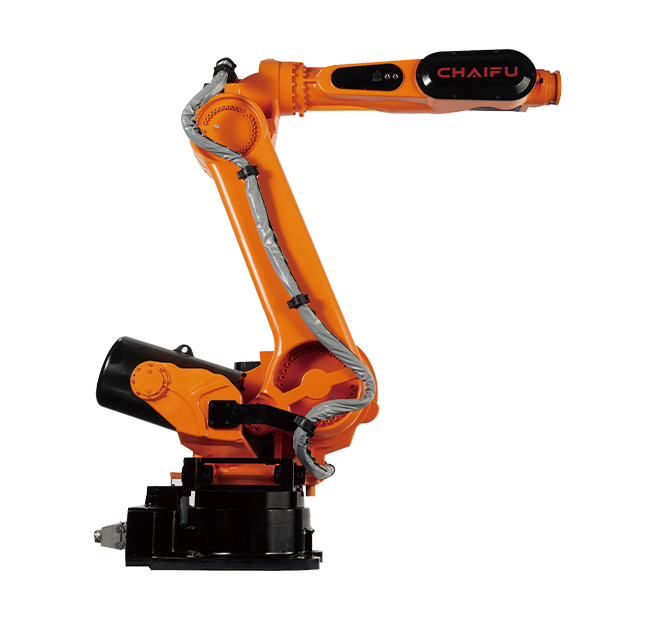

The SF210-K2650 is a 210 kg high-payload robot in CHAIFU's BIOTIC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 2650 mm. Repeatability is ±0.12mm and it is driven by ac servo motors, with IP 65 protection. A powerful servo system cuts machining times for high throughput, and BIOTIC can use vision tracking, force sensors and autonomous learning. CHAIFU builds the BIOTIC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for handling, palletising, submerged arc welding, picking and packaging, and assembly and distribution.
特長
- BIOTIC series high-payload robot
- Payload 210 kg
- Maximum reach 2650 mm
- 6 axes, vertically articulated
- Repeatability ±0.12mm
- Drive: AC Servo Motor
- Protection IP 65
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
技術仕様
検証済み| 本体 | |
| 可搬重量 | 210 kg |
|---|---|
| リーチ | 2.65 m |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | Industrial production environments; IP 65. |
| アクチュエーター | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
技術仕様
検証済み| 本体 | |
| 可搬重量 | 210 kg |
|---|---|
| リーチ | 2.65 m |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 使用環境 | Industrial production environments; IP 65. |
| アクチュエーター | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
画像
投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the CHAIFU SF210-K2650?
The SF210-K2650 is a 210 kg high-payload robot in CHAIFU's BIOTIC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 2650 mm. Repeatability is ±0.12mm and it is driven by ac servo motors, with IP 65 protection.
Who makes the CHAIFU SF210-K2650?
The CHAIFU SF210-K2650 is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF210-K2650 cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF210-K2650. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF210-K2650 used for?
The CHAIFU SF210-K2650 is designed for マテリアルハンドリング, パレタイジング, and 溶接. It is used in 倉庫・物流 and 製造 settings.
What is the payload capacity of the CHAIFU SF210-K2650?
The CHAIFU SF210-K2650 has a payload capacity of 210 kg and a reach of 2.65 m.
How many degrees of freedom does the CHAIFU SF210-K2650 have?
The CHAIFU SF210-K2650 has 6 degrees of freedom.
