説明

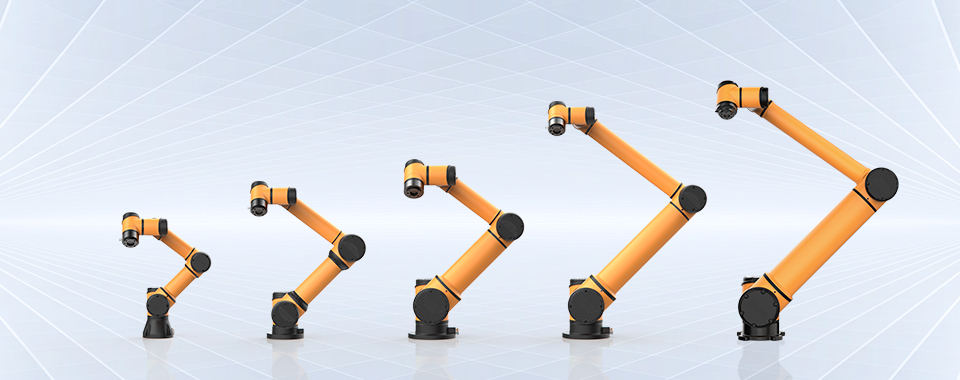

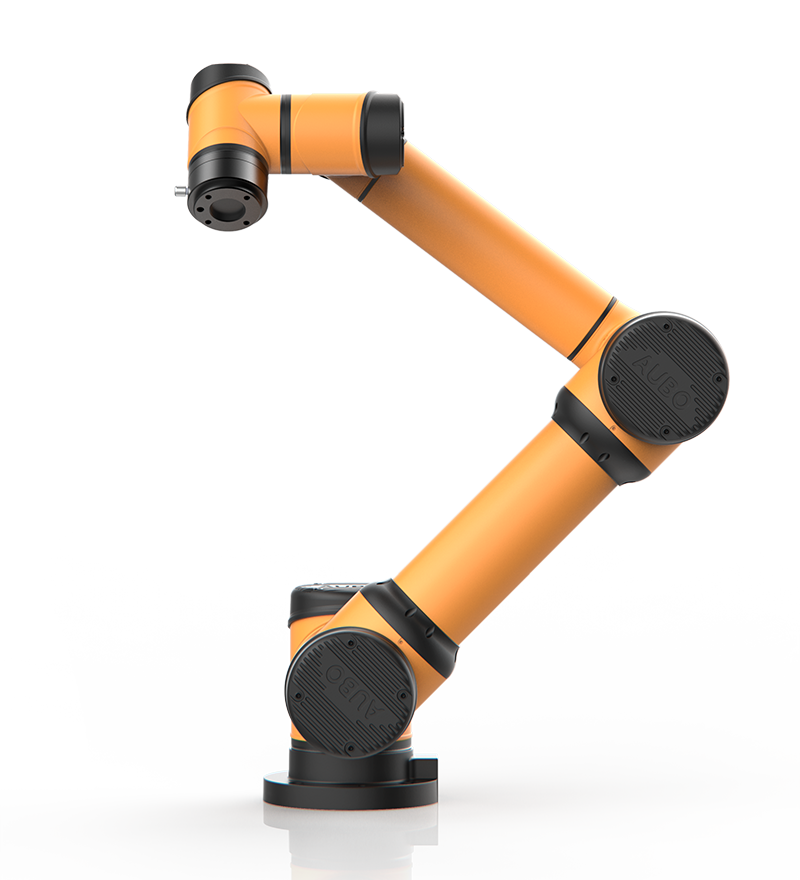

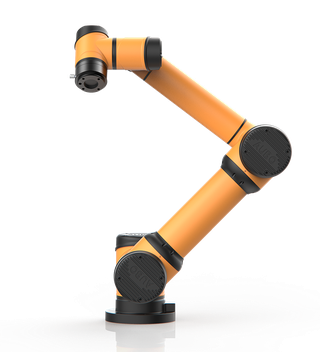

AUBO-i10 is a six-axis collaborative robot in AUBO's i Series — a long-reach model for machine tending and palletizing-style tasks. It offers a 10 kg payload, 1350 mm reach and ±0.03 mm repeatability in a 38.5 kg arm, and is designed for fenceless operation close to people, adapting to varied industrial applications through AUBO's configuration options and open software platform.
特長
- Six-axis collaborative arm
- 10 kg payload
- 1350 mm working radius
- ±0.03 mm repeatability
- 38.5 kg robot weight
- Fenceless human-robot collaboration
- Drag teaching, coordinate positioning, path planning and offline programming
- Open system platform with SDK and API for peripheral equipment integration
技術仕様
検証済み| 本体 | |
| 重量 | 38.5 kg |
|---|---|
| 可搬重量 | 10 kg |
| リーチ | 1.35 m |
| 繰り返し精度 | ±0.03 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 電源 | |
| バッテリー駆動時間 | 24 hours |
技術仕様
検証済み| 本体 | |
| 重量 | 38.5 kg |
|---|---|
| 可搬重量 | 10 kg |
| リーチ | 1.35 m |
| 繰り返し精度 | ±0.03 mm |
| 移動性能 | |
| 移動方式 | 固定型 |
| 自由度 | 6 |
| マニピュレーション | 高 |
| 電源 | |
| バッテリー駆動時間 | 24 hours |
画像
martti
martti
martti
martti
martti
martti
martti
martti投稿画像
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the AUBO-i10?
AUBO-i10 is a six-axis collaborative robot in AUBO's i Series — a long-reach model for machine tending and palletizing-style tasks.
Who makes the AUBO-i10?
The AUBO-i10 is made by AUBO Robotics, a robotics company based in China.
How much does the AUBO-i10 cost?
AUBO Robotics has not publicly announced pricing for the AUBO-i10. You can enquire through RobotAIGeek for current pricing.
What is the AUBO-i10 used for?
The AUBO-i10 is designed for 組立, ピック＆プレース, 研究, and 点検. It is used in 研究 and 製造 settings.
What is the payload capacity of the AUBO-i10?
The AUBO-i10 has a payload capacity of 10 kg and a reach of 1.35 m.
How much does the AUBO-i10 weigh?
The AUBO-i10 weighs 38.5 kg.
What is the battery life of the AUBO-i10?
The AUBO-i10 runs for 24 hours on a charge.
How many degrees of freedom does the AUBO-i10 have?
The AUBO-i10 has 6 degrees of freedom.
