ZS Robotics ZS-W650

Shanghai ZS Robotics Co., Ltd
AMRChinaChinaVeröffentlicht
ZS Robotics ZS-W650
Vergleichen
Quellen:
zsrobotics.com
Branchen:
Lager & LogistikFertigungEinzelhandel
Anwendungen:
MaterialhandhabungPalettierenTransport
Preis:
Nicht angekündigt

BESCHREIBUNG

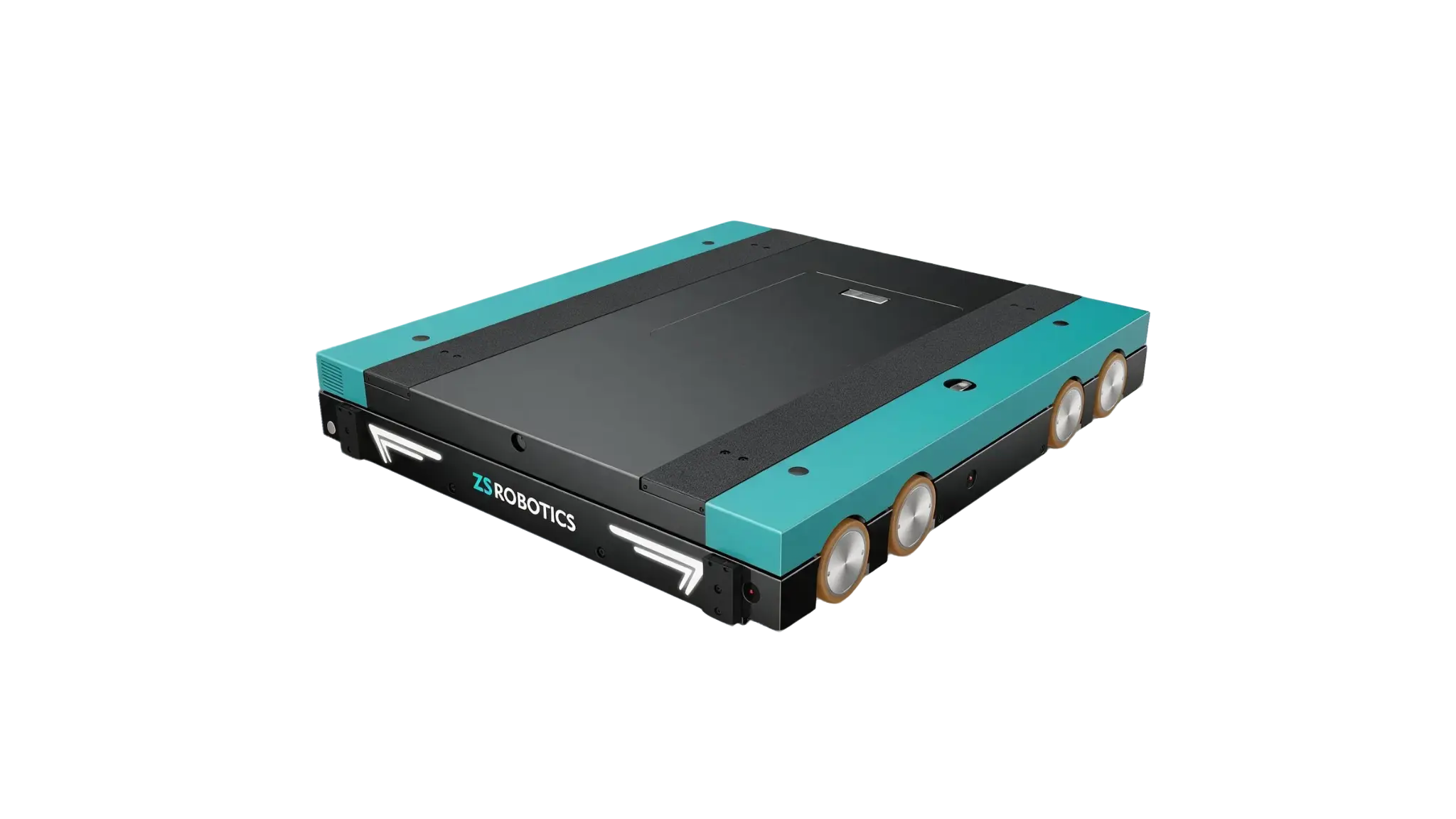

The ZS-W650 is a four-way pallet shuttle from ZS ROBOTICS, a battery-powered robot that runs inside pallet racking and travels in all four directions to store and retrieve pallets in high-density automated warehouses. It carries 300 kg, weighs 150 kg and measures 800 x 640 x 140 mm, travelling at up to 2.5 m/s, and is suited to small load applications. It runs on a 48V/15AH battery for 8 h of operation and is certified to CE, UL & CSA Certified standards. ZS ROBOTICS equips its shuttles with a 15-sensor safety system fusing 6 lidar and 4 time-of-flight sensors, dual positioning detection, and pallet detection that checks pallets front and rear, spots offset pallets and recognises hollow or incomplete loads. Its 20-wheel drive system, which the company calls an industry first, reduces rail stress by about 30%. The shuttle works with ZS ROBOTICS' lifts, conveyors and the ZSmart platform, which orchestrates movements across levels and aisles in a pallet AS/RS installation.

FUNKTIONEN

  • Four-way pallet shuttle (Small Load Applications)
  • Rated load 300 kg
  • Dimensions 800 x 640 x 140 mm
  • Shuttle weight 150 kg
  • Max travel speed 2.5 m/s
  • Battery 48V/15AH
  • Runtime 8 h
  • Certified: CE, UL & CSA Certified
  • 15-sensor safety system (6 lidar + 4 ToF fusion)
  • Dual positioning detection system
  • Front/rear, offset and presence pallet detection
  • 20-wheel drive: about 30% less rail stress
  • Works with ZS lifts, conveyors and the ZSmart platform
  • Compact Design

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht150 kg
AbmessungenL 800 mm × H 140 mm
Traglast300 kg
Mobilität
BewegungsartRadbasiert
Geschwindigkeit9 km/h
EinsatzumgebungInside pallet racking in automated warehouses; ZS-H125 rated -25 to 50 C.
Energie
Akkulaufzeit8 h
Sensorik & Rechenleistung
Sensoren6 x LiDAR, 4 x time-of-flight sensors, Pallet detection sensors, Dual positioning detection
Software / KIZSmart intelligent platform
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the ZS Robotics ZS-W650?

The ZS-W650 is a four-way pallet shuttle from ZS ROBOTICS, a battery-powered robot that runs inside pallet racking and travels in all four directions to store and retrieve pallets in high-density automated warehouses.

Who makes the ZS Robotics ZS-W650?

The ZS Robotics ZS-W650 is made by Shanghai ZS Robotics Co., Ltd, a robotics company based in China.

How much does the ZS Robotics ZS-W650 cost?

Shanghai ZS Robotics Co., Ltd has not publicly announced pricing for the ZS Robotics ZS-W650. You can enquire through RobotAIGeek for current pricing.

What is the ZS Robotics ZS-W650 used for?

The ZS Robotics ZS-W650 is designed for materialhandhabung, palettieren, and transport. It is used in lager & logistik, fertigung, and einzelhandel settings.

What is the payload capacity of the ZS Robotics ZS-W650?

The ZS Robotics ZS-W650 has a payload capacity of 300 kg.

How much does the ZS Robotics ZS-W650 weigh?

The ZS Robotics ZS-W650 weighs 150 kg.

How fast is the ZS Robotics ZS-W650?

The ZS Robotics ZS-W650 can move at speeds of up to 9 km/h.

What is the battery life of the ZS Robotics ZS-W650?

The ZS Robotics ZS-W650 runs for 8 h on a charge.
