ZS Robotics ZS-H125

Shanghai ZS Robotics Co., Ltd
AMRChinaChinaVeröffentlicht
ZS Robotics ZS-H125
Vergleichen
Quellen:
zsrobotics.com
Branchen:
Lager & LogistikFertigungEinzelhandel
Anwendungen:
MaterialhandhabungPalettierenTransport
Preis:
Nicht angekündigt

BESCHREIBUNG

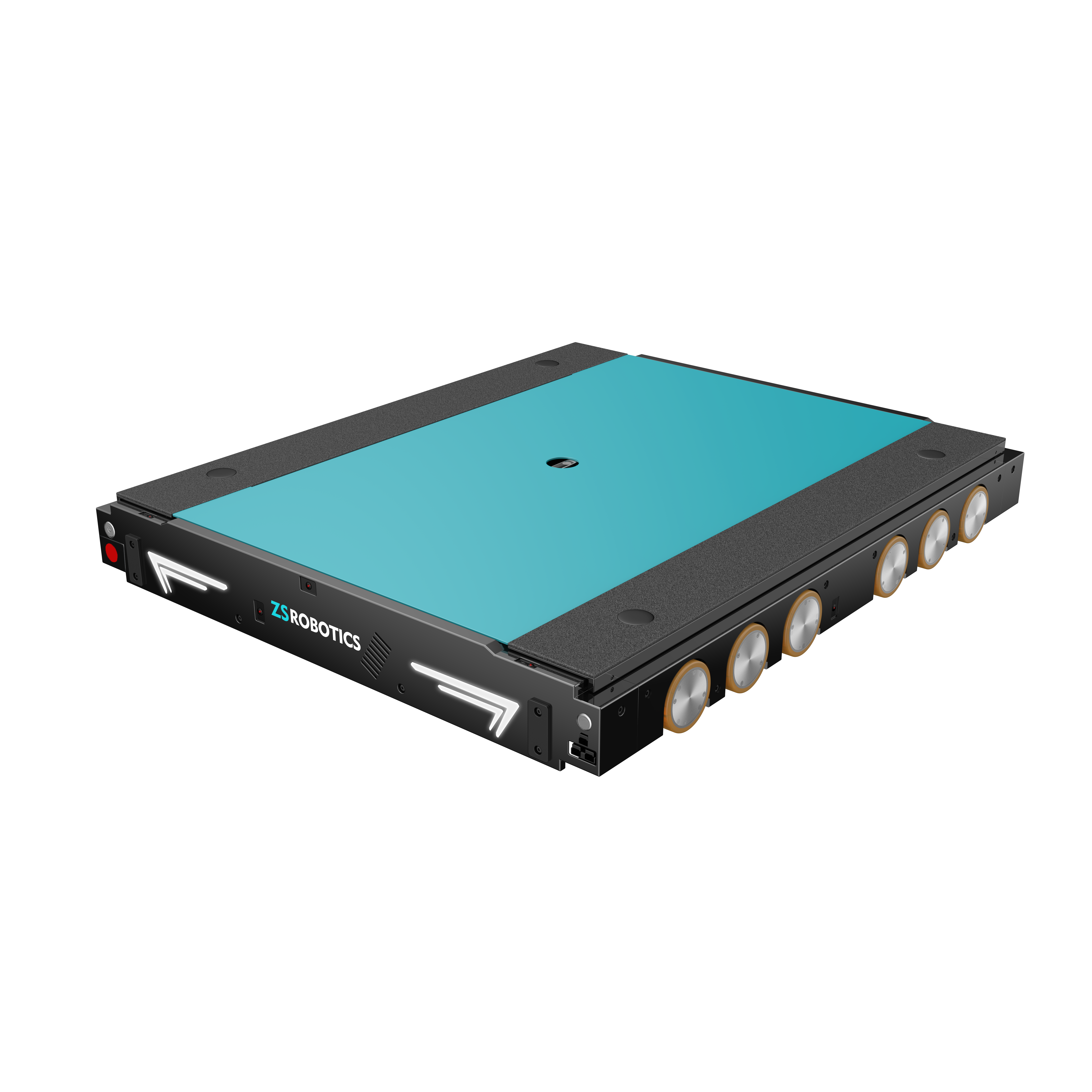

The ZS-H125 is a four-way pallet shuttle from ZS ROBOTICS, a battery-powered robot that runs inside pallet racking and travels in all four directions to store and retrieve pallets in high-density automated warehouses. It carries 1500 kg, weighs 310 kg and measures 1106 x 940 x 125mm, travelling at up to 1.5 m/s, and is suited to high-density storage. It runs on a 48V/50AH battery for 8–12 h of operation and is certified to CE, UL & CSA Certified standards. ZS ROBOTICS equips its shuttles with a 15-sensor safety system fusing 6 lidar and 4 time-of-flight sensors, dual positioning detection, and pallet detection that checks pallets front and rear, spots offset pallets and recognises hollow or incomplete loads. Its 20-wheel drive system, which the company calls an industry first, reduces rail stress by about 30%. The shuttle works with ZS ROBOTICS' lifts, conveyors and the ZSmart platform, which orchestrates movements across levels and aisles in a pallet AS/RS installation.

FUNKTIONEN

  • Four-way pallet shuttle (High-Density Storage)
  • Rated load 1500 kg
  • Dimensions 1106 x 940 x 125mm
  • Shuttle weight 310 kg
  • Max travel speed 1.5 m/s
  • Battery 48V/50AH
  • Runtime 8–12 h
  • Certified: CE, UL & CSA Certified
  • 15-sensor safety system (6 lidar + 4 ToF fusion)
  • Dual positioning detection system
  • Front/rear, offset and presence pallet detection
  • 20-wheel drive: about 30% less rail stress
  • Works with ZS lifts, conveyors and the ZSmart platform
  • Up to 1500kg Payload Capacity
  • 125mm Ultra-Thin Design
  • 1.5m/s Max Travel Speed
  • Up to 10 Hours Runtime
  • 50Ah High-Capacity Battery
  • Operates at -25°C to 50°C

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht310 kg
AbmessungenL 1.11 m × H 125 mm
Traglast1500 kg
Mobilität
BewegungsartRadbasiert
Geschwindigkeit5.4 km/h
EinsatzumgebungInside pallet racking in automated warehouses; ZS-H125 rated -25 to 50 C.
Energie
Akkulaufzeit8–12 h
Sensorik & Rechenleistung
Sensoren6 x LiDAR, 4 x time-of-flight sensors, Pallet detection sensors, Dual positioning detection
Software / KIZSmart intelligent platform
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the ZS Robotics ZS-H125?

The ZS-H125 is a four-way pallet shuttle from ZS ROBOTICS, a battery-powered robot that runs inside pallet racking and travels in all four directions to store and retrieve pallets in high-density automated warehouses.

Who makes the ZS Robotics ZS-H125?

The ZS Robotics ZS-H125 is made by Shanghai ZS Robotics Co., Ltd, a robotics company based in China.

How much does the ZS Robotics ZS-H125 cost?

Shanghai ZS Robotics Co., Ltd has not publicly announced pricing for the ZS Robotics ZS-H125. You can enquire through RobotAIGeek for current pricing.

What is the ZS Robotics ZS-H125 used for?

The ZS Robotics ZS-H125 is designed for materialhandhabung, palettieren, and transport. It is used in lager & logistik, fertigung, and einzelhandel settings.

What is the payload capacity of the ZS Robotics ZS-H125?

The ZS Robotics ZS-H125 has a payload capacity of 1,500 kg.

How much does the ZS Robotics ZS-H125 weigh?

The ZS Robotics ZS-H125 weighs 310 kg.

How fast is the ZS Robotics ZS-H125?

The ZS Robotics ZS-H125 can move at speeds of up to 5.4 km/h.

What is the battery life of the ZS Robotics ZS-H125?

The ZS Robotics ZS-H125 runs for 8–12 h on a charge.
