BESCHREIBUNG

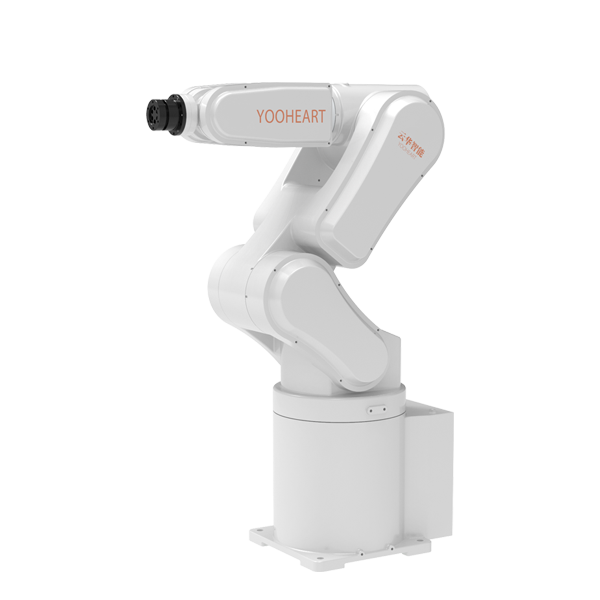

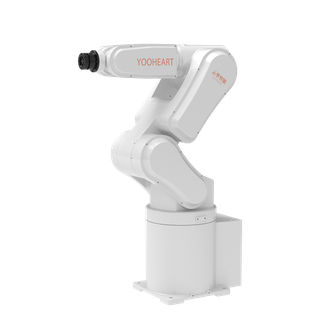

The HY1005A-085 is the smallest arm in Yooheart's handling range: a compact 6-axis robot carrying 5 kg over an 850 mm reach. Its mechanical structure is deliberately simple, which is what lets it fit machine-tending cells where a larger arm would not physically go. Yooheart pitches it on running speed and repeat positioning accuracy rather than capacity, and lists it across palletising, handling, loading and unloading, spraying and polishing — the light, fast, repetitive work that surrounds CNC machines.
FUNKTIONEN
- Compact 6-axis handling robot, the smallest in Yooheart's handling range
- 5 kg payload
- 850 mm reach
- ±0.03 mm repeatability
- 60 kg robot weight
- Simple, compact mechanical structure
- High running speed
- Ground, wall or ceiling installation
- IP65 protection
- Palletising, handling, loading/unloading, spraying and polishing
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 60 kg |
|---|---|
| Traglast | 5 kg |
| Reichweite | 850 mm |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | IP65 |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 60 kg |
|---|---|
| Traglast | 5 kg |
| Reichweite | 850 mm |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | IP65 |
Bilder
martti
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Yooheart HY1005A-085?
The HY1005A-085 is the smallest arm in Yooheart's handling range: a compact 6-axis robot carrying 5 kg over an 850 mm reach. Its mechanical structure is deliberately simple, which is what lets it fit machine-tending cells where a larger arm would not physically go.
Who makes the Yooheart HY1005A-085?
The Yooheart HY1005A-085 is made by Yooheart, a robotics company based in China.
How much does the Yooheart HY1005A-085 cost?
Yooheart has not publicly announced pricing for the Yooheart HY1005A-085. You can enquire through RobotAIGeek for current pricing.
What is the Yooheart HY1005A-085 used for?
The Yooheart HY1005A-085 is designed for beladen, maschinenbeschickung, materialhandhabung, and entladen. It is used in fertigung settings.
What is the payload capacity of the Yooheart HY1005A-085?
The Yooheart HY1005A-085 has a payload capacity of 5 kg and a reach of 850 mm.
How much does the Yooheart HY1005A-085 weigh?
The Yooheart HY1005A-085 weighs 60 kg.
How many degrees of freedom does the Yooheart HY1005A-085 have?
The Yooheart HY1005A-085 has 6 degrees of freedom.
