BESCHREIBUNG

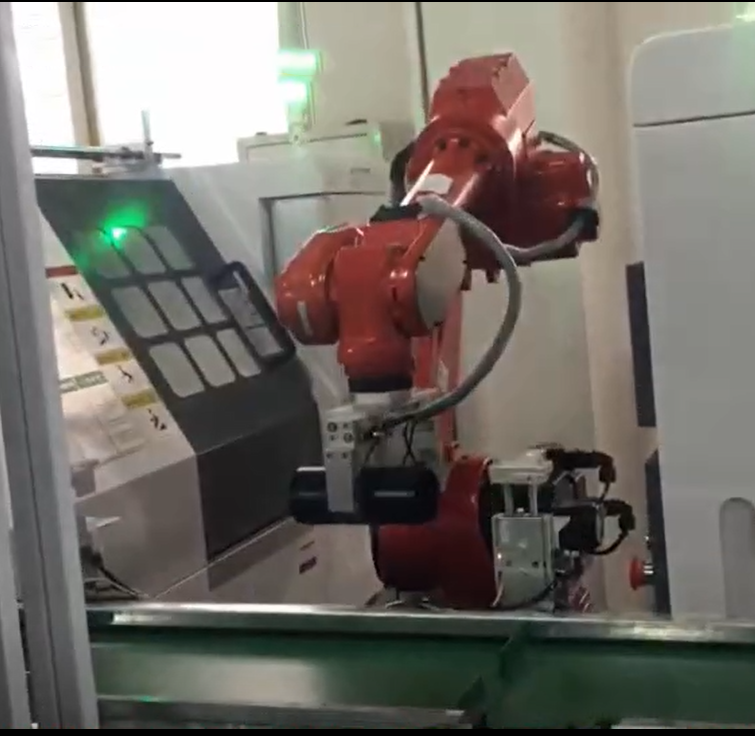

Introduction As one of the fastest, compact and flexible stamping robot, HY 1003A-098 can meet a lot application with a little long arm reach but small weight. It will be always used for very small parts. You can connect with stamping machine through signals exchange which can fully synergy with ...
FUNKTIONEN
- 6-axis stamping robot for press machines
- 3 kg maximum payload
- 63 kg robot weight
- ±0.03 mm repeatability
- 1.6 KVA power capacity
- IP65 protection
- Ground, wall or ceiling installation
- J1 ±170°, J6 ±360° motion range
- J6 maximum speed 210°/s
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 63 kg |
|---|---|
| Traglast | 3 kg |
| Reichweite | 980 mm |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 63 kg |
|---|---|
| Traglast | 3 kg |
| Reichweite | 980 mm |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
martti
martti
marttiBildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN

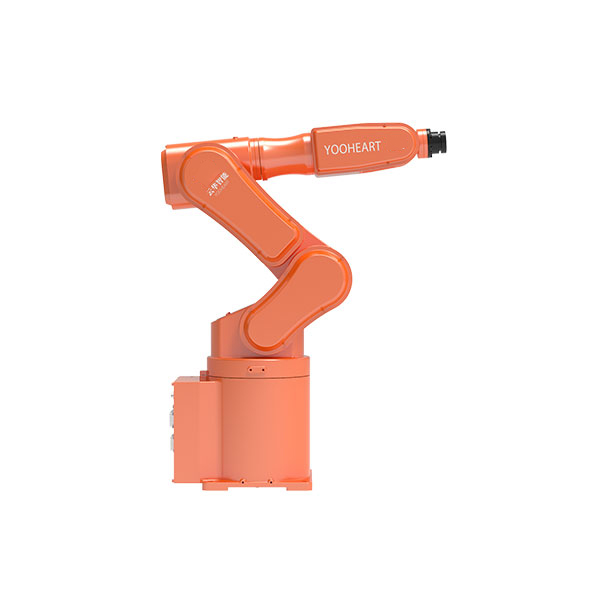

What is the Yooheart HY1003A-098?
Introduction As one of the fastest, compact and flexible stamping robot, HY 1003A-098 can meet a lot application with a little long arm reach but small weight. It will be always used for very small parts. You can connect with stamping machine through signals exchange which can fully synergy with ...
Who makes the Yooheart HY1003A-098?
The Yooheart HY1003A-098 is made by Yooheart, a robotics company based in China.
How much does the Yooheart HY1003A-098 cost?
Yooheart has not publicly announced pricing for the Yooheart HY1003A-098. You can enquire through RobotAIGeek for current pricing.
What is the Yooheart HY1003A-098 used for?
The Yooheart HY1003A-098 is designed for pick-and-place. It is used in fertigung settings.
What is the payload capacity of the Yooheart HY1003A-098?
The Yooheart HY1003A-098 has a payload capacity of 3 kg and a reach of 980 mm.
How much does the Yooheart HY1003A-098 weigh?
The Yooheart HY1003A-098 weighs 63 kg.
How many degrees of freedom does the Yooheart HY1003A-098 have?
The Yooheart HY1003A-098 has 6 degrees of freedom.
