BESCHREIBUNG

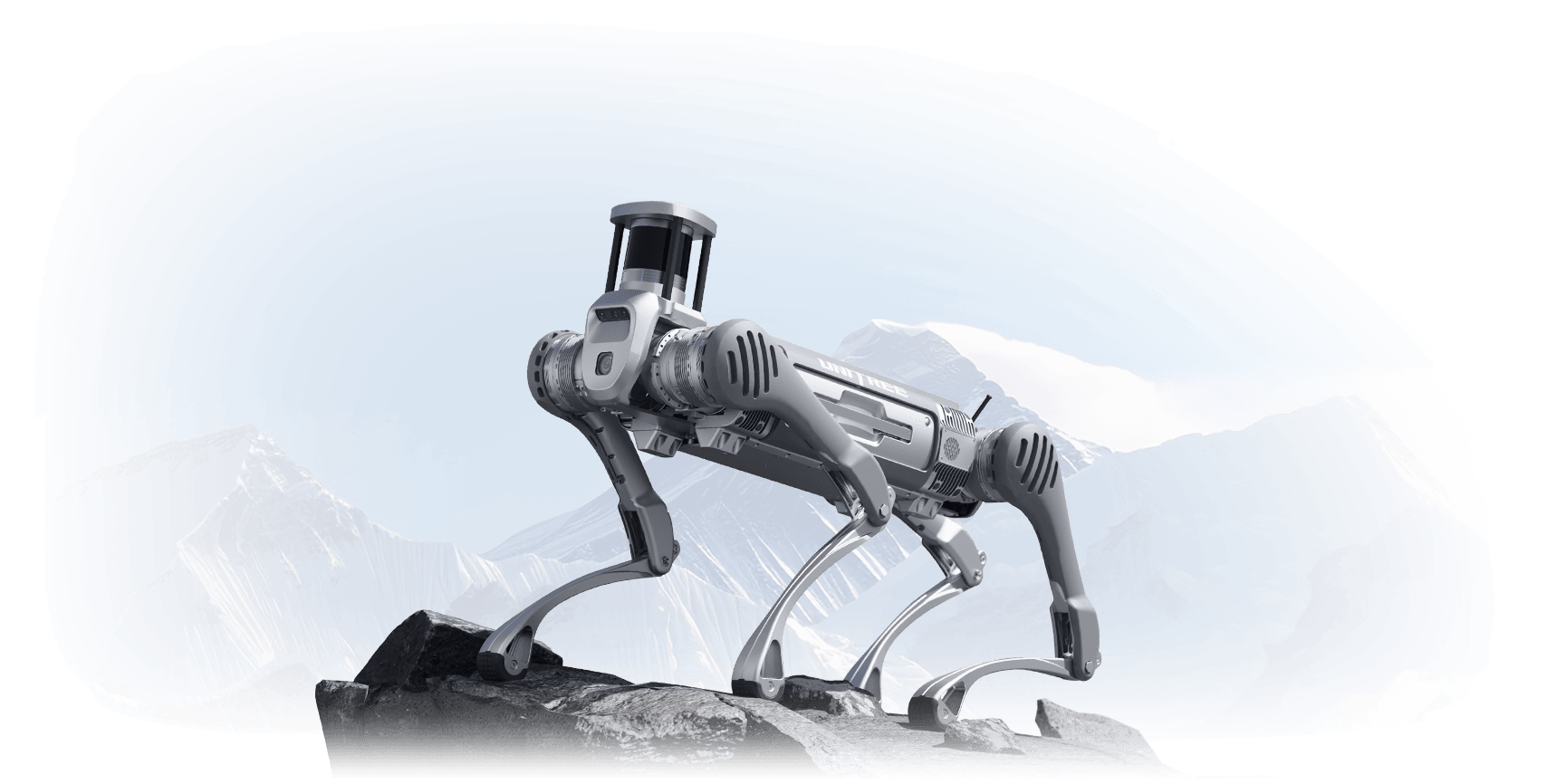

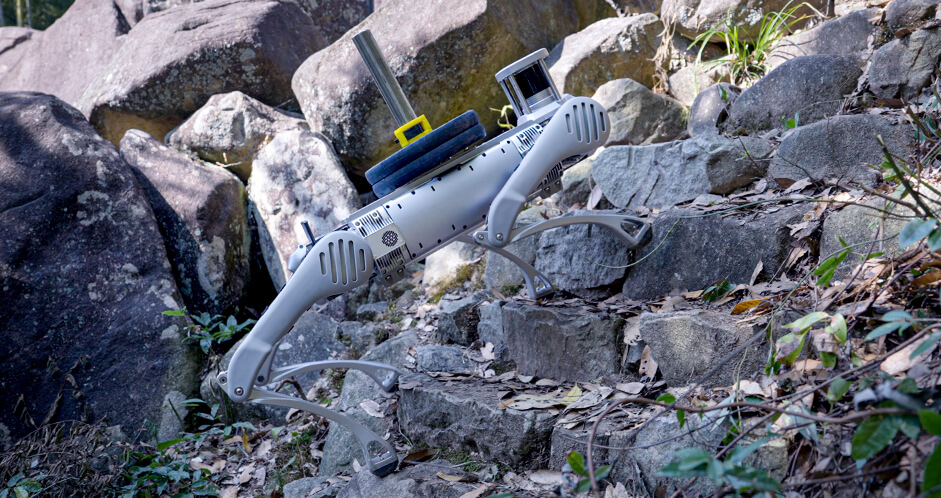

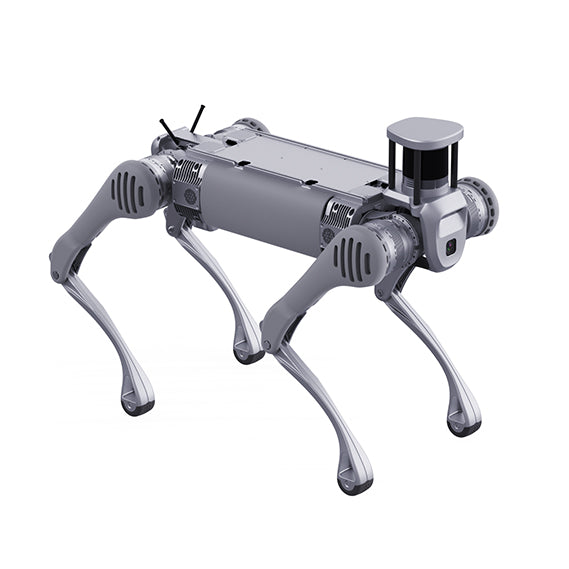

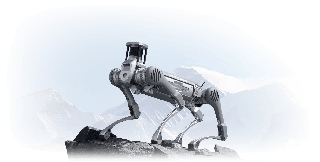

Unitree B2 ist ein Quadruped von Unitree Robotics. Er ist für Erkundung, Inspektion, Patrouille ausgelegt. Eckdaten: 60 kg, 40 kg Traglast, erschienen 2023.

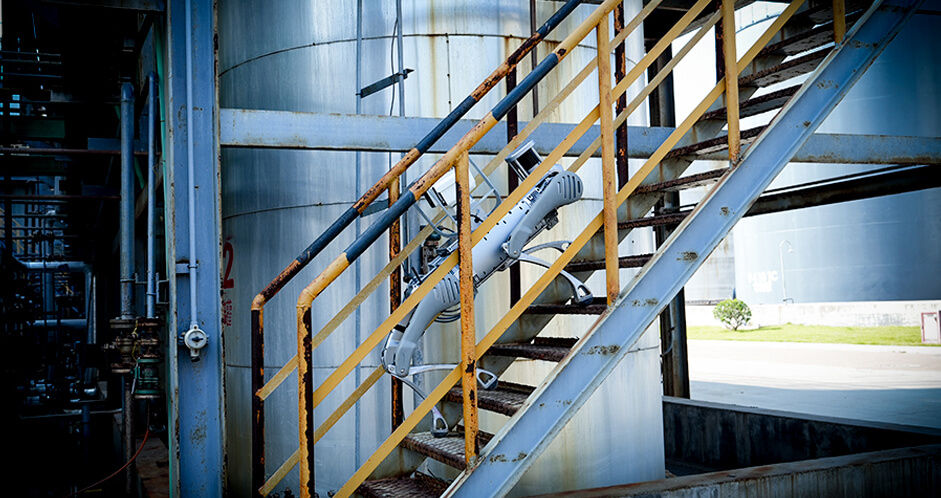

Unitree B2 is an industrial-grade quadruped for inspection and outdoor work, with IP67 protection, high payload, multi-hour endurance, and optional wheeled-foot configurations.
FUNKTIONEN
- Industrial quadruped
- standing size ≈1098×450×645 mm
- Total weight ≈60 kg including battery
- Standing load ≥120 kg
- continuous walking load >40 kg
- Max running speed >6 m/s (special configs
- speed-limited in practice)
- Battery 45 Ah (2250 Wh) / 58 V
- endurance typically 4–6 h
- IP67 ingress protection
- operating −20°C to 55°C

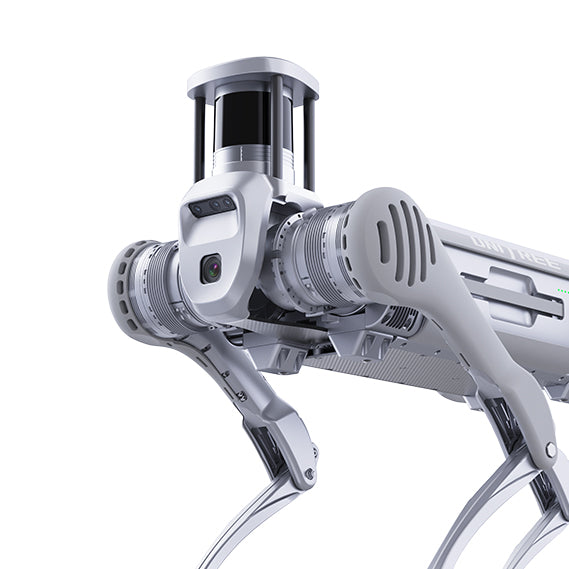

- Sensing: 3D LiDAR + depth/optical cameras (config-dependent)

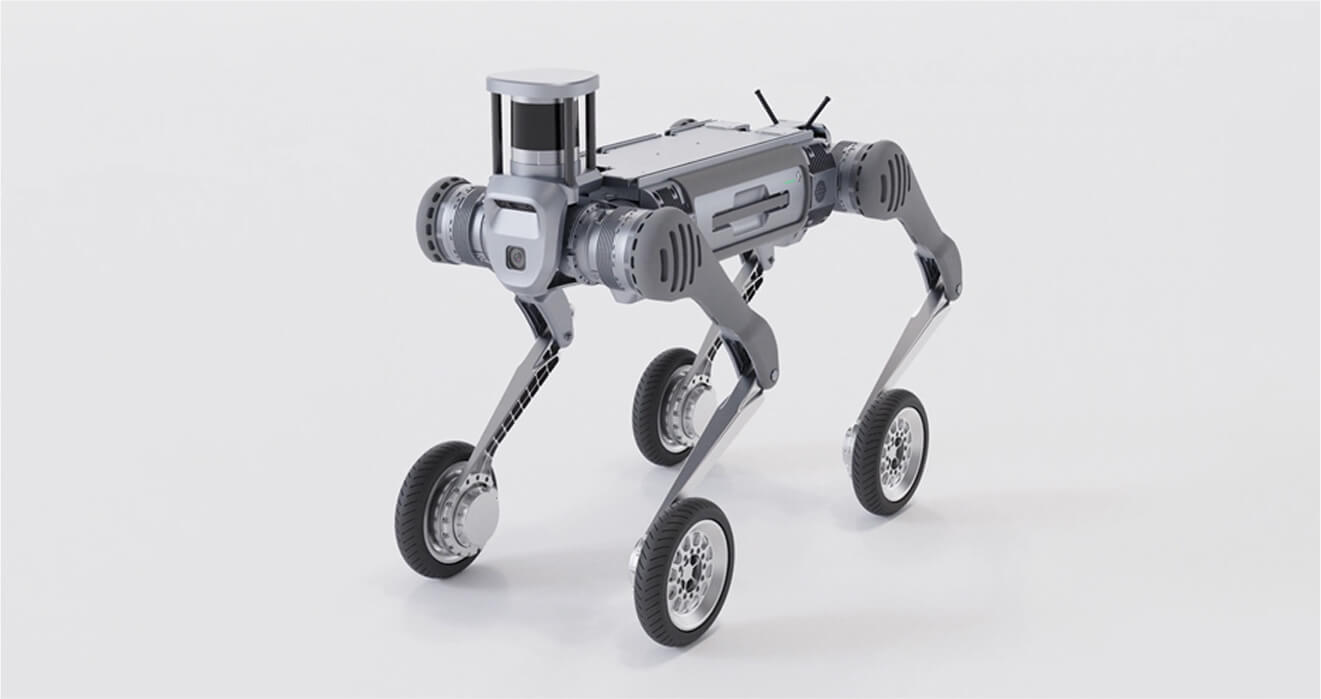

- Optional wheeled-foot and autonomous charging
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 27 kg |
|---|---|
| Abmessungen | H 700 mm |
| Traglast | 40 kg |
| Materialien | Rugged industrial materials |
| Mobilität | |
| Bewegungsart | Vierbeiner |
| Geschwindigkeit | 21.6 km/h |
| Energie | |
| Akkulaufzeit | 4-6h |
| Ladeart | Battery |
| Ladezeit | ~2–3 hours |
| Sensorik & Rechenleistung | |
| Sensoren | LiDAR, depth cameras |
| Konnektivität | Wi-Fi |
| Software / KI | Unitree robotics stack |
Videos
ROBOTER-FOREN
Foren werden geladen...
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 27 kg |
|---|---|
| Abmessungen | H 700 mm |
| Traglast | 40 kg |
| Materialien | Rugged industrial materials |
| Mobilität | |
| Bewegungsart | Vierbeiner |
| Geschwindigkeit | 21.6 km/h |
| Energie | |
| Akkulaufzeit | 4-6h |
| Ladeart | Battery |
| Ladezeit | ~2–3 hours |
| Sensorik & Rechenleistung | |
| Sensoren | LiDAR, depth cameras |
| Konnektivität | Wi-Fi |
| Software / KI | Unitree robotics stack |
Bilder






Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Unitree B2?
Unitree B2 is an industrial-grade quadruped for inspection and outdoor work, with IP67 protection, high payload, multi-hour endurance, and optional wheeled-foot configurations.
Who makes the Unitree B2?
The Unitree B2 is made by Unitree Robotics, a robotics company based in China.
How much does the Unitree B2 cost?
Unitree Robotics has not publicly announced pricing for the Unitree B2. You can enquire through RobotAIGeek for current pricing.
What is the Unitree B2 used for?
The Unitree B2 is designed for erkundung, inspektion, and patrouille. It is used in verteidigung, fertigung, and sicherheit & patrouille settings.
What is the payload capacity of the Unitree B2?
The Unitree B2 has a payload capacity of 40 kg.
How much does the Unitree B2 weigh?
The Unitree B2 weighs 60 kg.
How fast is the Unitree B2?
The Unitree B2 can move at speeds of up to 21.6 km/h.
What is the battery life of the Unitree B2?
The Unitree B2 runs for 4-6h on a charge. It takes ~2–3 hours to charge.
