BESCHREIBUNG

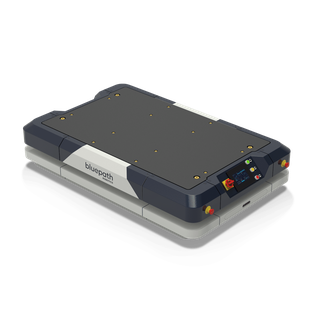

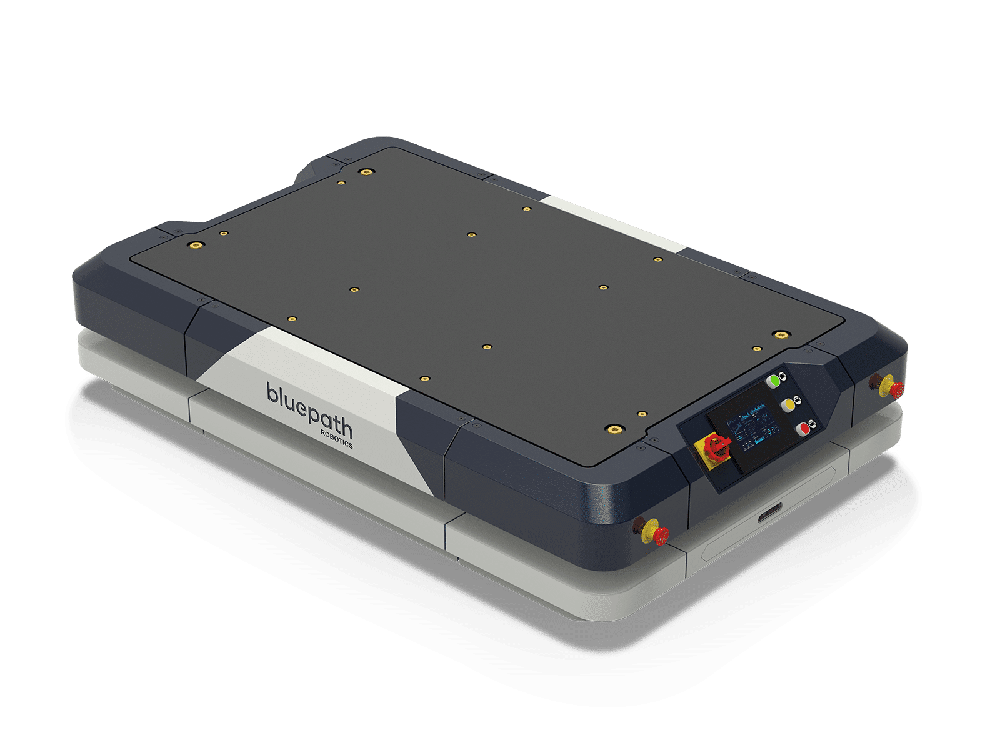

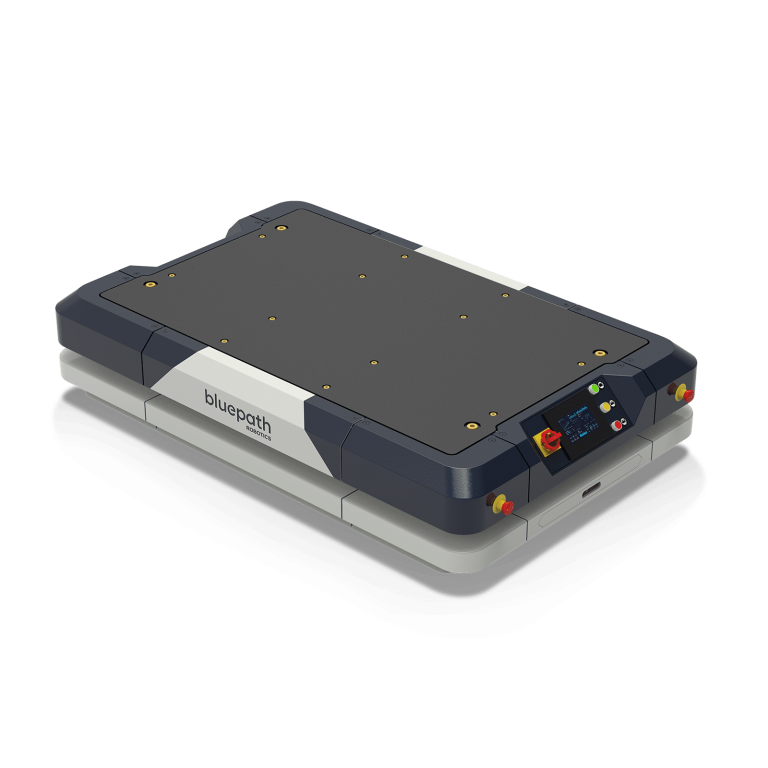

The Underdrive Differential is a 2,000 kg-capacity autonomous mobile robot from Bluepath Robotics of Istanbul, Turkey, built to move pallets and carts between production and warehouse areas. Its low-profile 1,690 x 1,195 x 375 mm chassis drives underneath a load, lifts it and carries it at up to 1.5 m/s, so no conveyor or operator handover is needed. Differential drive with natural SLAM navigation gives +/-10 mm docking accuracy without floor magnets or reflectors, and the robot is VDA 5050 compatible so it can be scheduled alongside other vendors' fleets from Bluepath's All-in-One Fleet Manager. Source: https://bluepathrobotics.com/product/underdrive-differential/
FUNKTIONEN
- 2,000 kg payload with an underdrive lift for pallets and carts
- Low-profile 1,690 x 1,195 x 375 mm chassis drives beneath the load
- Differential drive at up to 1.5 m/s with +/-10 mm docking accuracy
- Natural SLAM navigation — no floor magnets, reflectors or line tape required
- 3D object detection, dynamic map update and safe remote on/off
- VDA 5050 compatible
- scheduled from the Bluepath All-in-One Fleet Manager
- WMS/ERP integration and PLC/IoT interaction with smart charging scheduling
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Abmessungen | L 1.69 m × W 1.2 m × H 375 mm |
|---|---|
| Traglast | 2000 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 5.4 km/h |
| Einsatzumgebung | Indoor factory and warehouse floors shared with people and vehicles |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Abmessungen | L 1.69 m × W 1.2 m × H 375 mm |
|---|---|
| Traglast | 2000 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 5.4 km/h |
| Einsatzumgebung | Indoor factory and warehouse floors shared with people and vehicles |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
Bilder
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Underdrive Differential?
The Underdrive Differential is a 2,000 kg-capacity autonomous mobile robot from Bluepath Robotics of Istanbul, Turkey, built to move pallets and carts between production and warehouse areas.
Who makes the Underdrive Differential?
The Underdrive Differential is made by Bluepath Robotics, a robotics company based in Turkey.
How much does the Underdrive Differential cost?
Bluepath Robotics has not publicly announced pricing for the Underdrive Differential. You can enquire through RobotAIGeek for current pricing.
What is the Underdrive Differential used for?
The Underdrive Differential is designed for kommissionierung and transport. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the Underdrive Differential?
The Underdrive Differential has a payload capacity of 2,000 kg.
How fast is the Underdrive Differential?
The Underdrive Differential can move at speeds of up to 5.4 km/h.
When was the Underdrive Differential released?
The Underdrive Differential was released in 2024.
