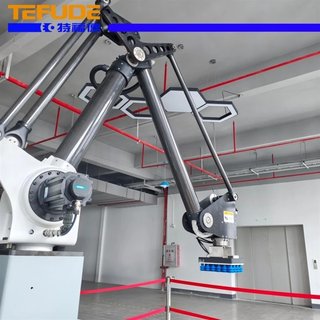

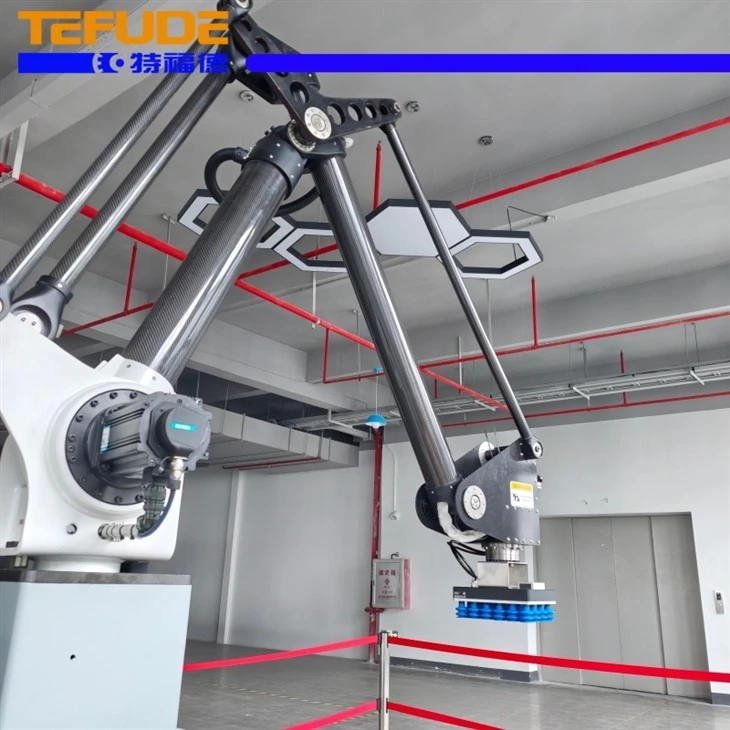

TFD-RP4-2200-50
BESCHREIBUNG
TFD-RP4-2200-50 is the 50 kg-payload variant of Tefude's TFD-RP4-2200 4-axis palletizing robot with a 2200 mm working radius for heavier cartons, bags, and cases.
FUNKTIONEN
- 50 kg max payload
- R2200 mm working radius
- 1800–2200 mm pick/place height
- ±0.1 mm XYZ repeatability
- 6–15 cycles/min
- 175 kg machine mass
- floor mounting
- IP54
- AC380 / 8.7 kW
- carbon-fiber arm options.
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 175 kg |
|---|---|
| Traglast | 50 kg |
| Reichweite | 2.2 m |
| Wiederholgenauigkeit | ±0.1 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 4 |
| Manipulation | Hoch |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 175 kg |
|---|---|
| Traglast | 50 kg |
| Reichweite | 2.2 m |
| Wiederholgenauigkeit | ±0.1 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 4 |
| Manipulation | Hoch |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the TFD-RP4-2200-50?
TFD-RP4-2200-50 is the 50 kg-payload variant of Tefude's TFD-RP4-2200 4-axis palletizing robot with a 2200 mm working radius for heavier cartons, bags, and cases.
Who makes the TFD-RP4-2200-50?
The TFD-RP4-2200-50 is made by Foshan Tefude Automation Co., Ltd., a robotics company based in China.
How much does the TFD-RP4-2200-50 cost?
Foshan Tefude Automation Co., Ltd. has not publicly announced pricing for the TFD-RP4-2200-50. You can enquire through RobotAIGeek for current pricing.
What is the TFD-RP4-2200-50 used for?
The TFD-RP4-2200-50 is designed for montage, palettieren, stapeln, and abstandseinstellung. It is used in fertigung settings.
What is the payload capacity of the TFD-RP4-2200-50?
The TFD-RP4-2200-50 has a payload capacity of 50 kg and a reach of 2.2 m.
How much does the TFD-RP4-2200-50 weigh?
The TFD-RP4-2200-50 weighs 175 kg.
How many degrees of freedom does the TFD-RP4-2200-50 have?
The TFD-RP4-2200-50 has 4 degrees of freedom.
